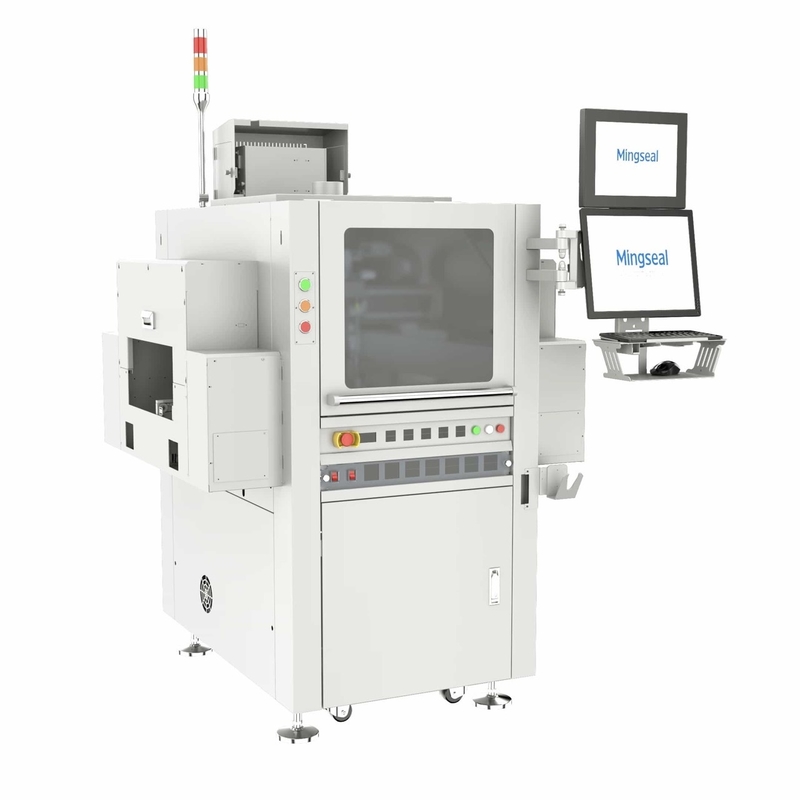

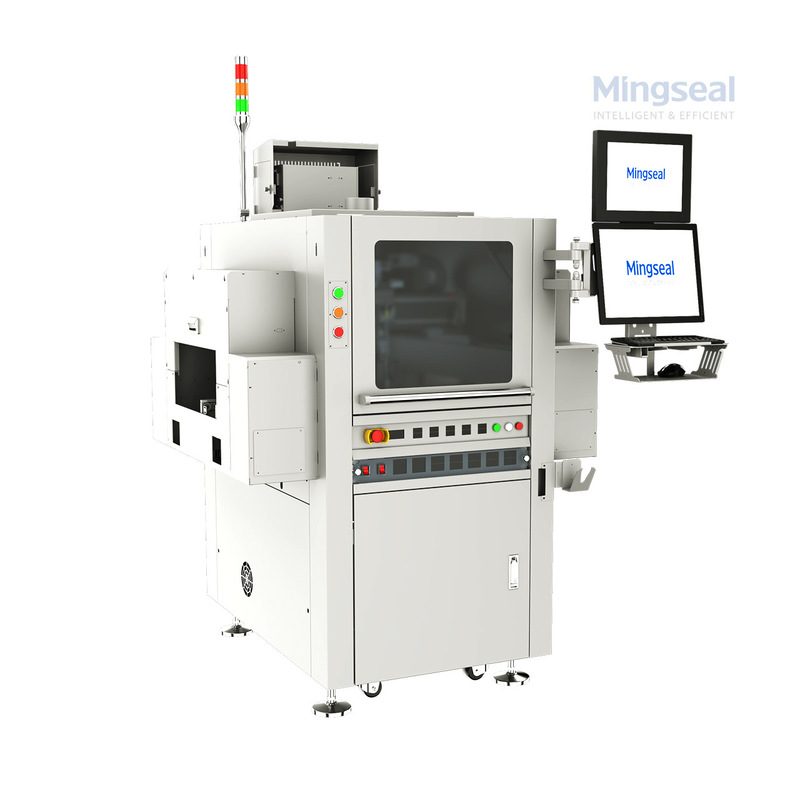

High-Precision Flux Spraying Dispenser for Indium Sheet Processes
The GS600 series is an advanced, high-speed inline flux spraying and jetting system engineered for FCBGA encapsulation and indium sheet mounting processes in cutting-edge semiconductor manufacturing.
Built to meet the strictest standards for precision, stability, and cleanliness, the GS600 series combines a grating ruler positioning system with a high-performance linear motor drive. This integration delivers micron-level accuracy, even at high operating speeds, ensuring that each droplet of flux is deposited exactly where it’s needed — and with perfect uniformity.
The GS600 series produces a flux spray thickness as thin as 5μm with zero spattering or overspray, which is critical for sensitive indium sheet bonding. The system’s automatic glue weight calibration continuously monitors the flux volume dispensed and triggers alarms for deviations, protecting batches from glue shortage or inconsistency.
Core Advantages
Typical Applications
✓ Flux spraying for indium sheet pre/post mounting
✓ FCBGA encapsulation
✓ EMI shielding and conductive coatings
✓ Precision flux jetting for advanced PCB and DB processes
Technical Specifications
| Cleanliness Level | Cleanliness of working area | Class 100 |
| Motion System | Max. Dispensing Range (X*Y) | 325*160mm |
| Repeatability (3sigma) | X/Y ≤ ±3 μ m Z ≤ ±5 μm | |
| Positioning Accuracy (3sigma) | X/Y ≤ ±10 μ m Z ≤ ±15 μm | |
| Max. Speed | X/Y:1000mm/s Z: 500mm/s | |
| Max. Acceleration | X/Y:1g, Z:0.5g | |
| Track System | Track Form | Single-track conveying, 3-segment lifting, mid-section operational-lifting mode |
| Track Parallelism | <0.1mm (max-min width variation) | |
| Height Adjustment Range | 890-960mm | |
| Width Adjustment Range | 60-160mm | |
| Max. Convey Speed | 300mm/s | |
| Max. Carrier Plate Thickness | 6mm | |
| Max. Carrier Load | 3kg | |
| Lifting Method | Track-lifting (fixture remains stationary) | |
| Max. Boat-length Supported | 325mm | |
| Track Suction Capacity | Cover ±2mm warping of substrates | |
| Heated Bottom-plate | Contact-type Heating (Room temperature -150℃), with Vacuum Suction | |
| Max. Vacuum Suction Pressure | -70KPa - -40KPa | |
| General Condition | Dimension (W*D*H) | 1401*1200*2112mm |
| Environmental Temperature | 23±5℃ | |
| Environmental Humidity | 30-70% |
Q&A
Q1: What makes the GS600 series better for indium sheet flux spraying?
A: Its atomization system ensures flux is applied evenly with a fine 5μm layer, eliminating splatter and maintaining surface cleanliness.
Q2: Can it handle continuous high-volume runs?
A: Yes! The automatic glue weight verification and nozzle self-cleaning ensure long, stable production without manual intervention.
Q3: Is it easy to integrate with other equipment?
A: Absolutely — the GS600SS supports SMEMA interfaces and works seamlessly with SMT, DB, and other semiconductor packaging lines.
Q4: What type of spray valve is recommended?
A: The system can be configured with high-precision spray valves like the KAS1000, designed for tight control and minimal overspray in critical flux applications.
