FCBGA Packaging Jet Underfill Dispenser CUF Inline Cnc Glue Dispenser ISO

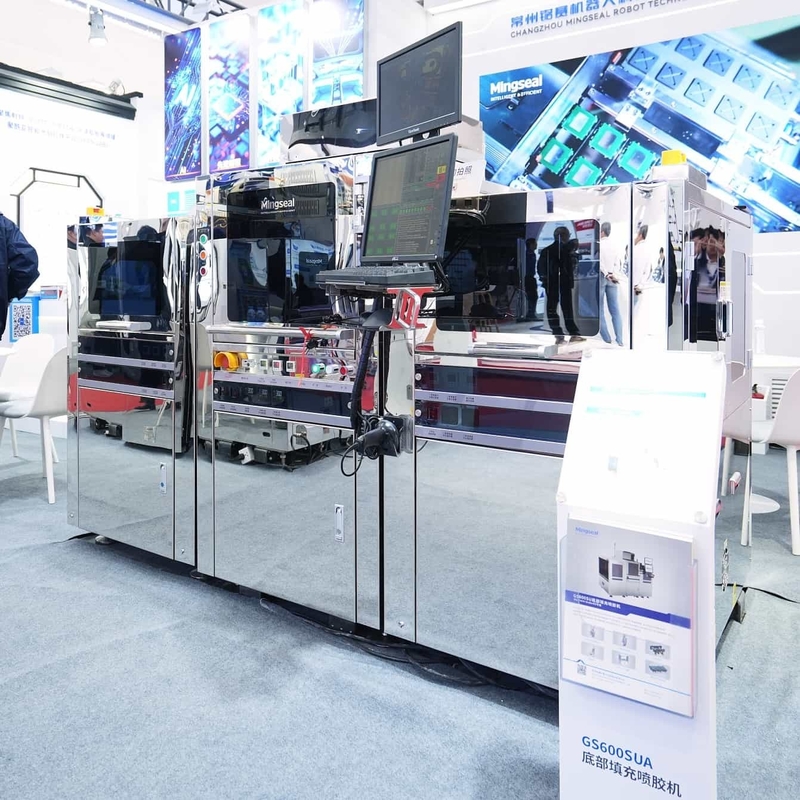

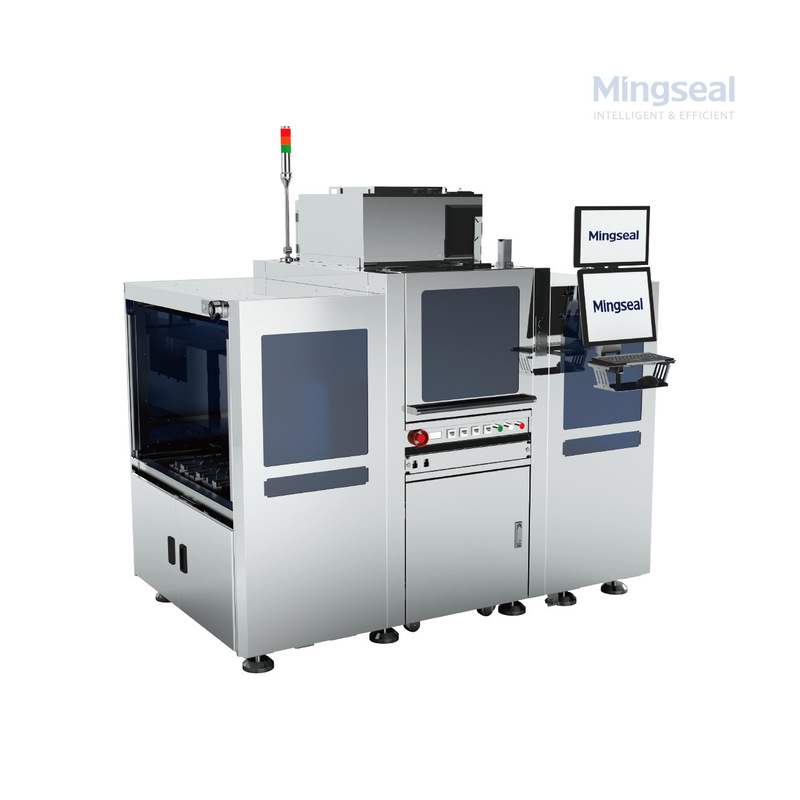

The GS600 Series Inline Jet Underfill Dispenser is Mingseal’s next-generation solution engineered specifically for FCBGA encapsulating applications, where process stability, ultra-fine dispensing paths, and precise glue control are critical to yield and performance.

Built for high-reliability semiconductor production, the GS600 integrates an advanced piezo jetting module, real-time glue weight calibration, and a triple low-level alarm module—ensuring zero unexpected downtime in demanding mass production lines.

A key advantage for CPU packaging is the ability to strictly limit flow height to less than 70% of the chip’s sidewall while keeping keep-out zones (KOZ) under 250 μm. Combined with a precision visual alignment system and repeatable dot accuracy within ±25µm, the GS600 ensures minimal overflow and high fill uniformity.


Core Advantages

• Industry-Leading KOZ Control: Ensure that glue stays within tight keep-out zones, with KOZ consistently <250μm.
• Height-Controlled Capillary Flow: Specialized jetting and flow management maintain the capillary rise below 70% of the die height.
• Precision Glue Weight & Path Control: Keep volume variation within ±3% with single-dot position repeatability down to ±25µm.
• Reliable Low-Level Monitoring: Reduce process interruption risk and improve material changeover efficiency.


Typical Applications

✔ FCBGA (CPU) Underfill
✔ Flip Chip CPU Die Attach Protection
✔ High-Density BGA Packages
✔ Fine-Pitch Flip Chip Bonding
✔ Capillary Fill for High-Performance Microprocessors

How It Works: GS600SU CUF Underfill Process

The GS600SU series executes a precision capillary underfill sequence optimized for FCBGA CPU packaging:

Step 1 — Substrate Loading & Inspection: Substrates are loaded via the platform-type auto-loading system. Pre-dispensing visual inspection rejects defective incoming materials before processing begins.

Step 2 — Thermal Preconditioning: The vacuum adsorption heating fixture brings the substrate to target temperature with surface uniformity of ±1.5°C. Real-time temperature compensation prevents thermal drift during operation.

Step 3 — Vision Alignment: The camera system (130W pixel) captures fiducial marks with ±1 pixel accuracy. The linear motor X/Y stage positions the dispensing head with ±0.010mm accuracy for precise dot placement.

Step 4 — Capillary Jetting: The piezoelectric jetting module dispenses underfill adhesive at 0.001mg/dot minimum weight with up to 1000Hz frequency. Flow height is actively controlled to stay below 70% of die height while KOZ remains within 250μm.

Step 5 — Weighing & Quality Verification: Inline precision weighing (0.1mg accuracy) verifies glue output. Post-dispensing visual inspection confirms complete coverage. Triple low-level alarms prevent batch defects from glue shortage.

Step 6 — Unloading & Traceability: Finished substrates exit to the unloading module. Full MES data logging captures process parameters for each unit, enabling complete traceability in smart factory environments.

How to Choose a CUF Underfill Dispenser for FCBGA Packaging

Choosing the right capillary underfill dispenser for FCBGA CPU packaging involves several critical evaluation points:

1. KOZ (Keep-Out Zone) Control — For CPU packaging, KOZ must stay below 250μm. Verify the system can consistently maintain this boundary to prevent adhesive overflow onto adjacent components.

2. Flow Height Management — The underfill capillary rise must remain under 70% of die height. Look for systems with specialized jetting and temperature control that consistently limit flow height.

3. Positioning Repeatability — ±0.003mm X/Y repeatability is essential for consistent dot placement on fine-pitch CPU dice. Check 3-sigma specifications, not just single-point measurements.

4. Glue Weight Consistency — Volume variation should stay within ±3% with single-dot position repeatability at ±25μm. Inline weighing and real-time calibration are must-haves for high-volume production.

5. Material Reliability Systems — Triple low-level alarms (capacitive + photoelectric + system weighing) prevent unexpected downtime. Automatic glue residue cleaning and nozzle maintenance reduce operator intervention.

6. Thermal Management — Verify bottom heating uniformity (±1.5°C) and fluid-box/nozzle temperature control (±2°C up to 200°C) for consistent adhesive viscosity throughout production runs.

Technical Specifications

FAQ

Q1: How does the GS600 control KOZ below 250μm?
A: Our proprietary path planning and flow control algorithms precisely confine glue spread, while high-resolution jetting and vision alignment minimize lateral flow beyond the intended area.

Q2: How do you ensure the flow does not climb too high?
A: By combining precision piezo jetting with advanced temperature control and bottom heating, the GS600 consistently limits the fill height to <70% of die height.

Q3: What about glue weight consistency?
A: Real-time inline glue weight inspection keeps glue output stable within ±3% while dot placement holds repeatability within ±25μm.

Q4: How is downtime minimized?
A: The GS600 includes a triple low-level alarm, integrated MES traceability, and smart syringe status detection, ensuring material runs are predictable and uninterrupted.
