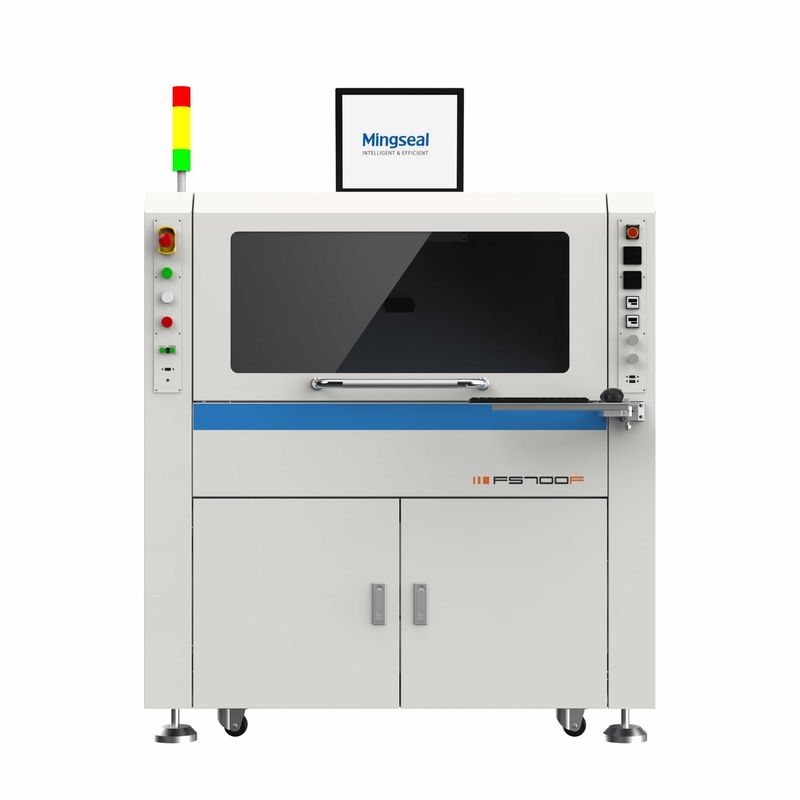

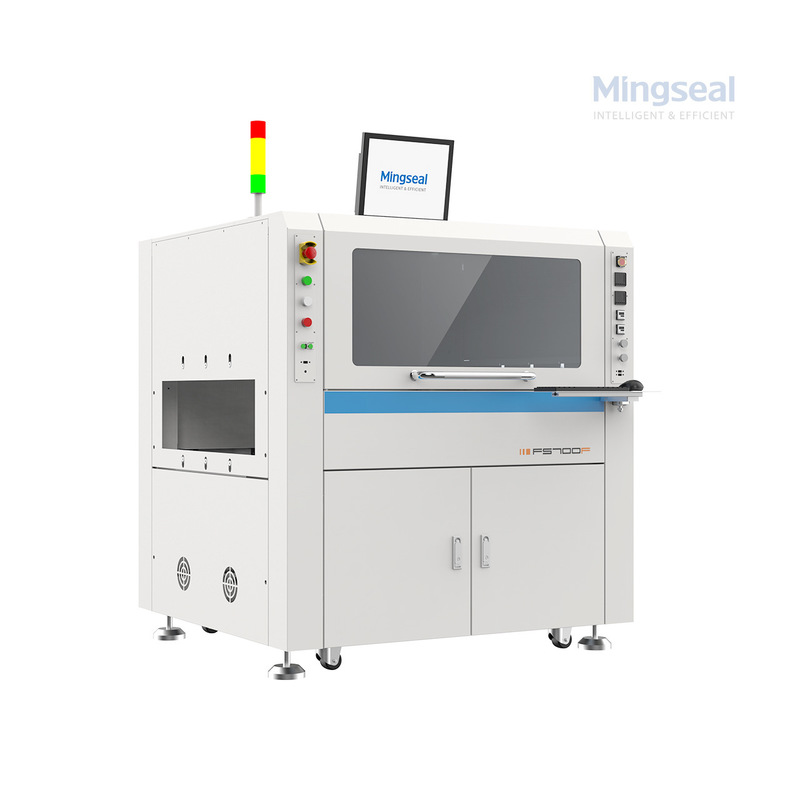

Inline Visual Dispensing Machine for Large PCB Flexible Process
The FS700 Series Inline Visual Dispensing Machine is an advanced dispensing solution specifically developed for large-format PCB manufacturing and high-mix SMT production lines. One of the standout features of the FS700 Series is its dual-valve asynchronous mode: the two valves can operate independently to handle different adhesives or solder pastes—for example, dispensing red glue and solder paste simultaneously. This makes it ideal for complex multi-process production tasks such as adhesive bonding and solder paste deposition on the same PCB.
✔ Large-format PCB and FPC adhesive gluing
✔ Red glue + solder paste mixed process
✔ SMT underfill and flip-chip bonding
✔ Dam & Fill for MiniLED module assembly
✔ Tilted/angled dispensing for non-planar boards
| FS700 series Online Visual Dispensing Machine | |
| Structure | Floor-mounted gantry(marble frame +mobile gantry ) |
| Transmission System |
X/ Y: Linear motor + Raster Ruler Z: Servo motor+ Screw module |
| Number of Axis | 3 axis |
| Dimensions (W × D × H) | 1360 × 1280 × 1550 mm |
| Dispensing Range ( W × D)( Single valve vertical dispensing) | 900 × 600 mm |
| Max. Speed | X/ Y:1300 mm/ s Z: 500 mm/ s |
| Max. Acceleration | X/ Y:1.3 g Z:0.5 g |
| Repeatability (3 sigma) | X/ Y: ± 0 . 015 mm Z: ± 0 . 005 mm |
| Positioning Accuracy (3 sigma) | X/ Y: ± 0 . 03 mm Z: ± 0 . 01 mm |
| Track Width Adjustment Method | Automatic width adjustment |
| Track width adjustment range | 150 ~ 500 mm |
| Z axis Load | 5kg |
| Conveyor Belt Load | 5kg |
| Max. Substrate Thickness | 0.5 ~ 10 mm |
| Max. Height of Devices on Top of PCB | 25 mm |
| Max. Height of Devices on Bottom of PCB | 25 mm |
| Conveyor Track | Stainless steel chains |
| Camera Pixels (Optional) | 130 W black & white (Optional) |
| Light Source | RGB colored Light source (Optional) |
Q1: Can I use two different glues at once?
A: Yes! The FS700’s dual-valve asynchronous mode lets you run red glue and solder paste or any other two adhesives at the same time—reducing changeover time and increasing process flexibility.
Q2: How does the tilt function help?
A: The valve’s tiltable rotating head reaches angled edges or hard-to-cover areas, perfect for large or irregularly shaped boards.
Q3: What if I don’t need high speed?
A: Simply switch to single-head mode for maximum coverage. The large working area makes it easy to process big PCBs without sacrificing precision.
Q4: Is it easy to integrate with my SMT line?
A: Absolutely! It supports SMEMA, MES, and real-time monitoring, with automatic track width adjustment for different panel sizes.
For manufacturers needing flexible, high-precision, large-format inline dispensing with dual-valve multi-process capability, the FS700 Series is the perfect fit for modern SMT and PCB lines—helping you handle everything from simple red glue spots to complex solder paste patterns on oversized panels.
