Auger Valve
Created with Pixso. Dual‑Component Volumetric Auger Valve for Continuous Flow 2K Dispensing

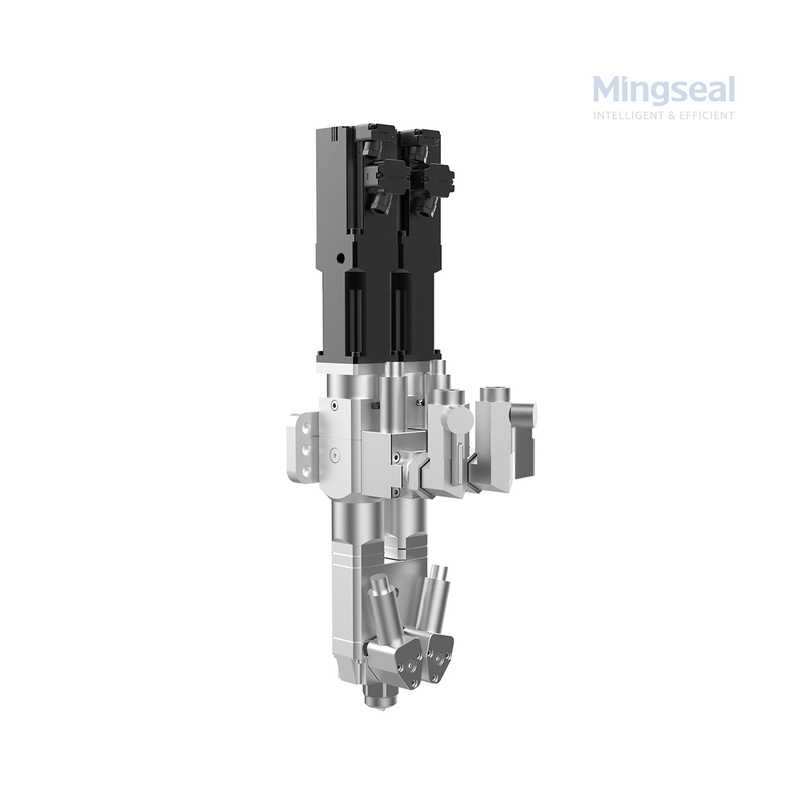

Dual‑Component Volumetric Auger Valve for Continuous Flow 2K Dispensing

Brand Name: Mingseal

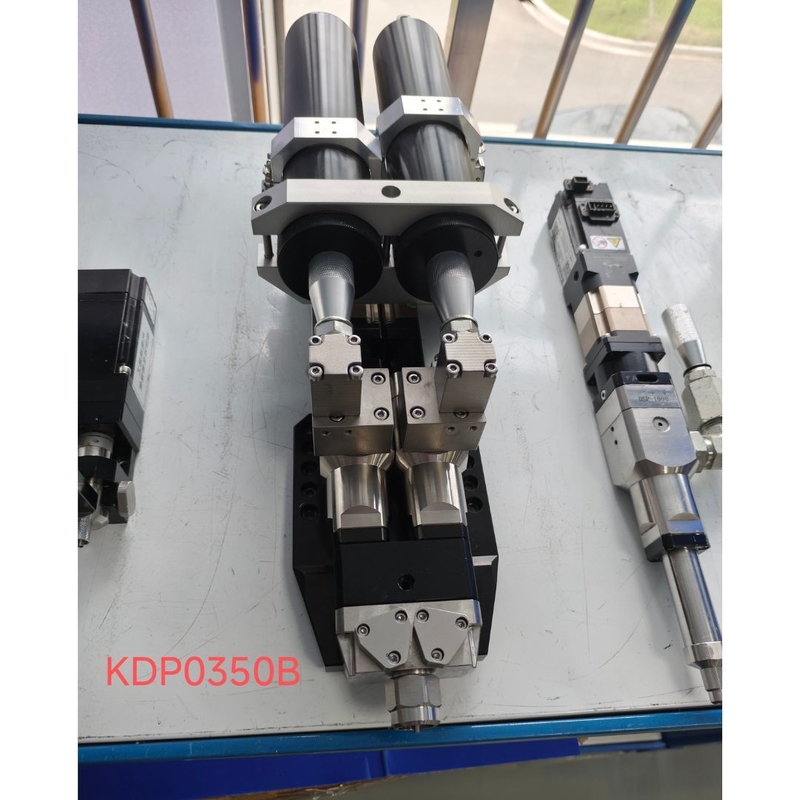

Model Number: KDP0350B
MOQ: 1sets
Price: $4000-$10000 / pcs
Delivery Time: 5-60days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Place of Origin:
China
Certification:
ISO
Product Name:
KDP0350 Two Component Dispensing Valve
Flow Rate:
0.7-14ml/min
Glue Output Per Cycle:
0.35ml
Mixing Ratio:
1:1~10:1
Motor Speed:
1~60rpm
Rotor Material:
Ceramic
Stator Material:
FKM/FFKM/EPDM
Viscosity Range:
1~1,000,000cPs
Packaging Details:
Carton/Wooden box
Supply Ability:
200sets per month
Highlight:

Volumetric Auger Valve

,

Auger Valve continuous flow

,

Eccentric screw valve

Product Description

Product Overview

This dual‑component auger valve meters two materials and delivers a continuous mixed output for 2K dispensing. It uses matched eccentric screws and a compact mixing head to provide steady flow, accurate ratio control and easy integration with robots or gantries. The design reduces pulsation and lets you run long production cycles with lower maintenance.


Problem

Many 2K processes fail when ratio or flow drifts, causing weak bonds, incomplete cure or increased rejects.


Cause

Ratio drift and uneven flow commonly result from uneven pump speeds, air ingress, or poor mixing design. Pressure‑based feeding and long fluid paths make stable A+B delivery harder to achieve at production scale.


Solution

This valve pairs two positive displacement screws with a short mixer so A and B are metered accurately and combined just before the outlet. Continuous screw drive reduces pulses and maintains steady ratio under varying line demands. Replaceable mixer elements and straightforward access make cleaning and maintenance fast.


Technical parameters

Model KDP0350
Glue output per circle 0.35ml
Flow rate 0.7~14mL/min
Mixing ratio 1:1~10:1
Measuring accuracy ±3%
Matching controller KSC3000-D
Operating pressur 0~0.6MPa
Maximum output pressure 2.0MPa
Viscosity range 1~1,000,000cPs
Motor speed 1~60rpm
Rotor material Ceramic
Stator material FKM/FFKM/EPDM


Application

  • 2K adhesive bonding for modules and housings.
  • Structural potting and gap filling where controlled A+B mixing is required.
  • Large pad sealing and multi‑point dispensing with a single mixed output.
  • Robotic workcells and continuous lines needing steady mixed output with low downtime.


How It Works

Two eccentric screws meter components A and B by positive displacement. Screw speed ratio sets the mix ratio while motor speed sets flow. The two streams meet in a short mixer immediately before the outlet to minimize pot life loss and reduce dead volume. Encoder feedback keeps screw speeds matched and maintains ratio under changing load.


How To Choose

  1. Define required continuous flow (mL/min combined) and desired mix ratio; specify when requesting a quote.
  2. Provide component viscosities at working temperature and any solids content to confirm screw sizing and mixer choice.
  3. Select feed method (pressure pot or bulk) and confirm supply stability; use regulator for pressure feed.
  4. Choose mixer type (static for short pot life, dynamic for thicker or filled materials) and nozzle outlet arrangement.
  5. Add encoder feedback or flow sensors for closed‑loop ratio verification if process tolerance is tight.
  6. Run a bench trial with your materials to set screw speeds and verify accuracy and nozzle life.


FAQ

Q1: Can the valve maintain a fixed mix ratio during long runs?
A1: Yes. With matched screw drives and stable feed the valve keeps ratio within ±1~3% typical; encoder feedback improves control.

Q2: How fast can the system run?
A2: Continuous flow depends on model and nozzle; typical ranges are 1~100 mL/min combined. Provide target throughput for exact sizing.

Q3: Can it handle filled or abrasive components?
A3: Yes — specify ceramic or coated wetted parts and request a bench wear test to confirm life expectancy.

Q4: How is cleaning handled between batches?
A4: The mixer is quick‑release with replaceable elements; use the purge routine and swap mixer parts for fast changeover.

Q5: Do you provide sample testing and tuning?
A5: Yes. Send A and B samples and process conditions; we run bench trials, return logs and recommend screw speeds, nozzle and mixer choices.
