| Brand Name: | Mingseal |
| Model Number: | SS200 |
| MOQ: | 1 |
| Price: | $28000-$150000 / pcs |
| Delivery Time: | 5-60 Days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

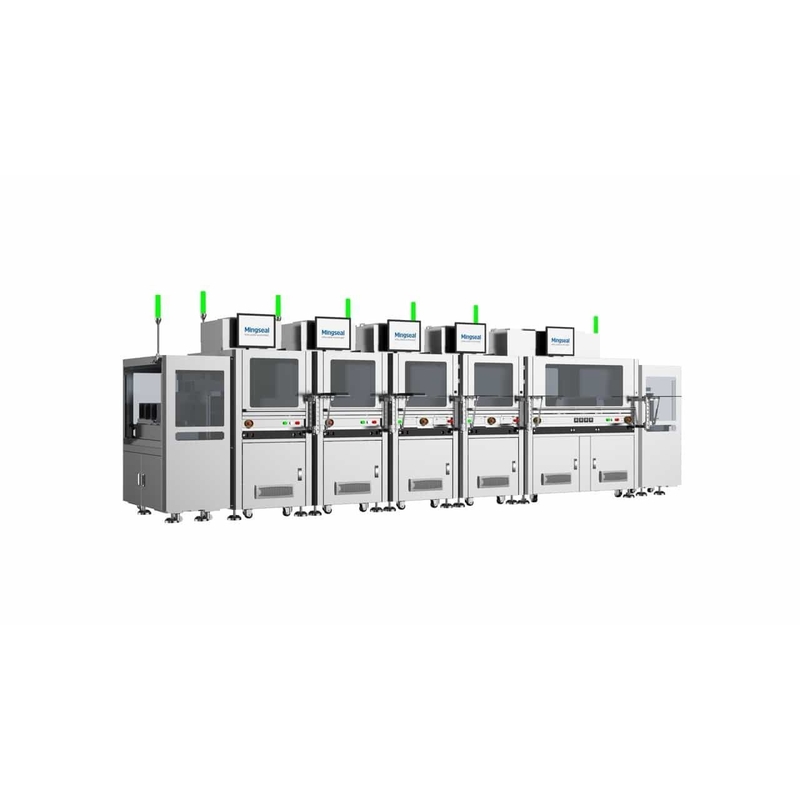

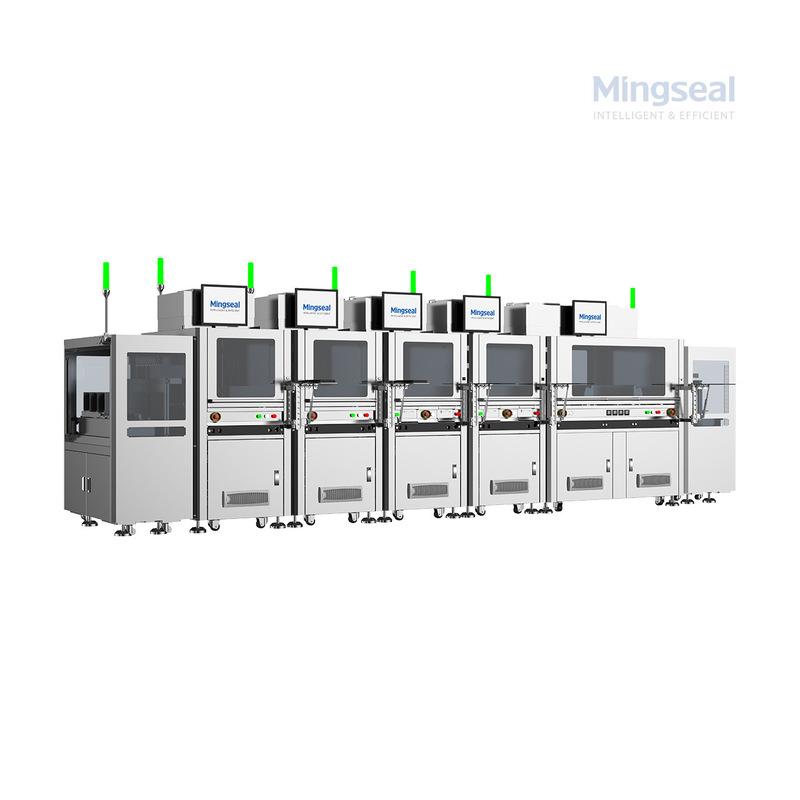

Automatic Lid Attachment System for FCBGA/FCCSP Advanced Packaging
With the rapid evolution of high-performance processors, AI chips, and advanced communication modules, the demand for reliable lid attach processes in high-end packaging continues to grow. The SS200 was designed to deliver a fully automated, modular lid attachment line that eliminates manual handling risks and guarantees repeatable precision even for the most demanding lid attach applications. The entire process is supported by automatic dispensing position compensation, intelligent error-proofing for glue paths, and substrate orientation checking to ensure zero defects. Whether handling TIM glue, AD glue, or custom lid mounting, the SS200 provides unmatched process control and flexibility.
Core Advantages
Application Areas
✔ FCBGA Lid Attachment
✔ FCCSP Lid Attachment
✔ TIM Glue & AD Glue Coating
✔ High-Performance Processor Packaging
✔ Snapcure Lid Bonding
✔ Heat Dissipation Component Assembly for ICs
System Composition
KLM201 loading machine
* The machines of this system are of modular design.
* The sequence or quantity of the dispensing machine, mounting machine, and hot pressing machine can be adjusted according to the requirements of process sequence and efficiency ratio.
Technical Specification
| Suitable PKG Size | 5 mm × 5mm - 110mm× 110mm |
| Max. Boat Size | L× W≤ 325 mm× 162mm |
| Max. Boat Weight | 3kg ( product weight included) |
| Max. Magazine Size | L× W× H≤ 330 mm× 165 mm× 180mm |
| Max. Lid Tray Size | L× W≤ 316 mm× 135mm |
| Lid Loading Method |
Magazine, Tray loading (Standard)； belt type feeding (optional) ； Tube/ soft Tray (customizable) |
|
Ambient Temp. & Humidity |
25℃±5℃ , 30 ~ 70% |
| Footprint W× D× H | 5870 mm× 1650 mm× 2100mm |
| System Weight | 5.8T |
| Power Supply | 200~240VAC, 47~63Hz, Single-phase voltage adaptive power supply |
| Electric Current | 81A |
| Power | 18KW |
| Inhale | 1770L/Min |
FAQ
Q1: What packaging types does the SS200 support?
A: The SS200 is specifically designed for FCBGA and FCCSP lid attach processes but can be adapted for other similar advanced packaging applications.
Q2: How does the system ensure glue dispensing accuracy?
A: It uses automatic dispensing position compensation and double-valve synchronization or asynchronization to deliver uniform glue lines every cycle.
Q3: Can the system handle different lid feeding methods?
A: Yes — magazine, tray, belt-type, tube, or custom feeding are all supported for maximum process flexibility.
Q4: What is the advantage of the modular design?
A: Users can add or reconfigure modules such as indium/graphene mounting, flux spray, UV curing, or AOI, tailoring the line to evolving production requirements.
About Mingseal
Mingseal is an industry-leading supplier of precision fluid dispensing, coating, and assembly automation for semiconductor, automotive, and advanced electronics industries worldwide. Our solutions help manufacturers achieve consistent high yields, minimize manual intervention, and meet the most demanding process standards in next-generation packaging. From lid attach to underfill to wafer-level bonding, Mingseal’s innovation and engineering excellence keep your production ahead of the curve.
Contact Mingseal today to learn how the SS200 Lid Attachment System can transform your advanced packaging line with automation and reliability.
