Multi‑Surface Glue Dispensing System — 500W Hot Melt Dispensing Equipment

Product overview

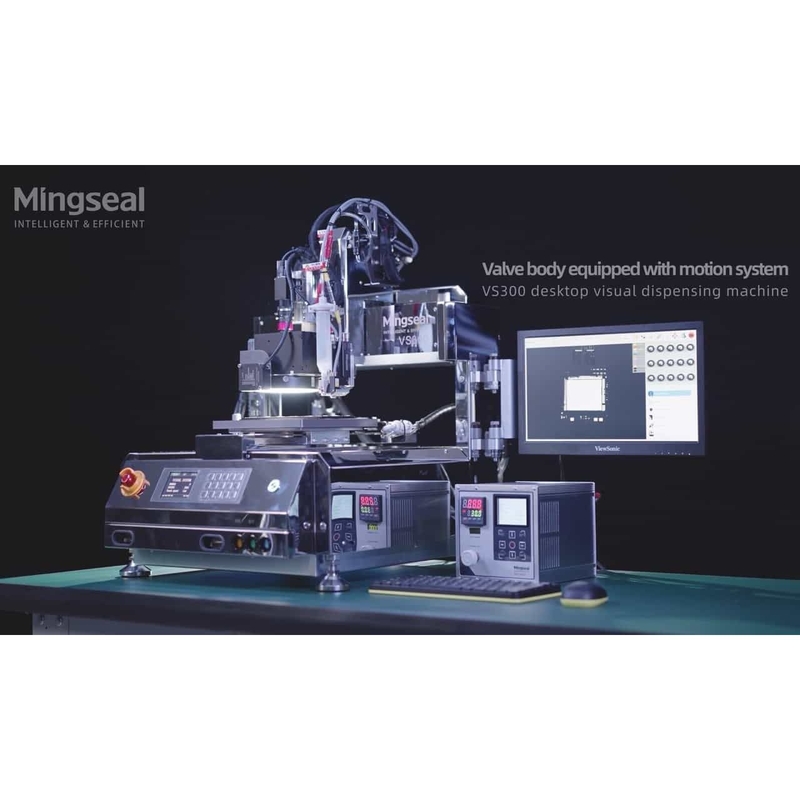

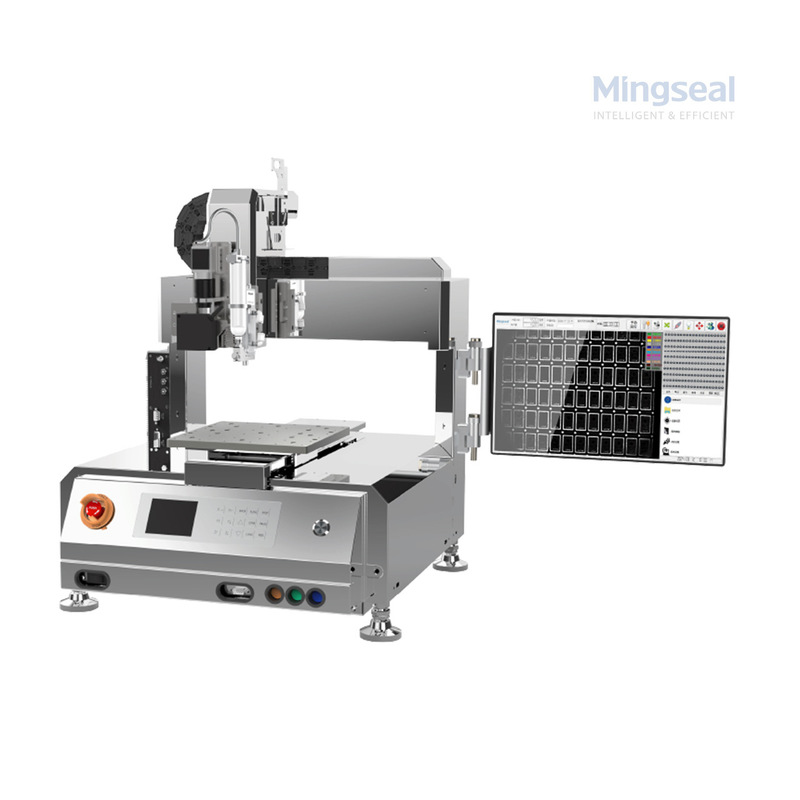

This Multi‑Surface Glue Dispensing System pairs a 500 W heating and delivery module with precision dispense valves and an XYZ motion stage. It supports continuous bead and micro‑dot dispensing across plastics, metals and coated substrates. Key functions: heated reservoir with temperature control, fast‑response valve (piezo/VCM option), interchangeable nozzles, recipe storage and optional 2D/3D vision alignment for inline verification and MES connectivity.

Problem → Cause → Solution

Problem: Multi‑material assembly often suffers from inconsistent bead geometry, stringing and adhesion failures when adhesive temperature or dispensing dynamics vary.
Cause: Temperature fluctuations, slow valve response, inappropriate nozzle geometry and lack of closed‑loop placement verification create volume and placement variance.
Solution: Use a controlled hot‑melt system with stable reservoir temperature, fast valve actuation, optimized nozzle selection and vision feedback. Validate and lock recipes for each substrate to ensure repeatable production.

Technical Specifications

Applications

• Multi‑surface bonding on plastics, metal frames and composite parts in consumer electronics.
• Sealing and gasketing for camera modules, connectors and small housings.
• Structural adhesives for small assemblies in wearables, TWS and IoT devices.

How it works

Material prep: load hot‑melt into heated reservoir and set temperature.
Recipe & alignment: select recipe or push from MES; optional vision aligns part.
Dispense action: valve issues pulses or continuous feed while motion stage follows programmed path.
Verify & log: vision/AOI inspects bead shape and placement; process and batch logs saved.

How to choose

Adhesive type & viscosity: confirm glue viscosity curve vs temperature; choose nozzle type and valve accordingly.
Throughput needs: for continuous high throughput use larger nozzle/nozzle bank; for micro‑dots choose piezo valve + short pulse widths.
Substrate sensitivity: for heat‑sensitive plastics minimize nozzle dwell and use lower setpoint adhesives.
Integration: ensure required MES/PLC interfaces and recipe management options are available.

FAQ

Q: Which hot‑melt adhesives are supported?
A: Supports common hot‑melt adhesives (EVA and similar); confirm viscosity‑temperature profile and run pilot validation for filled adhesives.
Q: How do you reduce stringing?
A: Use fast‑response valve (piezo/VCM), tune pulse width and nozzle‑to‑part distance, and add vision feedback to correct placement.
Q: Can the system store multiple recipes and integrate with MES?
A: Yes—recipe storage and MES recipe push/pull are supported via standard industrial protocols.

Contact Us

Mingseal’s VS Series has already helped smartphone camera module makers worldwide improve dispensing quality and production flexibility. Contact us today for more technical details, free sample tests, or a customized solution for your specific camera module assembly line!
