| Brand Name: | Mingseal |
| Model Number: | FS600DF |
| MOQ: | 1 |
| Price: | $28000-$150000 / pcs |
| Delivery Time: | 5-60 Days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

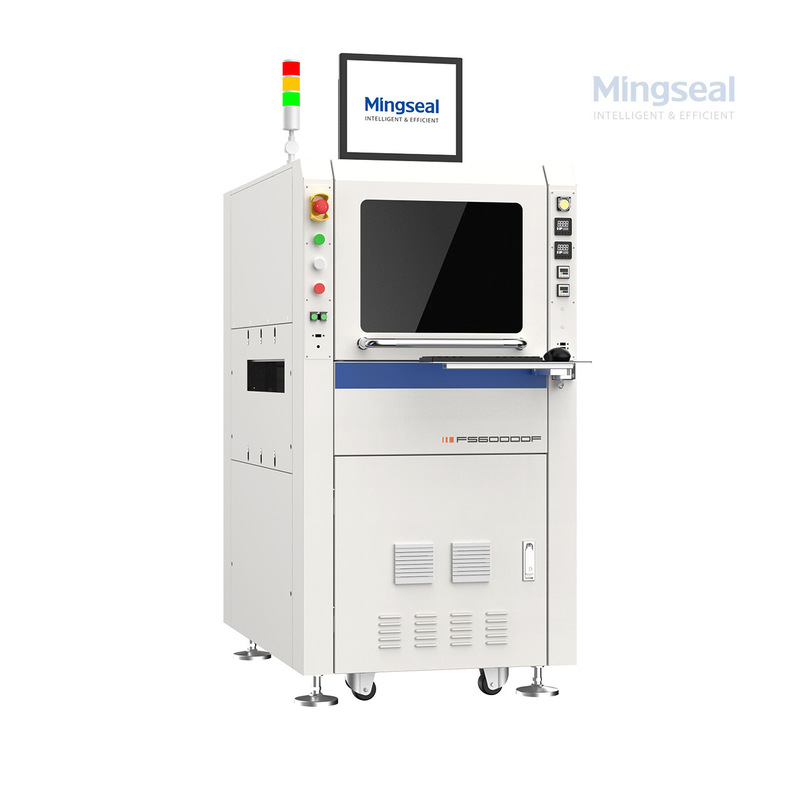

This automatic inline dispensing platform is engineered for high‑volume MiniLED production and VCM (voice coil motor) module assembly. The system integrates: a precision gantry, configurable multi‑nozzle dispense heads, syringe cartridge or heated feed options, fast‑response valves, onboard 2D/optional 3D vision for fly- alignment and AOI, and MES interfaces for recipe management and traceability. Designed for indexed or continuous inline operation, it minimizes stringing, ensures placement accuracy and supports rapid product changeover.
Problem: MiniLED/VCM lines require consistent micro‑dot placement at high throughput; inconsistent dispensing causes yield loss, optical defects and rework.
Cause: Manual processes, unstable adhesive temperature/viscosity, single‑head throughput limits and lack of inline alignment produce volume and placement variance.
Solution: Deploy a double-valve inline dispenser, fast valve metering, vision‑guided alignment and locked recipes (MES) to stabilize volume, place accurately and scale throughput.
| Basic parameters | Application Fields | Voice Motor Module (VCM) |
| Frame Structure | Floor-mounted gantry 3-axis | |
|
Dimensions W × D × H (w/o loading & unloading) |
770×1200×1450mm | |
| Weight | 850kg | |
| Power Supply | 220V AV 50Hz | |
| Power | 3.6KW | |
| Motion System | Transmission Mechanisms |
X/Y: Linear motor Z: Servo motor & Screw module |
| Repeatability |
X/Y: ±0.01mm Z: ±0.005mm |
|
| Positioning Accuracy |
X/Y: ±0.02mm Z: ±0.01mm |
|
| Max. Movement Speed |
X/Y: 1300mm/s Z:500mm/s |
|
| Max. Accelerated Velocity |
X/Y: 1.3g Z: 0.5g |
|
| Visual Positioning Method | Mark | |
| Weighing Accuracy | 0.1mg / 0.01mg | |
| Minimum Board Edge Gap | 4mm | |
| Max. Height of Devices on Top of PCB | 25mm | |
| Max. Height of Devices on Bottom of PCB | 25mm | |
| Z-axis Motion Range | 40mm |
Installation: inline conveyor integration; connect power, compressed air and network; ensure ESD/proper grounding for delicate modules.
Commissioning: run adhesive × nozzle × temp × speed matrix to create validated recipes and AOI acceptance criteria.
Routine maintenance: daily nozzle cleaning for high‑use lines; scheduled pump/valve cartridge checks; monthly vision recalibration and conveyor inspection.
Q: What adhesives are supported for MiniLED/VCM?
A: Supports UV adhesives, hot melt, epoxies adhesives—validate viscosity vs. temperature and select valve accordingly.
Q: Can the system run indexed and continuous modes?
A: Yes—supports both indexed conveyor and continuous inline operation; configurable I/O for line sync.
Q: How are recipes managed and traced?
A: Recipes store valve timing, motion paths, temperatures and nozzle maps locally and can be pushed/pulled via MES for batch traceability.
