Auger Valve
Created with Pixso. Servo Driven High Precision Auger Valve with 10~500 rpm Speed Range and 98% Repetition Accuracy for Stable Flow
Servo Driven High Precision Auger Valve with 10~500 rpm Speed Range and 98% Repetition Accuracy for Stable Flow
  • name
  • name
  • name
  • name

Servo Driven High Precision Auger Valve with 10~500 rpm Speed Range and 98% Repetition Accuracy for Stable Flow

Brand Name: Mingseal
Model Number: KSV1000， KSV3000
MOQ: 1set
Price: $4000-$10000 / pcs
Delivery Time: 5-60days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO, CE
Document:
KSV1000 KSV3000 Concentric ...on.pdf
Product Name:
High Precision Concentric Screw Valve Concentric Structure For Stable Flow
Work Type:
Screw Type
Rotator Speed Range:
10~500 Rpm
Glue Range:
5000-500000 Cps
Stator Material:
Stainless Steel
Screw Material:
Tungsten Steel
Valve Dimension (W/O Trigger Cords):
37 ×230×85mm (W*H*D)
Controller Dimension (main Body):
240 × 100×260mm (W*H*D)
Packaging Details:
Carton/Wooden box
Supply Ability:
200sets per month
Highlight:

KSV servo driven auger valve

,

concentric screw valve for smart

,

concentric auger valve

Product Description

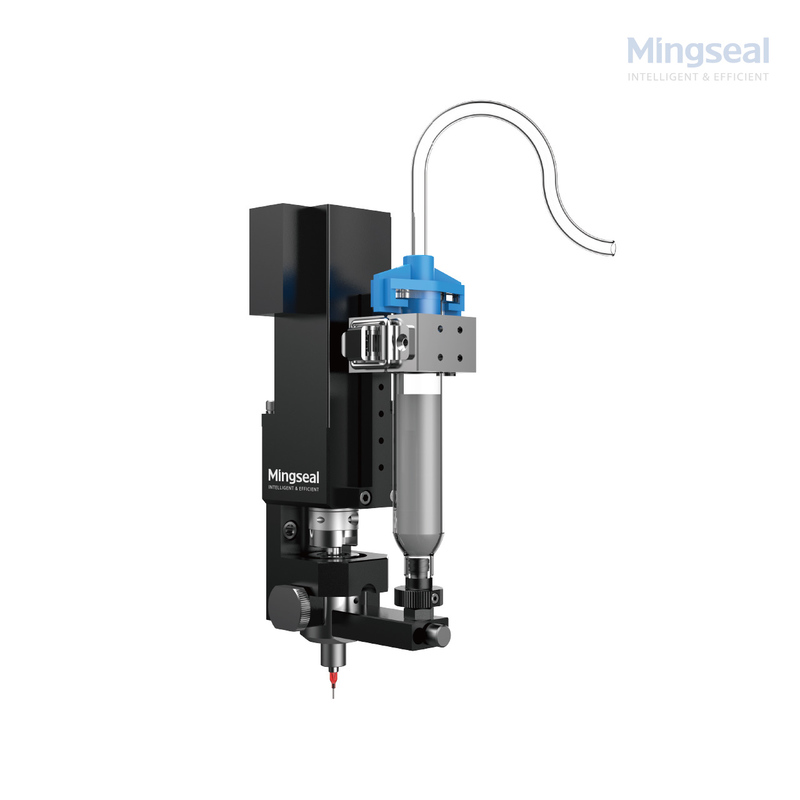

KSV Series Servo Driven Auger Valve Dispensing Concentric Screw Valve For Smart Manufacturing
The KSV1000 series is a screw valve specially designed for quantitative delivery and dispensing of medium containing particles and medium-to-high viscosity media. The valve body features interchangeable screws of different specifications to accommodate various flow and glue requirements. Its quick-release design enables fast cleaning and maintenance.
The KSV3000 series is an upgraded version with higher liquid flow rate, specifically engineered for dispensing high-viscosity media containing particles and heat conduction. The stator and rotor are constructed from high-wear-resistant materials to extend the maintenance cycle of core components.
Core Advantages
  • Closed-loop servo motor enables precise positioning with 98% repeatability and minimum glue output of 0.1μl
  • Guide installation design accommodates 10/30/50ml rubber cartridges for quick replacement and easy operation
  • Special negative pressure controller reduces applicable medium viscosity lower limit to 2000cps
  • Tungsten steel screw provides exceptional wear resistance for particle-laden and high-viscosity media
  • Forward/reverse screw rotation control eliminates glue drawing and other dispensing anomalies
  • Universal downflow channel interface supports rapid process switching with different channels
Main Applications
Camera process dispensing
Lens fixing bonding
Optical lens bonding
Applicable Fluids
UV Thermosetting Glue
Silica Gel
Grease
Red Glue
Solder Paste
Thermal Grease
Thermal Glue
PUR Glue
Technical Parameters
Type Model Max.flow rate Minimum dispensing amount Applicable fluids Applicable needles
Non-wear resistant KSV1000-U 120μl/s 2μl UV thermosetting glue, silica gel Luer-type
Non-wear resistant KSV1000-T 120μl/s 2μl Grease, red glue, etc. T type
Wear resistant KSV1000-T05 30μl/s 0.5μl Solder paste, Silver paste, etc T type
Wear resistant KSV1000A-U 120μl/s 2μl Thermal grease Luer-type
Wear resistant KSV1000A-T 120μl/s 2μl Thermal glue, etc. T type
Wear resistant KSV3000 360μl/s 20μl Medium & high flow, TIM glue Luer-type
Hot melt KSV1000-R 120μl/s 2μl For PUR glue Luer-type
Frequently Asked Questions
Can the concentric screw valve dispense precise amounts of adhesive without contaminating the lens or sensor?
Yes. The valve offers highly accurate, repeatable dispensing with clean cutoff, minimizing stringing or overflow that could contaminate optical elements. It's ideal for precision bonding in confined optical assemblies.
How does the valve perform in narrow bonding areas like lens barrels or sensor modules?
Equipped with fine Luer needles, the concentric screw valve can dispense in ultra-narrow spaces with precise control, enabling consistent glue placement in tight tolerance optical structures.
Will the valve cause bubbles or inconsistent flow during delicate dispensing?
No. The continuous rotary screw mechanism eliminates pulsing, providing smooth flow that helps prevent voids or bubbles--critical in optical bonding for light transmission and durability.
Can the valve be integrated into a vision-guided, automated assembly system?
Yes. It's designed for seamless integration with robotics, motion platforms, and vision systems, supporting real-time alignment and high-throughput production in optical device manufacturing.
About Mingseal
Founded in 2008, Changzhou Mingseal Robot Technology Co., Ltd. is a technology-driven manufacturer of high-end equipment, specializing in connection, assembly, inspection systems, and key components for advanced semiconductor packaging and precision electronics. Our solutions are widely adopted by leading customers in sectors such as semiconductor packaging, consumer electronics, and automotive electronics. With a strong presence across Asia and the Americas, we deliver reliable support and innovation globally.
Partner with Mingseal to power the future of automatic manufacturing!
