300W Micro Spot Welder for Sensitive Substrates — Horizontal Transistor Welding Power Supply

Product overview

This micro spot welder integrates a 300W transistor power supply with a horizontal welding head and precision electrode control. It is engineered for thin foils, flexible PCBs, metalized films, battery tabs and small SMT parts. Features include programmable weld profiles, adjustable pulse width and current, controlled electrode force, integrated cooling and optional weld monitoring for process traceability.

Problem → Cause → Solution

Problem: Welding on sensitive substrates often causes deformation, delamination or component damage due to excessive heat or inconsistent weld energy.
Cause: Conventional welders deliver excessive peak energy or lack fast pulse shaping and reliable electrode force control, producing thermal spread and inconsistent welds.
Solution: The DC‑controlled 300 W system uses transistor‑based current shaping, sub‑ms pulse control and stable electrode force to deliver repeatable micro‑spot welds with minimal heat‑affected zones. Implement by selecting the correct electrode tip, tuning pulse/current profile, and validating with destructive or nondestructive tests.

Technical Specifications

Applications

• Flexible PCB busbar and foil spot welding—reliable connections without delamination for touch sensors and flexible displays.
• Battery tab and micro‑battery welds—controlled energy prevents separator and electrode damage.
• Transistor lead and small component tack welding in SMT assemblies where low thermal stress is required.

How it works

Recipe selection: choose material preset or create a custom profile (current, pulse width, electrode force).
Electrode contact & force: actuator applies controlled force to ensure stable contact.
Pulse delivery: transistor power supply delivers shaped current pulse(s) per profile.
Cooling & monitoring: integrated cooling limits thermal accumulation; optional monitoring records current/voltage profiles for QA.

How to choose (selection guidance)

Substrate thickness & material: select pulse energy that achieves full fusion on the tab without overheating the substrate; validate with destructive tests.
Electrode type: soft copper tips for ultra‑thin foils; tungsten or silver‑plated copper for harder metals and higher wear resistance.
Pulse resolution needs: choose models with ≤1 ms minimum pulse width for micro‑spot control and multi‑pulse capability for staged energy delivery.
Throughput: verify cycle time including electrode return and cooling intervals; match actuator speed to required takt.
QA/monitoring: prefer units with integrated weld monitoring if traceability is required.

Installation & maintenance

Installation: bench or cell mounting; connect clean compressed air (for pneumatic actuator if used), cooling supply and properly grounded power. Follow site ESD and grounding practices for sensitive substrates.
Commissioning: run sample matrix (material × thickness × electrode) to create production recipes.
Maintenance: clean electrode tips daily in high‑use lines; replace worn tips and verify force sensor calibration monthly.

FAQ

• Q: What is the minimum pulse width?
  A: Minimum pulse width is 0.001 s (1 ms) with 1 ms resolution; confirm model options for sub‑ms capability.
• Q: Which electrode materials are recommended for thin foils?
  A: Soft copper for ultra‑thin copper foils; silver‑plated copper or tungsten for harder metals—wear and maintenance vary by material.
• Q: Can the system log weld energy and provide traceability?
  A: Yes—an optional weld monitoring module records current/voltage profiles and stores batch logs for QA and SPC.

Contact Us

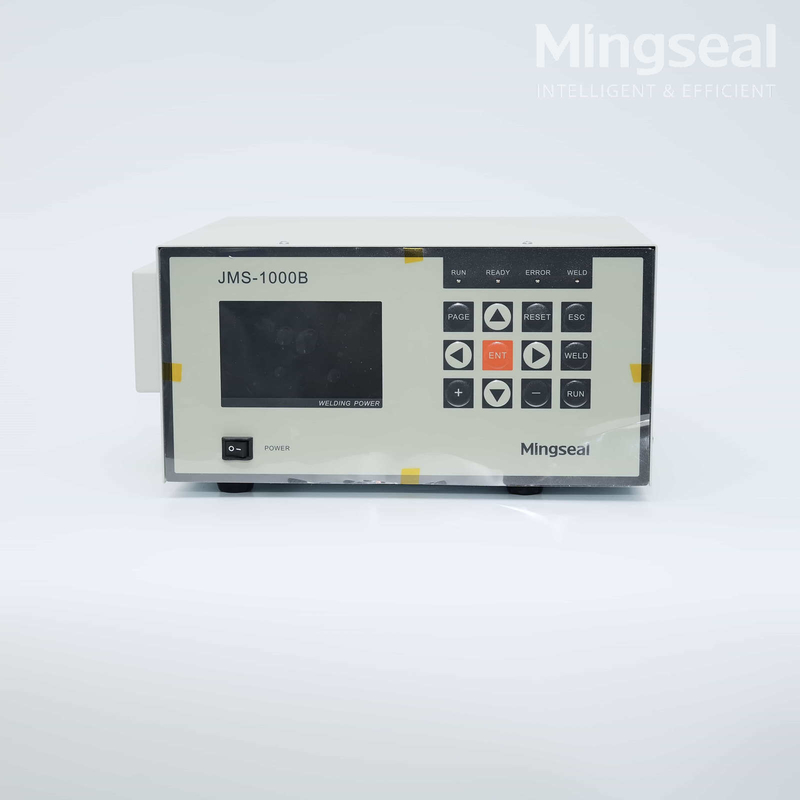

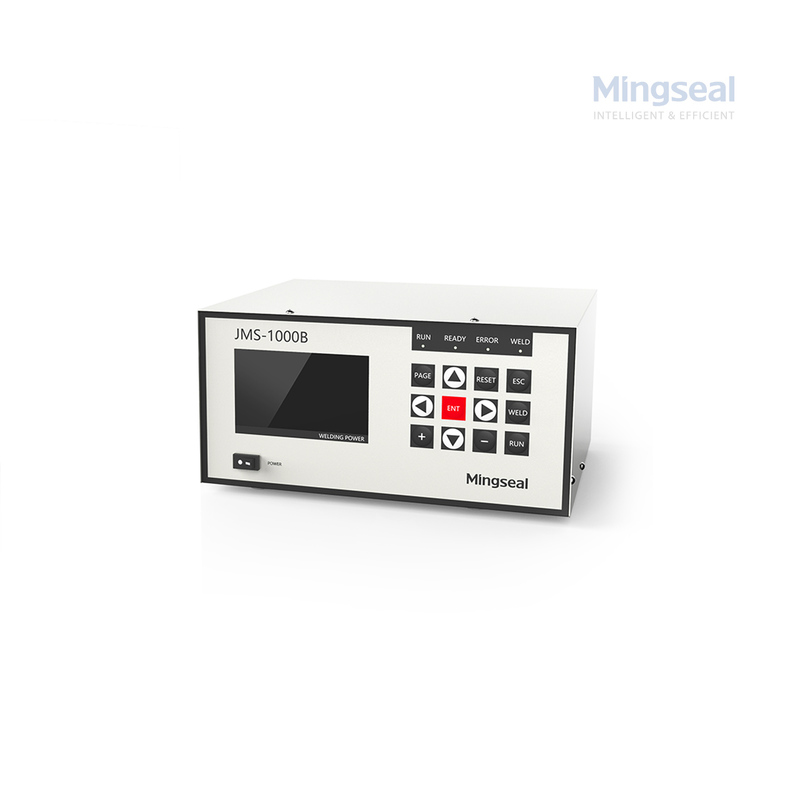

For precision fine-wire welding, thin metal pad bonding, or thermal riveting in limited spaces, the JMS-1000B horizontal transistor welding power supply is your trusted partner.
Contact us today to find out how the JMS-1000B can streamline your assembly line and boost your welding consistency.
