Precision FPC Micro Spot Welder — Micro Welding Head for Sensitive Substrates

Product overview

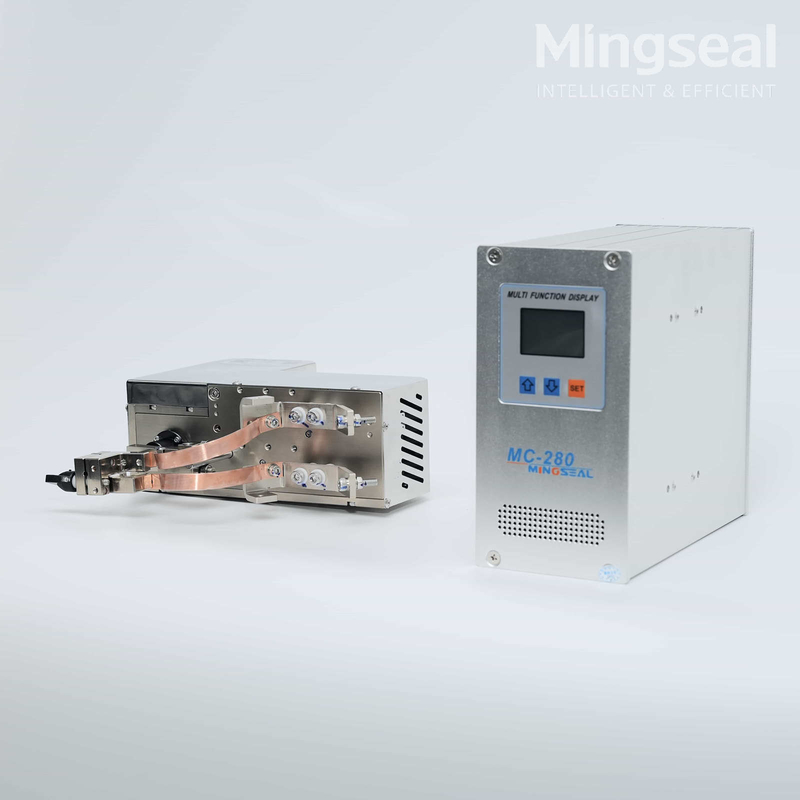

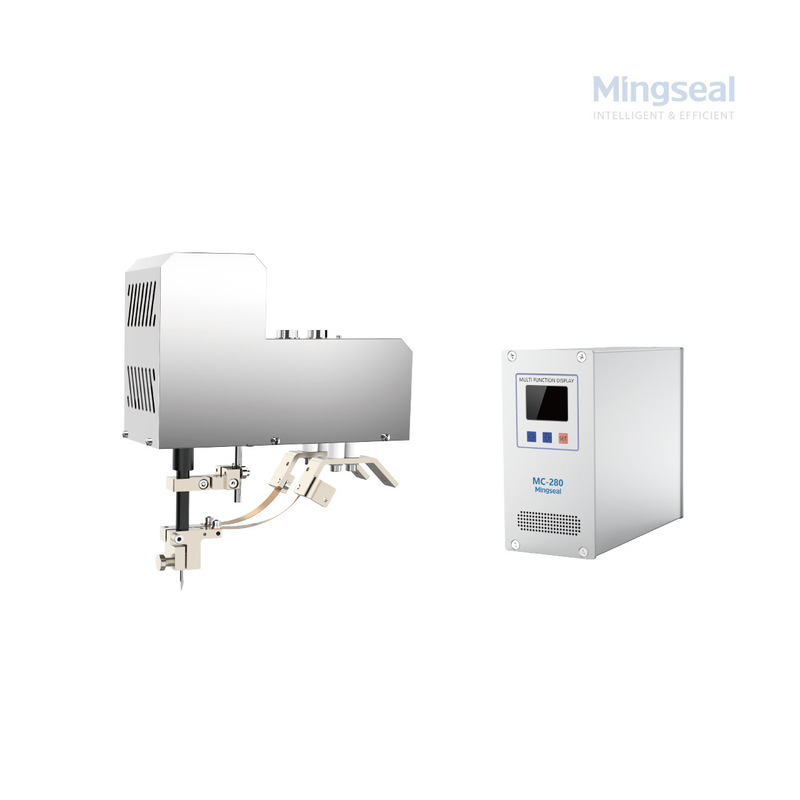

This Precision FPC Micro Spot Welder pairs a high‑resolution transistor power supply with a compact micro welding head and force actuator optimized for flexible printed circuits (FPC), metalized films and delicate SMT parts. The system supports programmable weld profiles, sub‑ms pulse control, precise electrode force feedback and optional weld monitoring for traceability. Designed for bench integration or inline cells, it minimizes heat‑affected zones and substrate deformation.

Problem → Cause → Solution

Problem: Welding flexible circuits and thin foils often causes delamination, cracking or unreliable joints.
Cause: Excessive energy, long pulse durations, inconsistent electrode contact force and poor electrode selection lead to thermal damage and variable welds.
Solution: Use a micro welding head with transistor‑based current shaping, short pulse resolution (sub‑ms), and stable force control to apply the minimal required energy for fusion while protecting the substrate. Tune electrode tip geometry and pulse profile during pilot testing and store validated recipes for production.

Technical Specifications

Applications

• FPC busbar and flex cable spot welding for displays, touch sensors and flexible modules.
• Battery tab and micro‑battery spot welding for thin tabs and pouch cells.
• Component lead and micro tack welds in SMT assemblies requiring low thermal stress.

How it works

1. Select recipe or material preset (current, pulse width, force, electrode).
2. Actuator applies controlled electrode force to ensure repeatable contact resistance.
3. Transistor power supply delivers shaped current pulse(s) per profile.
4. Optional monitoring logs current/voltage profile and pass/fail metrics for SPC and traceability.

How to choose

• Substrate & thickness: verify recommended thickness range (start with manufacturer presets and run a material matrix).
• Electrode tip: choose diameter and material per spot size and wear requirements—copper tips for thin foils; tungsten or plated tips for abrasive materials.
• Pulse resolution needs: choose models with sub‑ms pulse capability for the smallest micro‑spots.
• Force & repeatability: ensure actuator range and force stability meet contact reliability needs.
• Throughput: confirm cycle time including electrode return and cooling meets takt time.

Installation & maintenance

• Installation: bench or cell mounting; connect power, ground, compressed air (if pneumatic actuator), and cooling. Follow ESD and grounding practices for FPC handling.
• Commissioning: run a sample matrix (material × thickness × electrode) to establish production recipes and acceptance criteria.
• Maintenance: inspect and dress tips daily under heavy use; replace worn tips and verify force sensor calibration monthly.

FAQ

Q: What is the minimum pulse width available?
A: The system supports sub‑ms pulse widths (down to 0.0005 s in selected configurations); confirm exact min pulse for your model.
Q: Which electrode tips suit FPC work?
A: Small‑diameter copper tips (0.2–0.6 mm) are recommended for FPC busbars; tungsten/plated tips are used for harder or abrasive surfaces.
Q: Can the system provide weld traceability data?
A: Yes — optional weld monitoring logs current/voltage traces and pass/fail metrics, exportable to SPC or MES.

Contact Us

Protect your sensitive substrates and achieve stable, high-quality micro spot welding with confidence.
Contact us today to learn how the MF280RS Micro-Pressure Welding Head can enhance your precision assembly lines for FPCs, thin coatings, and delicate electronic parts.
