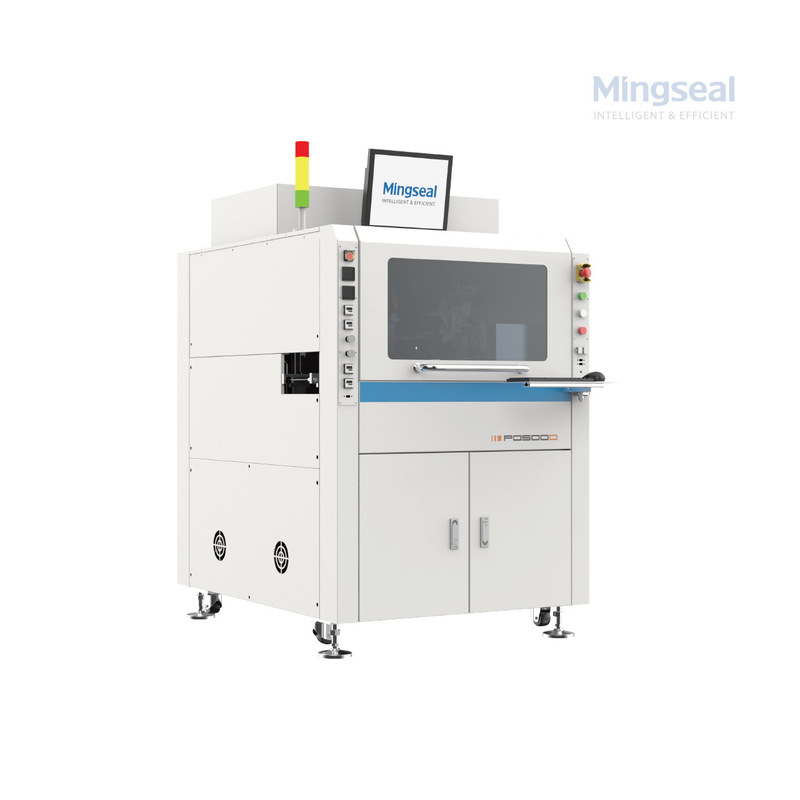

High Precision Multi-Axis 3D Curved Surface Dispensing Machine
The PD500D series is an advanced high-precision 5-axis linkage dispensing robot developed to meet the complex adhesive application demands of smart wearables, VR/AR glasses, flexible screens, and mobile phone middle frames. Designed with a dual-station configuration, the PD500D enables simultaneous dispensing and inspection operations, ensuring continuous production without any process interference. Equipped with a robust multi-axis motion control system and a powerful vision alignment module, the PD500D guarantees accurate curved surface dispensing, complex path bonding, and consistent glue application on specially shaped parts.
Key Advantages:
5-Axis Linkage & 3D Path Interpolation: Achieves complex curved surface and multi-angle dispensing for irregular components.
Dual-Station Operation: Simultaneous dispensing and inspection modules work independently to maximize uptime and throughput.
High Precision & Consistency: Linear motor drives for X/Y axes, servo for Z axis, ensuring ±0.003 mm repeatability.
Smart Vision System: Built-in CCD camera enables real-time positioning correction for high-consistency results.
Application Fields:
✓ Curved Surface Screen Dispensing
Technical Specifications
|
PD500D Five-Axis Linkage Dispensing Machine |
|||
|
Effective Travel of Motion Axis |
X: 750mm Y:840mm Z:200mm |
Transmission System |
X/ Y:Linear motor Z: Servo motor |
|
Positioning Accuracy (3 sigma) |
X/ Y: ± 0 . 008 mm Z: ± 0.01 mm |
Repeatability (3 sigma) |
X/ Y: ± 0 . 003 mm Z: ± 0.005 mm |
|
Max. Acceleration |
X/ Y: 1.3g Z: 0.5g |
Speed |
X/ Y≤ 1300 mm/ s Z≤ 500 mm/ s |
|
Travel Range for Visual Inspection |
X: 750mm Z: 190mm |
Z-axis Load |
5kg |
|
Dimensions (W × D × H) |
1080 × 1400 × 2000 mm |
Motion interpolation |
Supports arbitrary path dispensing in 3D space |
|
Edit Mode |
PC |
Communication Interface |
SMEMA/MES |
|
Input Power |
AC22V 50-60Hz |
Air Pressure |
(0.5Mpa,350L/min)*2 |
|
Operation Environment Temperature |
23℃±3℃ |
Operation Environment Humidity |
30-70% |
Q1: What types of adhesive can the PD500D series handle?
A: The PD500D supports a wide range of adhesives, including UV glue, epoxy resin, OCA, and other fluid adhesives commonly used for curved screens and flexible components.
Q2: Can the PD500D integrate into an existing automated production line?
A: Yes. The PD500D fully supports SMEMA/MES protocols for seamless inline connection and data traceability.
Q3: Is custom fixture design supported?
A: Absolutely. We provide customized jigs and fixtures for special-shaped screens, VR lenses, and flexible FPCs.
Q4: What makes the PD500D suitable for VR/AR and flexible displays?
A: Its 5-axis linkage system, high-speed vision correction, and dual-station structure ensure precise, consistent bonding on irregular or curved surfaces.
