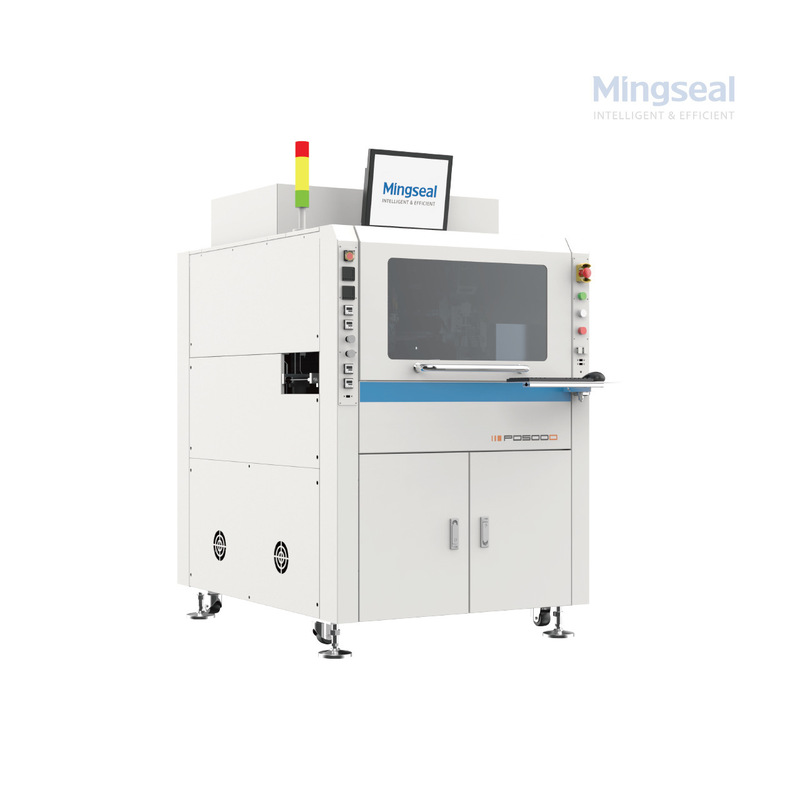

High-Performance 5-Axis 3D Smart Wearable Dispensing System
Five-Axis Linkage Motion: Supports free 3D path interpolation for curved, inclined, or irregular watch components.
3D Visual Inspection System: High-resolution vision alignment ensures precise glue position, compensating for material tolerance variation.
Stable Quality Control: Consistent dispensing width and volume guarantee uniform bonding lines on small wearables.
Improves Productivity: Dual-station configuration is optional for higher UPH and reduced machine idle time.
✓ Smart Watch Bezel Bonding
✓ Fitness Band Flexible Circuit Fixing
✓ Wearable Device Display Frame Adhesive Sealing
✓ Curved Glass Cover Bonding for Wearables
✓ Miniature FPC Reinforcement
✓ Micro Module Encapsulation in Smart Rings
✓ Precision Glue Jetting for Wearable Sensors
Technical Specifications
|
PD500D Five-Axis Linkage Dispensing Machine |
|||
| Effective Travel of Motion Axis | X: 750mm Y:840mm Z:200mm | Transmission System | X/ Y:Linear motor Z: Servo motor |
| Positioning Accuracy (3 sigma) | X/ Y: ± 0 . 008 mm Z: ± 0.01 mm | Repeatability (3 sigma) | X/ Y: ± 0 . 003 mm Z: ± 0.005 mm |
| Max. Acceleration | X/ Y: 1.3g Z: 0.5g | Speed | X/ Y≤ 1300 mm/ s Z≤ 500 mm/ s |
| Travel Range for Visual Inspection | X: 750mmZ: 190mm | Z-axis Load | 5kg |
| Dimensions (W × D × H) | 1080 × 1400 × 2000 mm | Motion interpolation | Supports arbitrary path dispensing in 3D space |
| Edit Mode | PC | Communication Interface | SMEMA/MES |
| Input Power | AC22V 50-60Hz | Air Pressure | (0.5Mpa,350L/min)*2 |
Q&A
Q1: What makes the PD500D series suitable for smart watch production?
A: The PD500D’s five-axis motion and 3D vision module enable ultra-fine bonding on compact, curved wearable components that standard XYZ machines struggle with.
Q2: Can the PD500D handle different adhesives?
A: Yes, it is compatible with UV glue, epoxy, OCA adhesive, and other high-viscosity fluids used in wearable electronics.
Q3: How does the 3D vision module help?
A: The built-in 3D camera corrects real-time alignment, detecting material position shifts to keep dispensing lines accurate and consistent.
Q4: Does it support inline integration?
A: Yes. The PD500D connects easily to existing SMT lines, conveyors, and traceability systems.
