Inline Visual Electronic Dispensing Machine CCM VCM Optical Components

Inline Visual Dispensing Machine for Optical Components CCM VCM

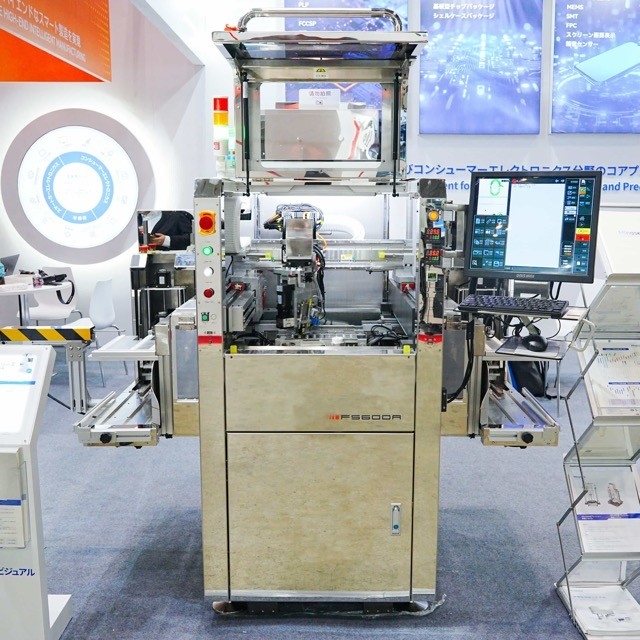

The FS600 series Inline Visual Dispensing Machine is a high-performance automatic dispensing solution designed specifically for cleanroom optical component production, including CCM (Compact Camera Module), VCM (Voice Coil Motor), LENS modules, LCM assemblies, and other precision devices. Engineered to deliver stable, high-speed, and high-accuracy glue dispensing, the FS600 series equipment addresses the unique needs of optical manufacturers where particle contamination and bonding precision are critical.

 It’s an ideal choice for factories producing high-end camera modules, sensors, and display optics where cleanroom compatibility, consistent dot size, and precise bonding lines directly impact product quality.

Core Advantages

l Designed for Cleanroom Optical Production

Smooth mirror-finished surfaces and enclosed design help maintain clean conditions inside sensitive optical assembly lines.

l Stable Mineral-Casting Structure

High-grade mineral casting provides excellent anti-vibration performance, ensuring dot size consistency and preventing micro-movement errors.

l Flexible Process Configurations

Supports tilting heads for angled glue paths, optional bottom heating for faster flow and curing, and easy integration with inline UV or AOI inspection.

l Versatile Multi-Process Capability

From underfill to dam & fill, lens sealing, metal dome gluing, solder paste, and PUR adhesives—one system covers a wide range of optical assembly tasks.

Typical Applications

✔ CCM (Compact Camera Module) underfill and lens gluing
✔ VCM (Voice Coil Motor) module encapsulation
✔ LENS/LCM (Lens and Display Module) sealing
✔ Metal dome gluing for precision tactile components
✔ FPC bonding and reinforcement
✔ Dust-catching glue lines for clean optical edges
✔ PUR adhesive dispensing for middle bezels
✔ High-accuracy solder paste deposition in optical PCBs

Technical Specifications

FAQ

Q1: How does the FS600 series maintain cleanroom standards?
A: The entire system uses enclosed designs and mirror-finished surfaces to minimize dust accumulation. Its mineral structure dampens vibrations, which can generate particles, ensuring optical components stay protected.

Q2: What makes it suitable for optical glue processes?
A: The combination of high-precision motion, stable platform, tilting head, and bottom heating supports glue types like underfill, dam & fill, and lens adhesives that require micro-level consistency.

Q3: Can it be integrated into my existing SMT or LED line?
A: Yes! The FS600A fully supports SMEMA standards, inline UV, AOI, MES, and ERP connections, making it easy to add to your current optical or PCB assembly lines.

Q4: Is it suitable for multiple glue types?
A: Absolutely—whether you need solder paste, PUR adhesive, lens glue, or dam & fill materials, the FS600A’s flexible design and temperature control modules adapt to diverse process needs.

Conclusion

Whether you produce compact camera modules, voice coil motors, or advanced optical displays, the FS600 series Inline Visual Dispensing Machine delivers unmatched precision, cleanroom stability, and process flexibility—empowering your optical manufacturing to meet today’s strictest quality standards.
