Advanced Optical and Electronics Assembly Inline Precision Dispensing Machine

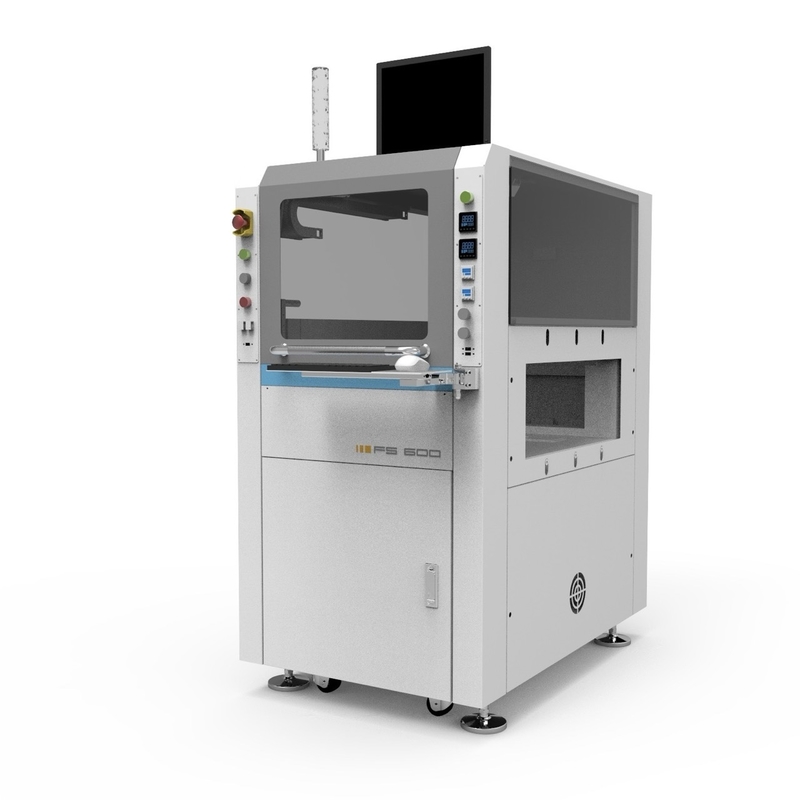

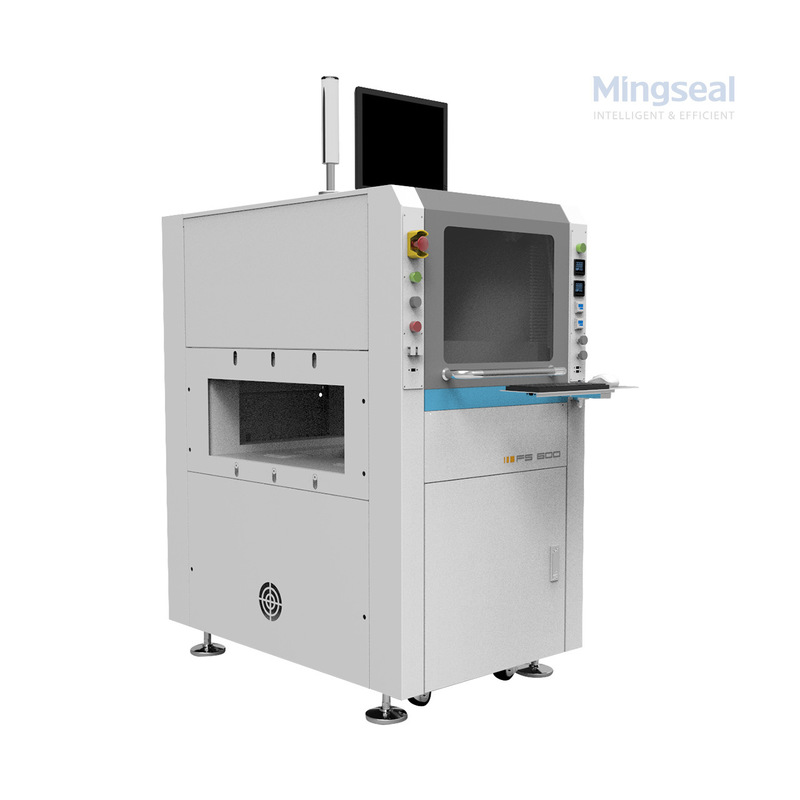

The FS600 Series Inline Visual Dispensing Machine is a high-speed, fully-automatic dispensing solution engineered for precision assembly in industries such as optics, displays, semiconductor modules, and LED production lines. Designed for high-volume, clean-room manufacturing, the FS600 series combines stable high-accuracy fluid control with robust inline automation, helping factories meet rising demands for miniaturized, reliable electronic components. This flexible dispenser also supports tilting operations for complex work angles, bottom heating to optimize adhesive flow, and real-time connectivity to MES systems for total production traceability. With smooth carrier handling and easy adjustment for track height and width, the FS600 series machine delivers a competitive advantage to modern consumer electronics industry.

Core Advantages

• Exceptional Speed & Accuracy

  Repeatability as tight as ±0.01mm on X/Y and ±0.015mm on Z-axis enables precise glue paths, dots, and fill lines — essential for sensitive optics and fine-pitch soldering.

• Smart Visual Monitoring

  High-resolution mark recognition and workpiece detection ensure every cycle hits target positions—whole process inspection safeguards product yield.

• Flexible Heating & Tilting

  Optional bottom heating supports high-viscosity adhesives or solder pastes, while tilting capability allows clean application on sloped surfaces or edges.

• Smooth Integration with Smart Factories

  Real-time MES connectivity supports traceability and quality data capture, streamlining smart manufacturing goals.

Typical Applications

✔ Underfill
✔ Dam&Fill
✔ Lens Gluing
✔ Dust-Catching Gluing
✔ Solder Paste Dispensing
✔ SMD Encapsulation
✔ PUR Adhesive Dispensing for Middle Bezel
✔ FPC Component Reinforcement
✔ Vent gluing
✔ Metal dome gluing

Core Modules



T/R Module

Suitable for side dispensing process


360° Rotation Module

Suitable for 360° obstacle-avoidance dispensing process

Track Conveying Module

Product positioning and conveying function

Optional single-track/double-track modes

FAQ

Q1: What makes the FS600 series different from other inline dispensers?
A: It combines high repeatability, stable operation, flexible heating and tilting modules, plus MES compatibility — all in one robust inline package.

Q2: Can the FS600 series handle multiple adhesive types?
A: Yes — it’s suitable for solder pastes, UV adhesives, PUR glues, and protective coatings, with optional heating for improved flow.

Q3: Is the FS600 series easy to integrate with existing lines?
A: Absolutely. Its adjustable track height and width, plus smart conveyor handling, make it simple to pair with modern SMT or optical module assembly lines.

Q4: What kind of inspection does it support?
A: It includes visual mark detection, process inspection before and after dispensing, and can output data to MES for full traceability.
