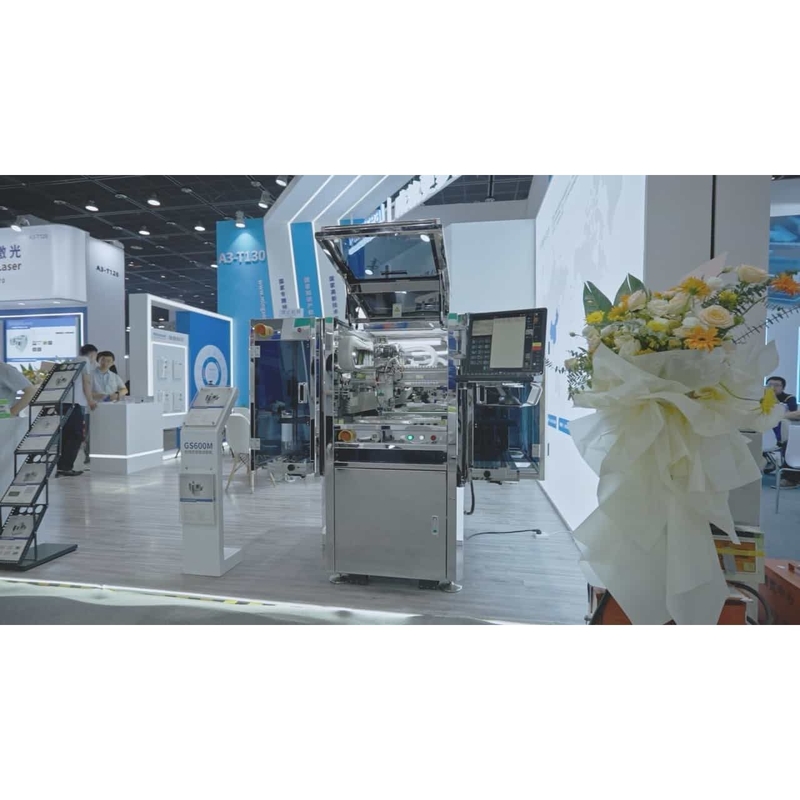

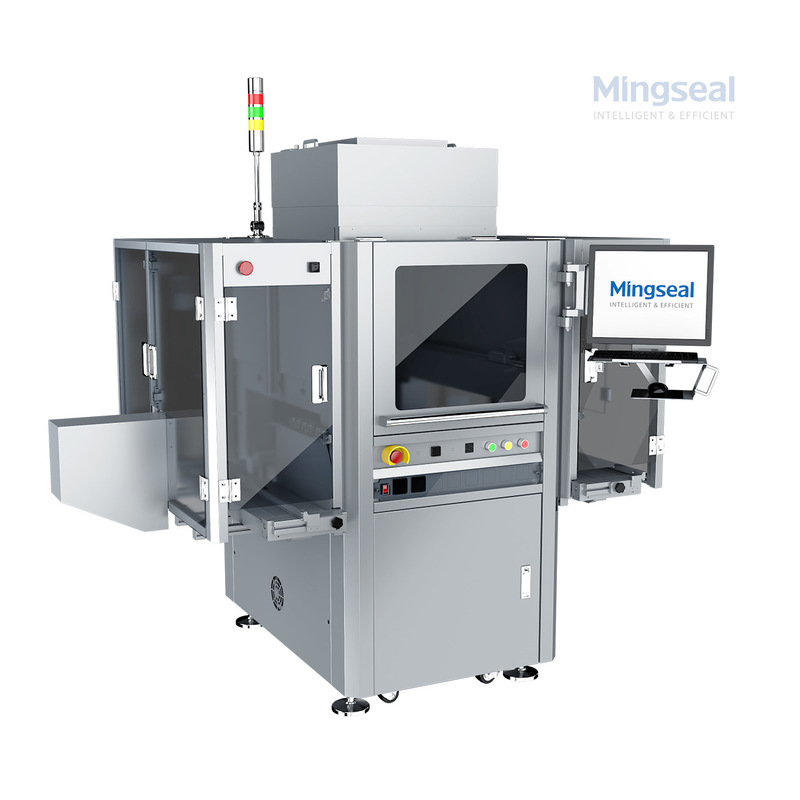

Speaker & Receiver Assembly Lines Inline Visual Dispensing Machine
Modern speaker and receiver manufacturing lines demand high-speed, precise, and reliable adhesive dispensing combined with consistent inline inspection. The Mingseal GS600 Series Inline Visual Dispensing Machine is specifically designed to meet these requirements for high-volume audio device assembly and related electronics.
With the option for single or dual valve configurations, the GS600M easily adapts to various adhesive types and application volumes. To enhance process safety, the GS600M is equipped with low-level glue alarms and real-time visual monitoring modules, minimizing downtime and reducing the risk of faulty batches. Combined with industry-standard conveyors and smart factory integration, the GS600M is the perfect fit for speaker, receiver, and other precision audio component assembly lines.
Key Advantages
Typical Applications
✔ Speaker housing bonding and sealing
✔Receiver assembly bonding
✔Audio component casing and gasket sealing
✔Inline adhesive application with automatic inspection
✔Multi-stage adhesive processes with series-linked machines
Key Specifications
|
Motion System |
Transmission System |
X/Y:Linear motor Z:Servo motor&Screw module |
|
Max. Dispensing Range |
X*Y: 280*170mm (Single track) --with loaing & unloading |
|
|
X*Y: 360*520mm/ 360*215mm (Single/ Double track) -- w/o loading & unloading |
||
|
Effective travel |
X*Y: 380*610mm |
|
|
Repeatability (3 sigma) |
X/Y≤±10μm, Z≤±10μm |
|
|
Positioning Accuracy |
X/Y≤±15μm, Z≤±15μm |
|
|
Max. Speed |
X/Y: 1300mm/s, Z: 500mm/s |
|
|
Max. Acceleration |
X/Y: 1.3g, Z: 0.5g |
|
|
Correction System |
Visual Positioning Method |
Mark/ Product Appearance |
|
Fly-align Positioning |
max: 300m/s |
|
|
Laser Altimetry |
Measurement Range: ±5 mm, Repeatability Accuracy 1μm, Sampling Frequency: 2k |
|
|
Track System |
Number of Tracks |
Single track / Double tracks |
|
Track Parallelism |
Widest to Narrowest: < 0.1 mm |
|
|
Width Adjustment Range |
40-170mm |
|
|
Side Pushing Accuracy |
≤0.02mm |
|
|
Loading & Unloading Module |
Suspended loop-type / Floor-standing loop-type loading & unloading, Touchable screen teaching |
FAQ
Q1: What makes the GS600M ideal for speaker and receiver production?
A: It’s designed to support continuous, high-speed inline operations with precise glue dispensing and automated optical inspection to guarantee high product yield.
Q2: Can I expand production with this machine?
A: Yes! Multiple GS600M units can be connected in series to create a fully automated line, matching different production capacities without sacrificing quality.
Q3: How does the AOI help?
A: The built-in AOI module automatically checks glue placement, fill levels, and coverage in real time, ensuring only perfectly processed units move to the next step.
Q4: How does this machine integrate into my existing production?
A: The GS600M is fully compatible with standard SMT and inline conveyor systems and supports MES connections for easy smart factory integration.
About Mingseal
Mingseal is an innovative manufacturer of inline and desktop precision dispensing equipment, trusted by electronics, audio device, and precision assembly companies worldwide. With industry-leading design, modular configurations, and strong local support in Asia, Europe, and North America, Mingseal helps factories boost output, lower costs, and achieve better quality control.
Contact Mingseal today to discover how the GS600M Series can enhance your speaker and receiver assembly lines with stable, high-yield, and smart dispensing.
