| Brand Name: | Mingseal |
| Model Number: | DC600 |
| MOQ: | 1 |
| Price: | $750-$10000 / pcs |
| Delivery Time: | 5-60 Days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
This 15W Automatic Precision Glue Dispensing Controller is designed for high‑repeatability adhesive deposition in electronics manufacturing, including PCB component fixation, connector potting, and small plastic part bonding. The unit provides precise pulse width and pressure control, supports common valve types, stores dispensing recipes for fast product changeover, and offers standard digital and serial interfaces for line integration and traceability.
Problem (one sentence): In electronics assembly, inconsistent glue volume or placement leads to rework, device failure, and increased costs.
Cause (one sentence): Variability is often caused by inadequate pressure resolution, slow valve response, temperature‑dependent viscosity changes, and lack of inline verification.
Solution (one sentence + steps): The 15 W controller stabilizes dispensing with fine pulse/pressure control, supports fast valve drivers to reduce stringing, and enables recipe storage plus optional inline verification. Implementation steps: 1) select valve/nozzle matched to required dot size; 2) run a viscosity vs. temperature characterization; 3) tune pulse width and pressure during pilot runs and save recipe to MES; 4) use vision or flow feedback to close the loop where needed.
Precise micro‑dispense control suitable for small‑pitch PCBs and connector glue dots.
Low power 15 W heater/controller design for compact integration and lower energy use.
Recipe storage and quick recall for rapid product changeovers.
Multiple I/O and serial protocol options for PLC/MES connectivity.
Reduced stringing and variation when paired with fast valve cartridges and proper tuning.
|

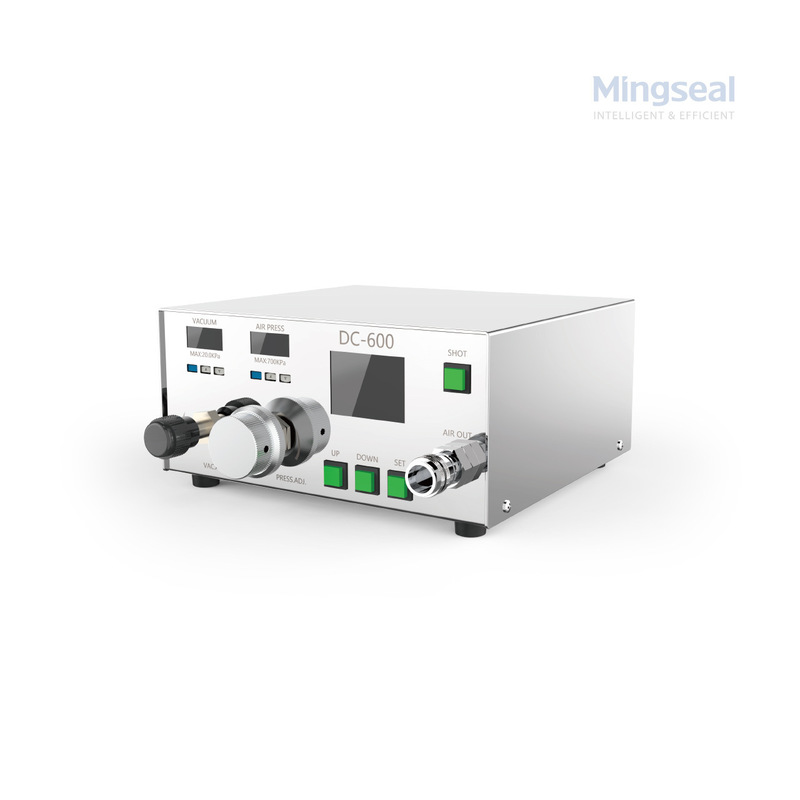

DC600 Desktop Dispensing Controller |
|
|
Dispensing Method |
Pneumatic pulse type |
|
Dispensing Channel |
Single-channel |
|
Dispensing Mode |
Timing mode (TIMED) / linkage mode (LINKAGE) |
|
Input Air Pressure |
0.1-0.7MPa |
|
Output Air Pressure |
0.05-0.6MPa |
|
Dispensing Delay Time |
0.01-99.99s |
|
Operating Power Input |
AC220V/50Hz |
|
Power |
15W |
|
Dimensions (W*D*H) |
245*192*95mm |
|
Weight |
2.5kg |
PCB component glue dots for fixation before soldering: reduces movement and tombstoning risk.
Connector potting and sealing: repeatable bead control for contact protection.
Small plastic part assembly in consumer electronics and sensors: compact unit fits inline conveyors and automation cells.
Recipe upload: operator or MES sends pressure/pulse program to the controller.
Controller action: the unit controls pressure and pulse timing to the valve driver per channel.
Dispense verification: optional inline vision or flow sensors measure deposit and provide feedback.
Data logging: parameters and batch info saved for traceability and QA.
Required deposit volume & tolerance: choose valve/nozzle and ensure controller resolution meets target repeatability.
Valve compatibility: confirm electrical and mechanical compatibility with your valve cartridges.
Integration: verify supported protocols (digital I/O, RS‑232/RS‑485, Modbus) for PLC/MES connection.
Throughput needs: confirm pulse response time and cycle rate to meet line takt.
Environmental demands: choose enclosure/IP options where dust or moisture is present.
Commissioning: perform pilot runs for 4–8 hours to stabilize melt and confirm repeatability; log results to MES.
Maintenance: clean nozzles per adhesive vendor guidance; inspect seals and valve cartridges on a regular schedule (weekly for high‑use lines).
Spare parts: stock valve cartridges, seals, filter elements, and fuses.
Q: What adhesives are supported?
A: Typically supports common electronics adhesives; verify viscosity vs. temperature and run sample validation before production.
Q: How do I calculate dispense volume per pulse?
A: Use valve flow characteristic, pressure and pulse width. Perform a gravimetric or vision measurement during pilot runs to calibrate and store recipe values.
Q: Can this controller integrate with my MES?
A: Yes — the unit supports standard serial and digital I/O interfaces; confirm exact protocol options when ordering.
Q: How to reduce stringing?
A: Use fast valve response with optimized pulse widths, maintain correct glue temperature/viscosity, minimize nozzle‑to‑part distance, and consider inline vision for closed‑loop correction.
