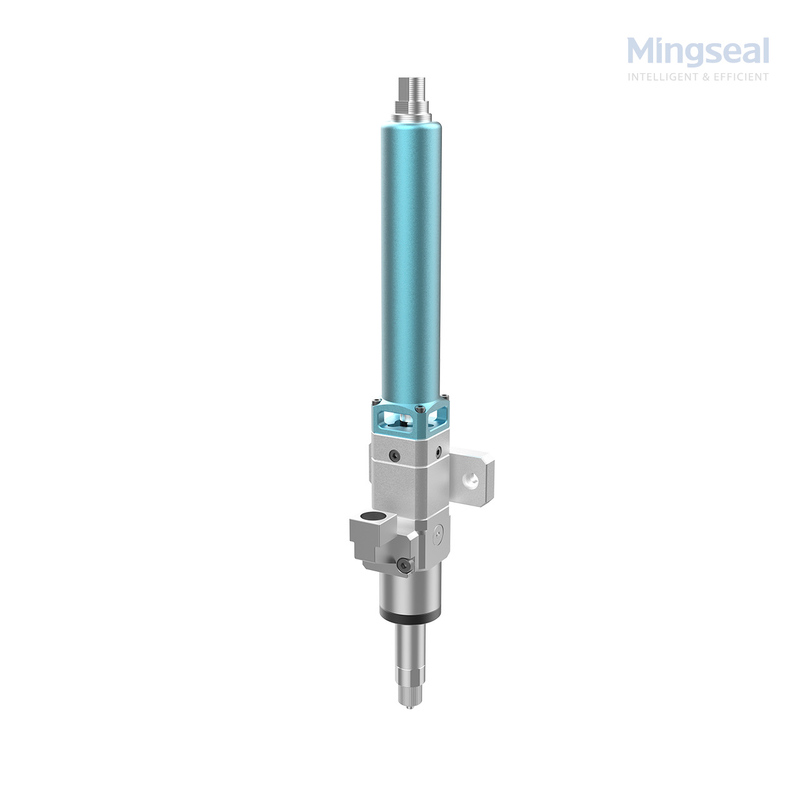

Precision Volumetric Auger Valve with 0.15-18ml/min Flow Rate and 15uL Minimum Dispensing for Automated Systems

Brand Name: Mingseal
Model Number: KSP0151
MOQ: 1sets
Price: $4000-$10000 / pcs
Delivery Time: 5-60days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO
Document:
KSP KDP Eccentric Screw Val...al.pdf
Product Name:
KSP0151 Micro Dispensing Screw Pump
Flow Rate:
0.15-18ml/min
Glue Output Per Cycle:
150uL
Minimum Dispensing Amount:
15uL
Power Supply:
AC85-264V 47-63Hz
Working Temperature:
10 ℃~40 ℃
Packaging Details:
Carton/Wooden box
Supply Ability:
200sets per month
Highlight:

Auger Valve 0.15ml/min

,

Auger Valve 18ml/min

,

liquid dispensing valve

Product Description
Dispensing Auger Valve 0.15 - 18ml/Min Automated Systems Liquid Dispensing Valve
Single-component dispensing valve KSP0151 compatible with automated systems
The KSP0151 Eccentric screw valve is a precision volumetric one-component screw valve, suitable for applications requiring high-precision dispensing of one-component fluids. It handles low, medium and high viscosity adhesives with exceptional accuracy.
Core Advantages
  • Cooling system reduces temperature in mixing tube to slow AB glue curing time
  • Volumetric screw rotation conveys low, medium and high viscosity fluids
  • Automatic level difference detection with over-threshold alarm and compensation
  • Constant flow unaffected by viscosity or level changes for accurate output
  • Supports standard MODBUS-RTU communication protocol
Main Applications
  • Conductive Adhesive Dispensing for Mobile Phone CCM Modules
  • Precision Bonding of Magnetic Pads for Smartphone Components
  • Thermal Interface Material (TIM) Coating on Mobile Phone Mainboards
  • Active Alignment (AA) Adhesive Dispensing for Automotive Cameras
Technical Parameters
Specification Value
Model KSP0151
Glue output per cycle 150μl
Volume flow 0.15～18ml/min
Minimum glue dispensing amount (volume) 15μl
Weight 450g
Operating pressure 0～0.6MPa (0～6bar)
Maximum output pressure 2.0MPa (20bar)
Drive system Brushless DC servo motor + Planetary reducer
Stator material FFKM
Operating temperature 10℃~40℃
Frequently Asked Questions
1. What is an eccentric screw valve and how does it work?
An eccentric screw valve is a volumetric dispensing valve that uses a rotor-stator system to transport fluid. As the rotor turns within the stator, it creates sealed cavities that move the fluid forward in a continuous, non-pulsating flow. This ensures accurate and repeatable dispensing, even for high-viscosity materials.
2. What types of fluids can the valve handle?
The valve is compatible with a wide range of single-component fluids, including:
  • High-viscosity adhesives (e.g., epoxy, UV glue)
  • Thermal greases and gap fillers
  • Conductive pastes
  • Silicone, grease, and sealants
  • Abrasive or particle-filled materials
3. What is the minimum and maximum dispensing volume?
Micro-volume models (e.g., KSP0150) can dispense as little as 1μL per shot, with flow rates ranging from 0.01 mL/min to several mL/min, depending on the rotor-stator size and motor speed.
4. How is material compatibility ensured?
The valve's wetted components, such as the stator, are available in chemically resistant materials like FFKM, which can handle aggressive adhesives and reactive fluids without degradation.
5. What maintenance is required?
The valve is designed for long service life with minimal wear. Routine maintenance typically involves periodic cleaning and inspection of the rotor-stator unit, especially when dispensing reactive or fast-curing materials.
About Mingseal
Founded in 2008, Changzhou Mingseal Robot Technology Co., Ltd. is a technology-driven manufacturer of high-end equipment, specializing in connection, assembly, inspection systems, and key components for advanced semiconductor packaging and precision electronics. Our solutions are widely adopted by leading customers in sectors such as semiconductor packaging, consumer electronics, and automotive electronics. With a strong presence across Asia and the Americas, we deliver reliable support and innovation globally.
Partner with Mingseal to power the future of automatic manufacturing!
