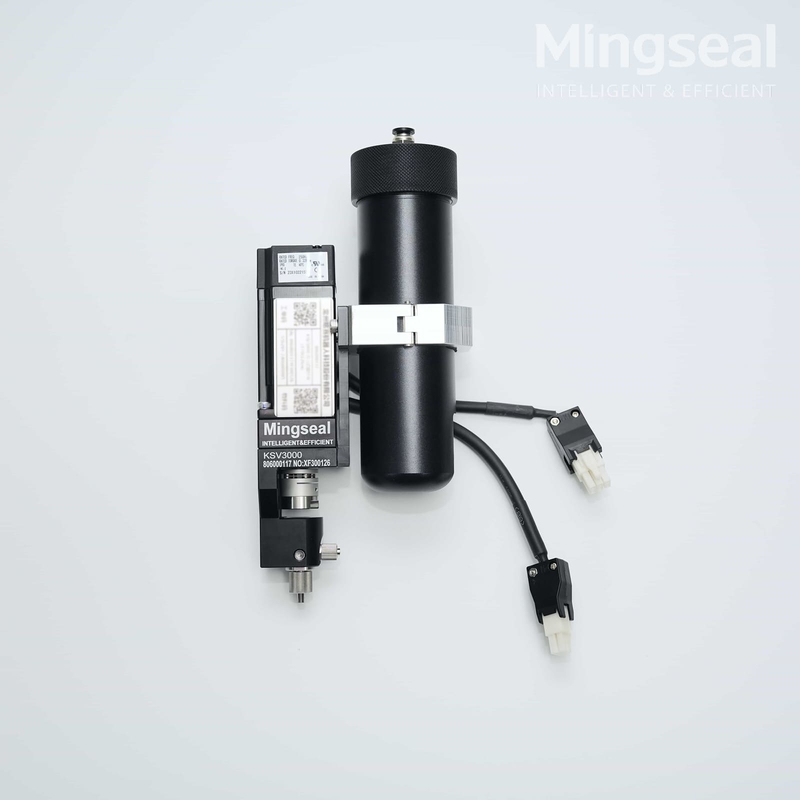

Created with Pixso. Servo Driven Auger Valve — 98% Repeatability for Stable Production Dispensing

Servo Driven Auger Valve — 98% Repeatability for Stable Production Dispensing

Brand Name: Mingseal
Model Number: KSV1000, KSV3000
MOQ: 1set
Price: $4000-$10000 / pcs
Delivery Time: 5-60days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Place of Origin:
China
Certification:
ISO, CE
Product Name:
High Precision Concentric Screw Valve Concentric Structure For Stable Flow
Work Type:
Screw Type
Rotator Speed Range:
10~500 Rpm
Glue Range:
5000-500000 Cps
Stator Material:
Stainless Steel
Screw Material:
Tungsten Steel
Valve Dimension (W/O Trigger Cords):
37 ×230×85mm (W×H×D)
Controller Dimension (main Body):
240 × 100×260mm (W×H×D)
Packaging Details:
Carton/Wooden box
Supply Ability:
200sets per month
Highlight:

KSV servo driven auger valve

,

concentric screw valve for smart

,

concentric auger valve

Product Description

Product Overview

This auger valve uses a brushless servo drive and positive displacement feed to give stable, repeatable material delivery. Designed for production use, the unit supports a wide range of adhesives and pastes and mounts easily on robot end effectors. The focus on repeatability reduces rejects and minimizes per‑part variation on long runs.


Problem

Many dispensing stations see variation in deposit volume and bead shape over time, causing rework and lost yield.


Cause

Volume drift commonly results from uneven feed, pressure pulses, or uncontrolled drive speed. Small disturbances become visible on tiny pads or when many parts are processed in sequence.


Solution

This servo driven auger valve pairs tight motor control with a positive displacement head so flow follows rpm precisely. The result is consistent per‑shot volume and stable continuous beads with minimal tuning. Quick‑disconnect access and standard nozzle adapters make maintenance and changeover fast.


Technical Parameters

Type Model Max.flow rate Mini.dispensing amount Applicable fluids Applicable needles
Non-wear resistant KSV1000-U 120μl/s 2μl UV thermosetting glue, silica gel Luer-type
Non-wear resistant KSV1000-T 120μl/s 2μl Grease, red glue, etc. T type
Wear resistant KSV1000-T05 30μl/s 0.5μl Solder paste, Silver paste, etc T type
Wear resistant KSV1000A-U 120μl/s 2μl Thermal grease Luer-type
Wear resistant KSV1000A-T 120μl/s 2μl Thermal glue, etc. T type
Wear resistant KSV3000 360μl/s 20μl Medium & high flow, TIM glue Luer-type
Hot melt KSV1000-R 120μl/s 2μl For PUR glue Luer-type

Application

  • Precision adhesive dots for PCB, connector, and sensor assembly.
  • Reproducible bead starts for potting and gap filling.
  • Automated dispensing in robotic workcells where consistent per‑part dosing is critical.
  • Pilot and production lines that require low variation and easy maintenance.


How It Works

The auger screw rotates to move material forward at a rate set by servo rpm. Encoder feedback keeps motor speed stable so delivered volume is proportional to rpm. For per‑cycle dosing, the controller runs a timed motor pulse to deliver the set volume. The short fluid path and positive displacement reduce air sensitivity and avoid pressure pulses at the nozzle.


How To Choose

  1. Confirm target deposit size per part and choose a nozzle diameter to match bead width.
  2. Provide fluid viscosity at working temperature and any filler content to verify auger clearance and wetted material.
  3. Decide feed method: pressure pot for long runs or gravity pot for bench use. Use a stable regulator if pressure feeding.
  4. Check robot flange and electrical interface; we advise encoder feedback for closed‑loop verification.
  5. Request a bench test for filled or marginal fluids to confirm repeatability and nozzle life.


FAQ

Q1: What does 98% repeatability mean for my line?
A1: It indicates low shot‑to‑shot variation once the system is tuned and feed is stable; actual numbers depend on fluid and nozzle choice.

Q2: How small a deposit can this valve make?
A2: Typical minimum deposits range from about 5–15 µL depending on nozzle and pulse tuning. For smaller nL work consider a piezo valve.

Q3: Can it handle filled adhesives?
A3: Yes for mildly filled materials; use coated wetted parts and request a bench wear test for abrasive fillers.

Q4: Is encoder feedback required?
A4: Encoder feedback improves closed‑loop stability and makes repeatability easier to achieve; we recommend it for tight tolerance production.

Q5: Do you offer sample testing?
A5: Yes. Send your fluid spec (viscosity at working temp and SDS) and target deposit; we will run bench tests and return settings and logs.


About Mingseal

Founded in 2008, Changzhou Mingseal Robot Technology Co., Ltd. is a technology-driven manufacturer of high-end equipment, specializing in connection, assembly, inspection systems, and key components for advanced semiconductor packaging and precision electronics. Our solutions are widely adopted by leading customers in sectors such as semiconductor packaging, consumer electronics, and automotive electronics. With a strong presence across Asia and the Americas, we deliver reliable support and innovation globally.
Partner with Mingseal to power the future of automatic manufacturing!
