Flexible 2-Channel Automatic Dispensing Controller for CCM, VCM, Display, Speaker

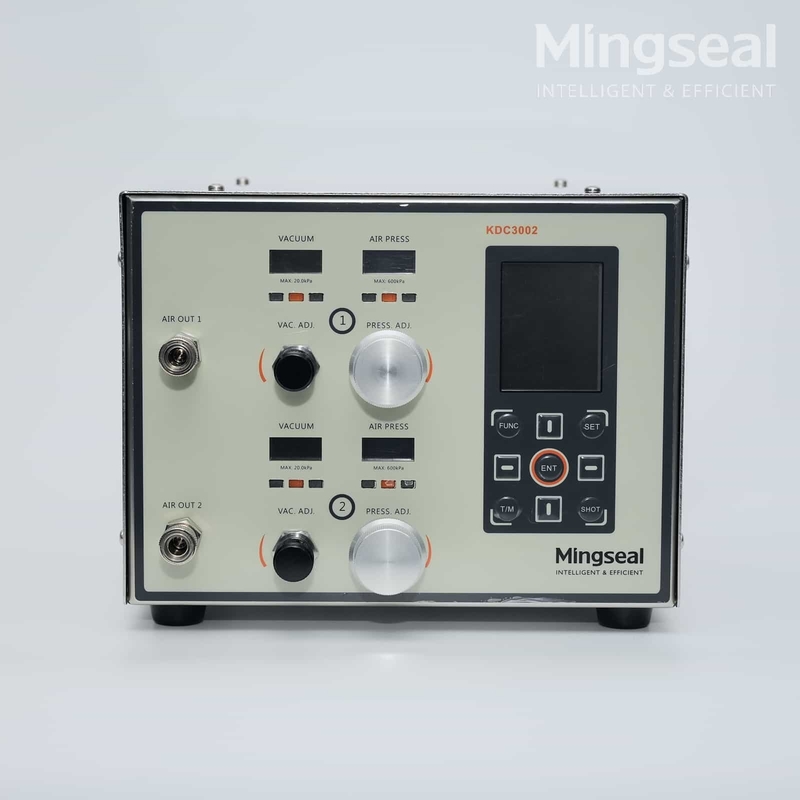

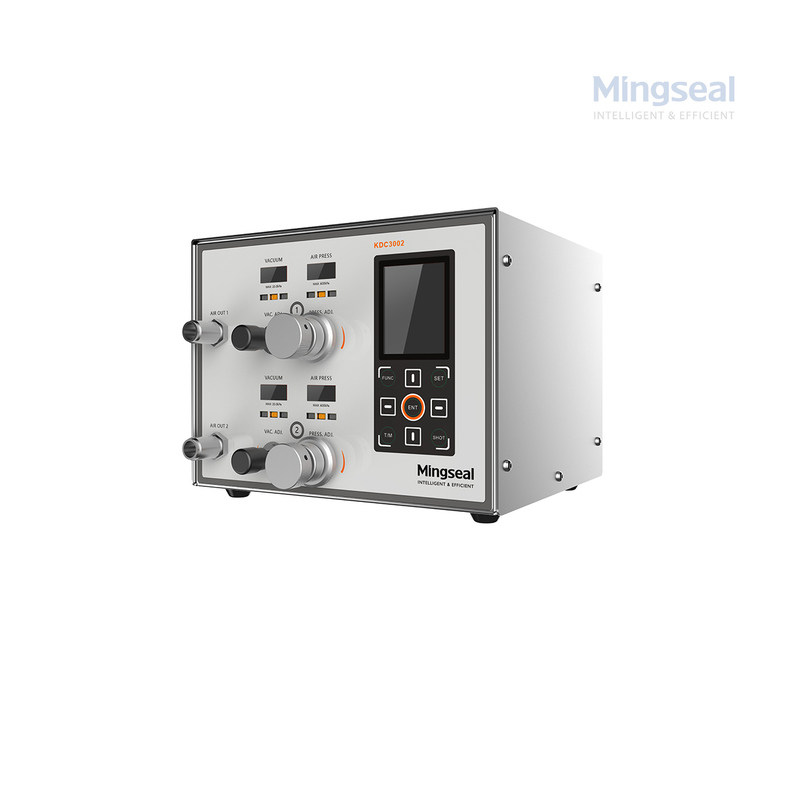

KDC3002 automatic dispensing controller is a compact two-channel time-pressure dispensing system designed for multi-barrel, parallel dispensing applications. Instead of using multiple single-channel controllers, KDC3002 allows centralized control of two dispensing channels in one integrated unit, significantly reducing equipment footprint and simplifying installation. It connects easily to a common air source and power supply, streamlining pipeline layout. Each channel operates independently, supporting separate parameter settings, dispensing time, and both dispensing and vacuum suction pressure adjustments—ideal for synchronized or asynchronous high-precision fluid control.

Core Advantages

• The controller has gas and electricity separated inside.
• The discharge pressure adjustment range is 0.05-0.6MPa, suitable for fluids of different viscosities.
• Adopts high-precision pressure-stabilizing valve, with pressure stability accuracy of ±0.5%.
• Parameters can be preset, easy to switch, with dispensing delay function, more accurate control of dispensing amount.
• Supports manual and automatic dispensing functions, supports I/O control.

Main appliaction

• Camera module(CCM)
• PCB/FPC
• VCM
• Micro vibration motor
• Micro speaker
• Display

Applicable fluids

Epoxy glue, UV glue, hot melt glue, thermosetting glue, silver glue, ink, silicone, flux, red glue, conductive epoxy resin,etc.

Technical parameters

FAQ

Q1: What types of fluids can be used with a 2-channel time-pressure dispenser?
A1: The dispenser supports a wide range of medium to high-viscosity fluids, including UV adhesives, silver paste, thermal interface materials, and even hot melt adhesives when equipped with heating modules.

Q2: Is the dispenser suitable for synchronized dispensing in high-speed production lines?
A2: Absolutely. The 2-channel design is ideal for synchronized jetting, offering high-frequency operation with excellent consistency, making it well-suited for high-speed SMT, camera modules, and microelectronics assembly.

Q3: How is maintenance handled for 2-channel dispenser?
A3: Only the nozzle and glue syringe need to be replaced or cleaned regularly to achieve a long-term and stable gluing process.
