| Brand Name: | Mingseal |
| Model Number: | KDC2200 |
| MOQ: | 1set |
| Price: | $750-$10000 / pcs |
| Delivery Time: | 5-60days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

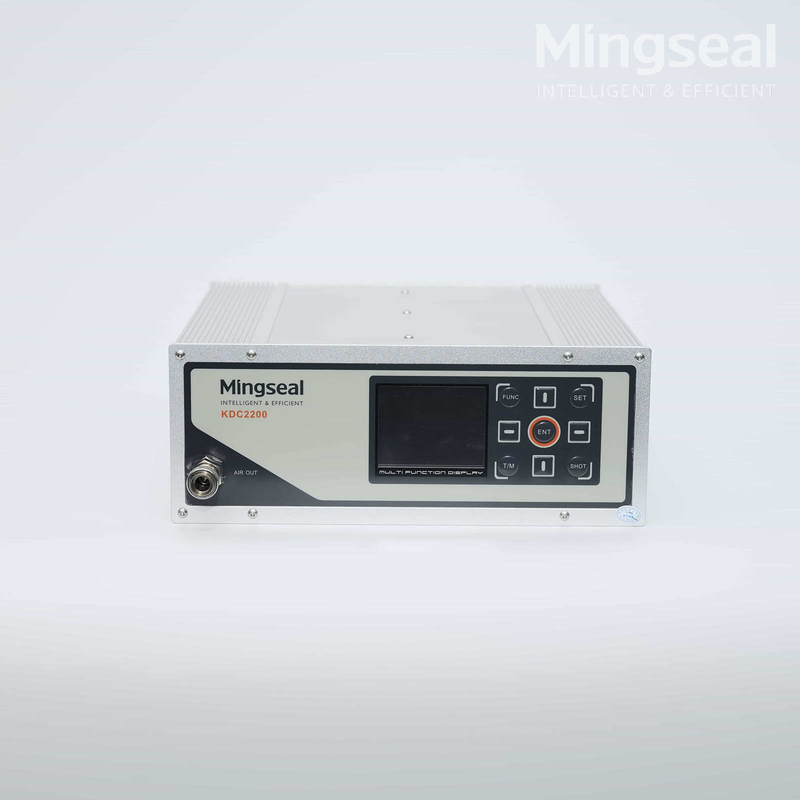

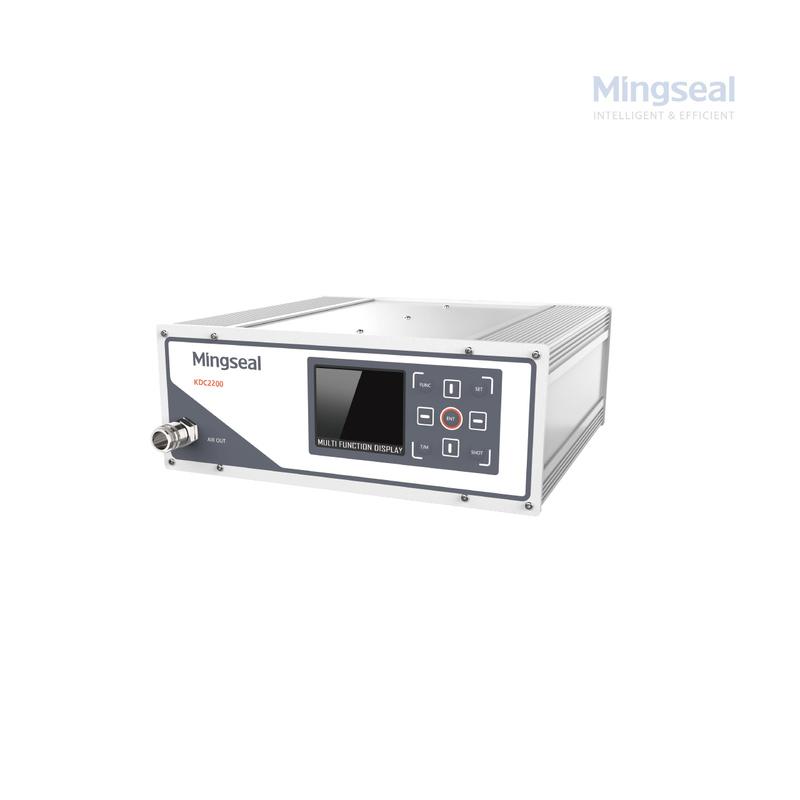

Easy Operation Glue Dispenser Controller for SMT, VCM, TWS, LED Dispensing
A pneumatic dispensing controller is a precision device designed to regulate fluid dispensing by controlling air pressure and valve timing. It enables accurate, repeatable, and efficient dispensing of adhesives, solder pastes, and other fluids in electronics assembly, LED packaging, automotive electronics, and medical devices. With simple operation, reliable performance, and compatibility with various pneumatic valves, this controller is ideal for both manual and automated production environments.
Core Advantages
◆ Low cost
◆ Easy to operate
◆ Strong versatility
◆ High stability
◆ Strong scalability
Main appliaction
Technical parameters
| Model | KDC2200 |
| Dispensing method | Pneumatic pulse type |
| Main function | Automatic back suction to prevent dripping, automatic residual alarm, glue amount compensation based on liquid level detection, etc. |
| Dispensing method | TIMED mode/LINKAGE mode |
| Working pressure input | 0.3-0.4MPa |
| Working pressure output | 0.03-0.5MPa |
| Dispensing time setting range | 0.001-999.9s |
| Vacuum suction pressure setting range | (-20-0)kPa |
| Storage channel | 100CH |
| Rated power and frequency | AC220V/50Hz |
| Rated power | 15W |
| Dimensions(W*D*H) | 260*252*100mm |
| Weight | 4.5kg |
| Communication interface | RS232/RS485 |
FAQ
Q1: Is a clean compressed air source required?
A1: Yes. Clean and dry compressed air is essential to prevent valve clogging, ensure stable dispensing performance, and extend the equipment’s service life.
Q2: Can it work with foot pedals or manual triggers?
A2: Yes. Most pneumatic controllers come with interfaces for foot pedal switches, allowing for manual dispensing in lab or low-volume production environments.
Q3: What is the recommended pressure range for operation?
A3: Typical working pressure ranges from 0.3 to 0.4 MPa, depending on the fluid type and valve used. Always follow the equipment's specifications.
