| Brand Name: | Mingseal |
| Model Number: | KDC3002 |
| MOQ: | 1set |
| Price: | $750-$10000 / pcs |
| Delivery Time: | 5-60days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

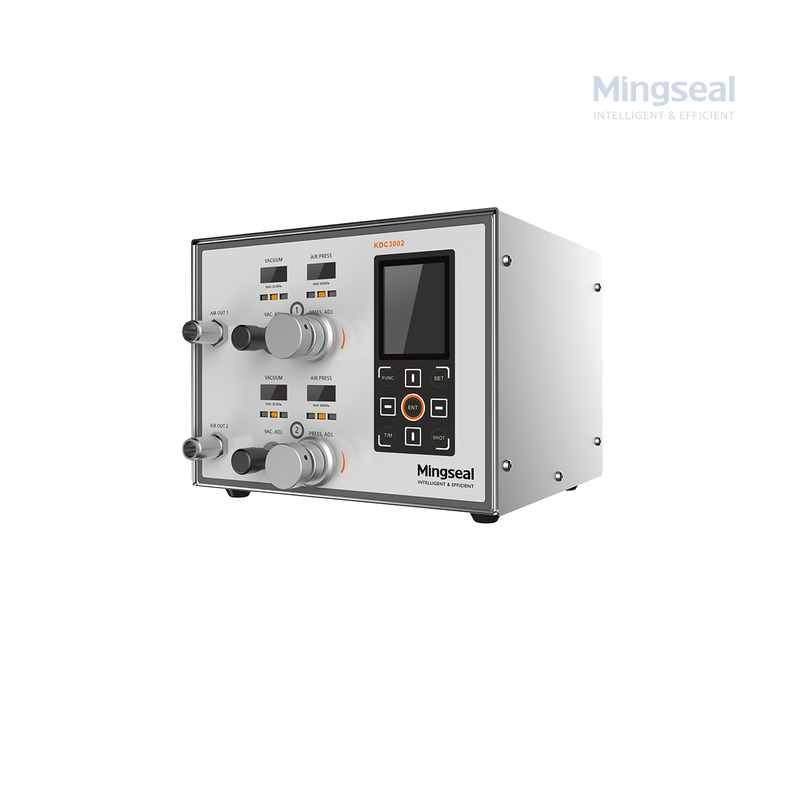

This flexible 2‑channel dispenser is engineered for coil‑coil membrane (CCM) speaker assembly and other small acoustic components. Each channel offers independent pressure/pulse control, rapid valve response to minimize stringing, and recipe storage for quick product changeovers. The system supports common valve types, PLC/MES connectivity, and optional vision or flow feedback for inline verification and traceability.
Variability in glue volume and placement during speaker assembly causes acoustic inconsistencies and higher scrap/repair rates.
Cause: Inconsistent pressure control, slow valve timing, and lack of inline feedback lead to dot/line volume variance at micro scale.
Solution: The 2‑channel system provides fine pressure/pulse control per channel, fast valve drive, and optional inline verification to stabilize deposit volume and position. Implementation steps: 1) select valve & nozzle for required dot size; 2) characterize glue viscosity vs. temperature; 3) tune pulse width and pressure during pilot runs and save recipes to MES.
Recipe & setup: load channel pressure/pulse parameters and nozzle mapping.
Dispense action: controller issues timed pulses to valve drivers per channel to produce precise micro‑dots or beads.
Verification (optional): inline vision/flow sensor measures deposit size/placement and feeds corrections to the controller or MES.
Trace & log: process data and recipes are logged for batch traceability.
Required deposit size & tolerance: determine target dot/line volume and choose valve/nozzle plus controller resolution that meets that tolerance.
Valve compatibility: confirm controller supports your valve type and driver electrical specs.
Channel needs: use 2 channels for staggered deposits or redundancy; select expansion options if future scaling is needed.
Integration: ensure PLC/MES protocol compatibility (Modbus/RS‑485, digital I/O).
Environmental rating: choose enclosure/IP options for dusty or humid production lines.
Applicable fluids
Epoxy glue, UV glue, hot melt glue, thermosetting glue, silver glue, ink, silicone, flux, red glue, conductive epoxy resin,etc.
Technical parameters
|
Air pressure Input |
0.1~0.7MPa |
|
Air pressure Output |
0.05~0.6MPa |
|
Disensing mode |
STEADY(Linkage)/TIME(Timing) |
|
Dispensing delay time |
0.01~99.99 s |
|
Power |
50W |
|
Working power input |
AC220V/50Hz/50Hz |
|
Size(W*H*D) |
255mm*280mm*200mm |
|
Weight |
3.5Kg |
FAQ
Q1: What types of fluids can be used with a 2-channel time-pressure dispenser?
A1: The dispenser supports a wide range of medium to high-viscosity fluids, including UV adhesives, silver paste, thermal interface materials, and even hot melt adhesives when equipped with heating modules.
Q2: Is the dispenser suitable for synchronized dispensing in high-speed production lines?
A2: Absolutely. The 2-channel design is ideal for synchronized jetting, offering high-frequency operation with excellent consistency, making it well-suited for high-speed SMT, camera modules, and microelectronics assembly.
Q3: How is maintenance handled for 2-channel dispenser?
A3: Only the nozzle and glue syringe need to be replaced or cleaned regularly to achieve a long-term and stable gluing process.
About Mingseal
Founded in 2008, Changzhou Mingseal Robot Technology Co., Ltd. is a technology-driven manufacturer of high-end equipment, specializing in connection, assembly, inspection systems, and key components for advanced semiconductor packaging and precision electronics. Our solutions are widely adopted by leading customers in sectors such as semiconductor packaging, consumer electronics, and automotive electronics. With a strong presence across Asia and the Americas, we deliver reliable support and innovation globally.
Partner with Mingseal to power the future of automatic manufacturing!
