| Brand Name: | Mingseal |
| Model Number: | VS300D |
| MOQ: | 1 |
| Price: | $6000-$50000 / pcs |
| Delivery Time: | 5-60 Days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

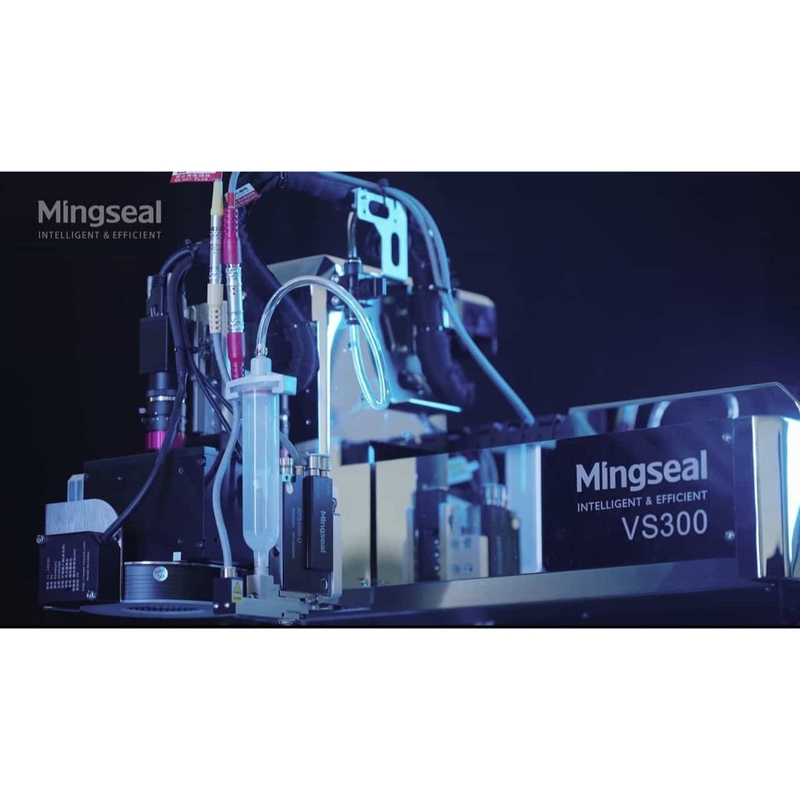

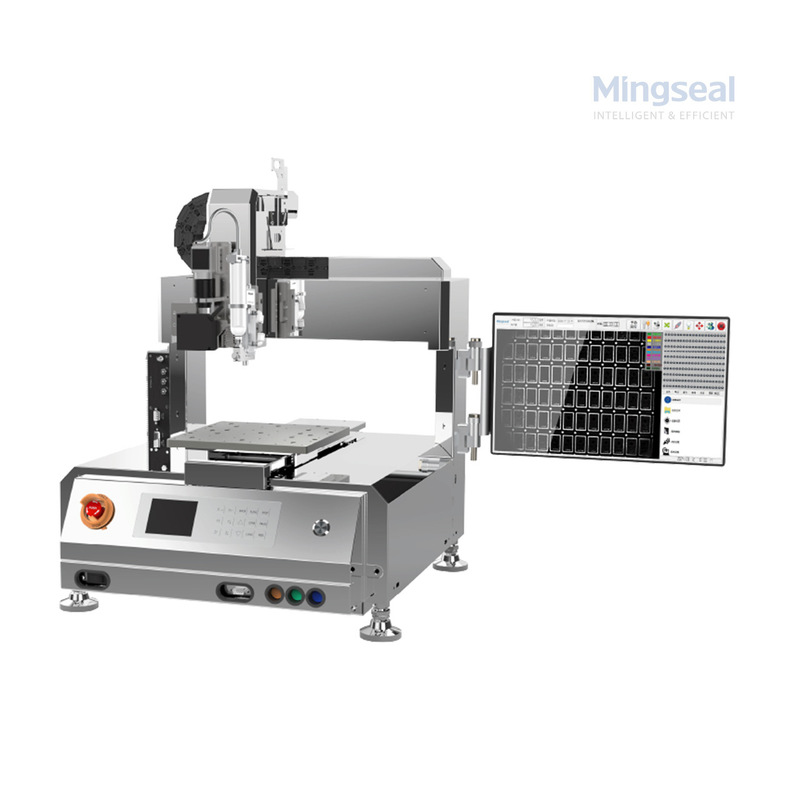

This Micro Desktop Glue Dispensing Machine combines a high precision metering head, syringe‑style supply (quick‑change cartridges), integrated vision alignment and an XYZ motion stage. It supports time/pressure/pulse/pump dispense modes, recipe storage, optional heated syringe sleeve for temperature‑sensitive adhesives, and standard industrial I/O for MES/PLC connectivity. Designed for benchtop R&D, pilot runs and small automated cells, it delivers repeatable micro‑dots and fine beads with minimal setup time.
Problem: Small‑scale production and R&D often suffer from inconsistent micro‑dots, placement errors and high sample discard rates.
Cause: Manual dispensing, unstable adhesive viscosity and lack of vision alignment produce volume variance and misplacement.
Solution: Use an automated desktop dispenser with syringe supply, temperature control and integrated vision to stabilize viscosity, precisely meter volumes, align to fiducials and save validated recipes for repeatable results.
Core Modules
360° Rotation Module
Suitable for 360° obstacle-avoidance dispensing process
Process Module
Precision tool setting sensor and glue discharge & cleaning modules adopted
Rotation Module
Continuous dispensing on the surrounding side walls of products can be achieved
T/R Module
Suitable for side dispensing process
Micro‑dot and bead dispensing for sensor modules, camera subassemblies and small optics.
R&D and pilot underfill/adhesive trials for semiconductor/packaging labs.
Small‑batch production of wearable electronics, TWS components and precision connectors.
Syringe load & temperature: install syringe cartridge; enable heated sleeve if needed to reach target viscosity.
Recipe & alignment: load or create dispense recipe; vision aligns part to fiducials.
Dispense action: metering head deposits dots/beads per programmed path while motion stage executes trajectory.
Verify & log: vision inspects deposits; batch data and recipe logs saved for traceability.
Adhesive type: use heated sleeve and piston/peristaltic pump for filled or thixotropic adhesives; choose piezo/valve for nano‑dots.
Placement tolerance: select vision alignment for tolerance <0.05 mm.
Throughput vs precision: pressure/time for higher throughput, piston/piezo for highest precision.
Syringe strategy: choose syringe volume and quick‑change plan to match pilot vs production run lengths.
Q: What adhesives are supported?
A: Supports epoxies, silicones, UV‑cure and hot‑melt adhesives in typical viscosity ranges; for filled adhesives use heated syringe and appropriate pump.
Q: What is the minimum deposit size?
A: Typical minimum volume ≥0.01 μL depending on nozzle and adhesive viscosity—confirm with sample validation.
Q: Can the machine integrate with MES?
A: Yes—supports digital I/O, RS‑485/Modbus and optional Ethernet/MES interfaces for recipe push and logging.
