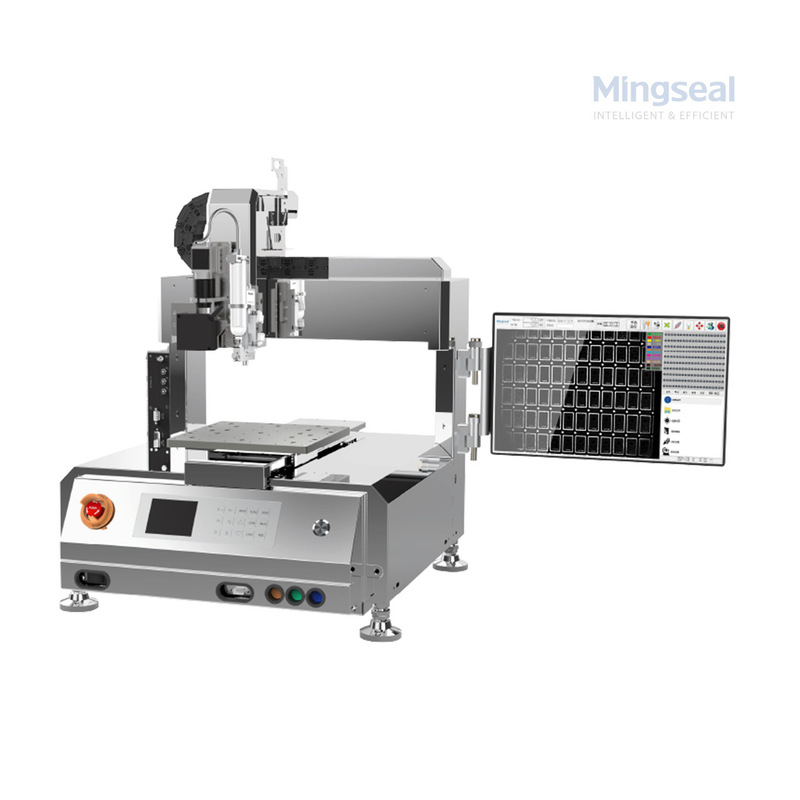

LiDAR & Automotive Desktop Glue Dispensing Machine — Automatic Precision Dispenser for Electronics

Product overview

This desktop glue dispensing machine is designed for precision adhesive application in LiDAR sensors, automotive ECUs and related electronic modules. The unit integrates a high‑precision metering head (pump or valve), syringe‑style supply (syringe cartridges for quick change), optional heated syringe sleeve for temperature‑sensitive adhesives, an XYZ motion stage, and an onboard vision alignment module. It supports recipe storage, pulse/pressure/time dispense modes and standard industrial interfaces for MES/PLC integration.

Problem → Cause → Solution

Problem: LiDAR and automotive modules require exact adhesive volume and placement; poor dispensing leads to optical misalignment, sensor drift, or reliability failures.
Cause: Manual dispensing, unstable material viscosity, and poor alignment result in voids, misplacement and inconsistent cures—especially with filled adhesives.
Solution: Use a closed‑loop automated dispenser with syringe supply and temperature control, precise metering, and vision alignment to stabilize viscosity, place adhesive accurately, and store validated recipes for repeatable production and traceability.

Technical Specifications

Applications

• LiDAR optical module adhesive bead and potting for lens/sensor sealing and vibration robustness.
• Automotive ECU potting, sensor sealing and adhesive dosing for connectors and housings.
• Small‑module bonding in ADAS, radar and optical sensor assembly where precision and traceability are required.

How it works

Syringe load & temp: install syringe cartridge(s); enable heated sleeve if required to reach target viscosity.
Recipe & alignment: load recipe or select preset; vision aligns part to fiducials.
Dispense action: metering head deposits dots/beads per path while motion stage follows programmed trajectory.
Verification & logging: vision inspects bead shape/placement; process data and batch logs saved for traceability.

How to choose

1. Adhesive type: for filled or thixotropic adhesives, use heated syringe sleeve and choose piston/peristaltic pump options; for micro‑dots, select piezo/valve.
2. Placement tolerance: choose vision alignment if placement tolerance <0.05 mm.
3. Throughput vs precision: trade off pump type and motion speed—pressure/time for throughput, piston/piezo for precision.
4. Syringe sizing: pick syringe volume and quick‑change strategy to match pilot vs production runs.

FAQ

Q: What adhesives are supported for LiDAR and automotive modules?
A: Supports common adhesives used in automotive electronics (epoxy, silicone, UV‑cure adhesives and filled formulations). For filled adhesives, run sample validation with heated syringe and recommended nozzle.
Q: Can the system integrate with MES and line controllers?
A: Yes—supports Digital I/O, RS‑485/Modbus and optional Ethernet/MES recipe push/pull. Confirm protocols at ordering.
Q: How small a dot can the machine dispense?
A: Minimum volume typically ≥0.01 μL with high‑resolution piston or micro valve setups; actual minimum depends on adhesive viscosity and nozzle.
