High Speed Automated Adhesive Dispensing System MiniLED FPC Epoxy Dispensing Equipment

High-Speed Inline Visual Dispensing System for MiniLED & FPC Applications

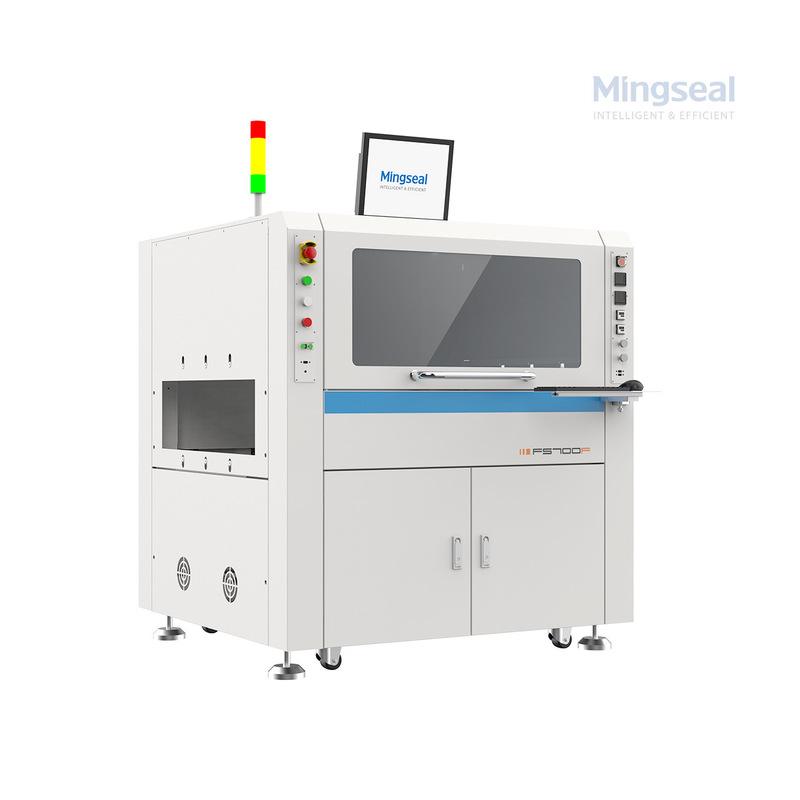

The FS700F Inline Visual Dispensing Machine is an advanced inline dispensing solution built to handle wide-format, high-precision production needs for industries such as MiniLED backlight manufacturing, power battery FPC assembly, and next-generation consumer electronics.

With a large dispensing range of 900 × 600 mm, automatic width adjustment, and smart visual alignment, the FS700F is perfectly suited for multi-size PCB and FPC boards. Its intuitive system supports real-time monitoring, recipe management, and seamless MES integration, enabling high-mix, high-volume lines to meet ever-increasing yield and traceability requirements.

Competitive Advantages

• Large-Area Precision Dispensing: Supports wide-format boards with stable motion and repeatability down to ±0.015 mm.
• Flexible Dual-Valve Mode: The system handles single or multi-step processes with valves running together or independently.
• Automatic Track Width Adjustment: Easily accommodates different panel widths (150–500 mm) without manual intervention.
• Integrated Visual Inspection: High-resolution camera system and optional RGB light source provide clear alignment for transparent or complex adhesive paths.

Main Application Areas

✓ FPC Component Encapsulation
✓ SMT Component Dispensing Protection
✓ MiniLED Dam & Fill Process
✓ Flip-Chip and BGA Underfill
✓ NTC Encapsulation

Core Modules

Double-Valve Synchronization Module-1

Synchronous operation of double valves (double heads with position compensation function)

More efficient operation

Double-Valve Synchronization Module-2

Synchronous operation of double valves (fixed distance between double valves)

More efficient operation


Double-Valve Asynchronization Module

Asynchronous operation of double valves

Completion of two dispensing processes in the same machine

Q&A

Q: How does FS700F ensure perfect glue control for large MiniLED panels?
A: Its stable gantry design, high-speed linear motors, and micron-level vision correction deliver precise glue lines and sharp edges—crucial for large backlight panels and fine-pitch LEDs.


Q: Why choose dual-valve synchronous/asynchronous dispensing?
A: This allows different glue tasks (e.g., Dam & Fill) to run at the same time or separately, maximizing UPH and reducing cycle time for multi-step processes.


Q: Is FS700F easy to integrate into an existing FPC line?
A: Yes—automatic track adjustment, real-time monitoring, and full MES connectivity make it an easy fit for high-mix lines in Southeast Asia and other dynamic electronics hubs.


Q: Can it handle various glue types?
A: The FS700F supports multiple adhesive viscosities, from underfill and Dam to transparent fillers, ensuring perfect compatibility for advanced electronic assemblies.

About Mingseal

Mingseal is a leading precision dispensing and micro-assembly solution provider, dedicated to delivering advanced, high-speed, and high-accuracy systems for industries like MiniLED, power battery FPC, semiconductor, and consumer electronics. Since 2008, we have supported clients across Southeast Asia and around the world with robust equipment, responsive service, and local technical support—helping them boost yield, reduce cycle time, and advance smart manufacturing.
