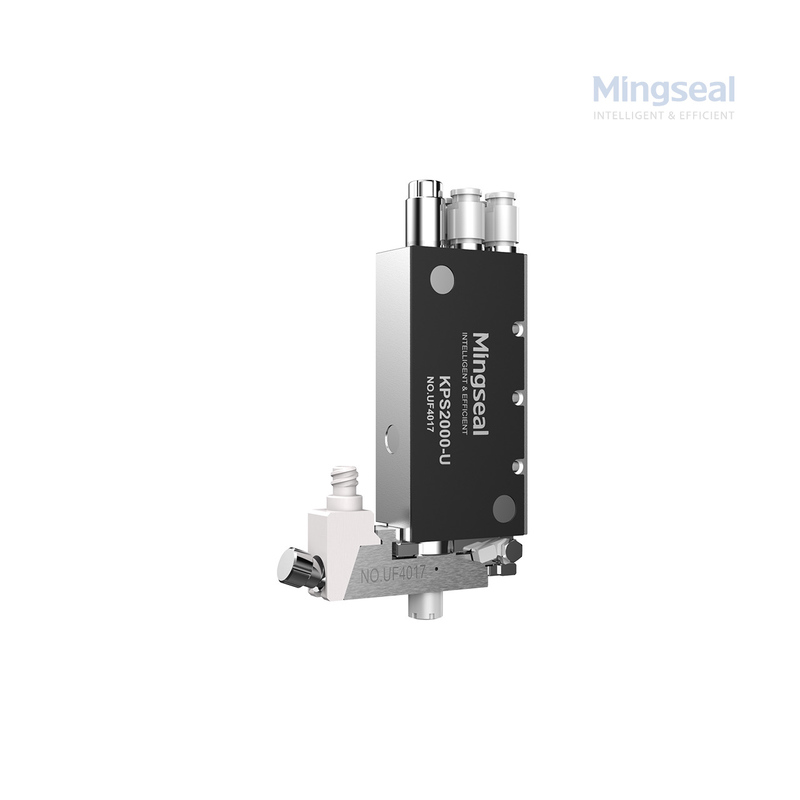

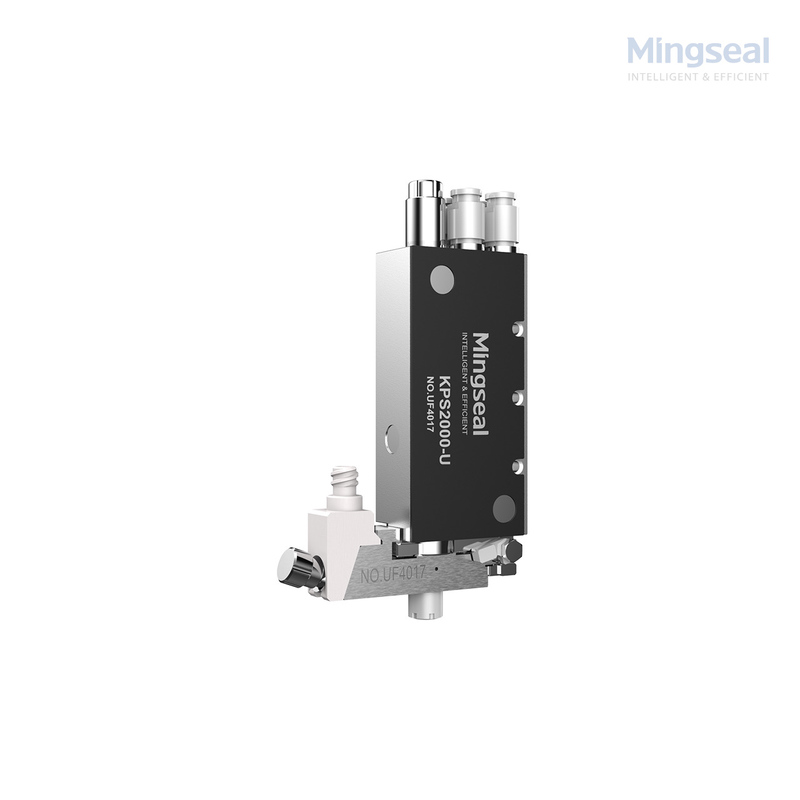

High precision Piezo Jet Valve for CCM/Camera Compact Module Application
Piezo jetting valves offer high-speed, non-contact dispensing for CCM (Compact Camera Module) assembly. Ideal for lens bonding, IR filter sealing, and VCM fixing, they deliver ultra-precise micro-droplets of UV or epoxy adhesives. With fast response, high repeatability, and compatibility with automated lines, piezo valves enhance yield and accuracy in miniaturized optical module production.
Core Advantages
Main appliaction
Technical parameters
| Model | KPS2000 |
| Input air pressure | 0.1-8Bar |
| Material viscosity | Medium or high viscosity media |
| Max.500000mPas | |
| Min.glue dot diameter | 0.15mm(Depending on glue) |
| Min.glue width | 0.17mm(Depending on glue) |
| Min.dispensing amount | 0.5nl(CPK>1.33) |
| Continuous jetting frequency | 1200HZ |
| Dimensions(W*D*H) | 125.5*40*20mm(Excluding fluid-box) |
| 125.5*75*20mm(Including fluid-box) | |
| Weight | 440g(With fluid-box) |
FAQ
Q1: Why is a piezo jetting valve preferred for adhesive dispensing in CCM assembly?
A1: Piezo jetting valves provide high-speed, non-contact dispensing with extremely small and precise droplet volumes , making them ideal for CCM processes like lens bonding, IR filter sealing, and VCM fixation, where accuracy and cleanliness are critical.
Q2: What types of adhesives are commonly used with piezo valves in CCM production?
A2: Typical adhesives include UV-curable adhesives (for lens bonding and filter sealing), black epoxy (for light-blocking), and structural epoxy (for motor module fixing). These adhesives usually have viscosities between 30–1000 cP and require precise volume control.
Q3: Can piezo valves handle high-speed production lines in smartphone camera module assembly?
A3: Yes. Piezo jetting valves are designed for high-frequency operation, enabling high-throughput dispensing while maintaining consistent droplet size and placement, even on fast-moving assembly lines.
Q4: How does non-contact dispensing benefit CCM manufacturing?
A4: Non-contact dispensing prevents damage or contamination to sensitive optical components like lenses and filters. It also allows for greater flexibility in dispensing on uneven or hard-to-reach surfaces.
Q5: What factors influence the performance of a piezo jetting valve in CCM applications?
A5: Key factors include fluid viscosity, nozzle size, drive waveform settings, temperature control, and droplet volume calibration. Proper setup ensures repeatability, avoids clogging, and maintains long-term reliability.
