| Brand Name: | Mingseal |
| Model Number: | FS700F |
| MOQ: | 1 |
| Price: | $28000-$150000 / pcs |
| Delivery Time: | 5-60 Days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

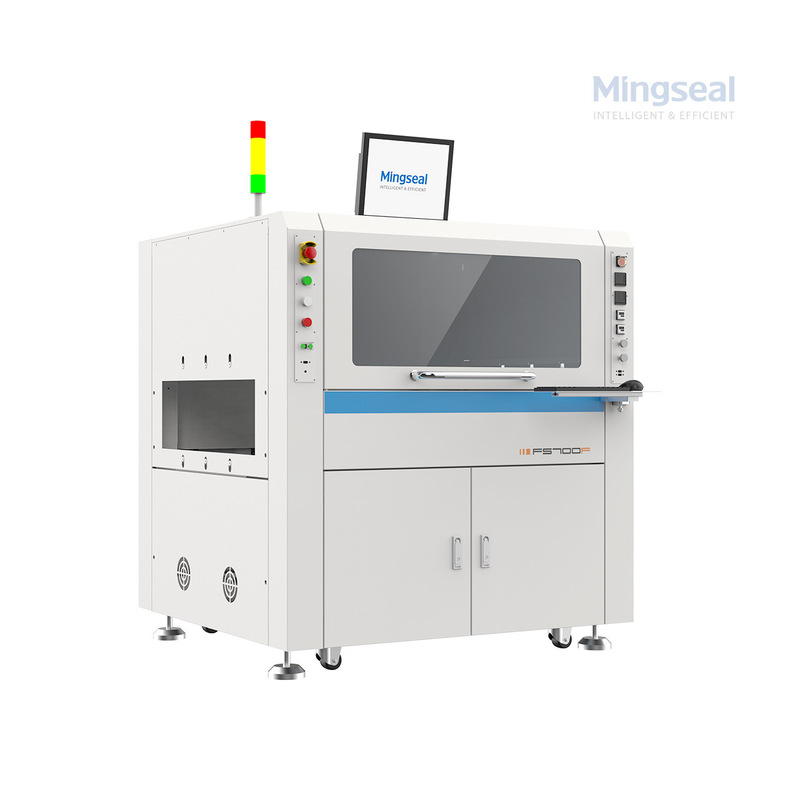

Inline Visual Dispensing Machine for Automotive Electronics FPC
The FS700 Series Inline Visual Dispensing Machine is a high-precision, high-efficiency dispensing solution specifically designed for the demanding requirements of automotive electronics, FPC module encapsulation, and large-format flexible circuits. Equipped with an advanced dual-valve system that supports synchronous operation, plus a smart visual positioning system with Y-axis compensation, the FS700F delivers precise, repeatable dispensing for complex processes such as NTC encapsulation, nickel sheet bonding, Dam & Fill, and flip-chip underfill.
Dual-Valve Synchronization: supports synchronous or independent operation, perfect for multiple adhesives or multi-stage processes.
Visual Alignment with Y-Axis Compensation: equipped with a high-resolution vision system and smart Y-axis position adjustment
Large Format, High Precision: 900 × 600 mm working area with ±0.015 mm repeatability
High Compatibility & Fast Changeovers: automatic conveyor width adjustment and a user-friendly control system
✓ Automotive FPC NTC Encapsulation
✓ Nickel Sheet Bonding for Battery Modules
✓ Dam & Fill for Power Electronics
✓ Flip-Chip Underfill
✓ Large PCB Adhesive Dispensing
✓ MiniLED and LED Automotive Lighting Modules
| FS700F Inline Visual Dispensing Machine | |
|---|---|
| Structure | Floor-mounted gantry (marble frame + mobile gantry) |
| Motion System |
X/Y: Linear motor + Raster ruler; Z: Servo motor + Screw module |
| Working Area | 900 × 600 mm (single valve) |
| Repeatability | X/Y: ±0.015 mm, Z: ±0.005 mm |
| Positioning Accuracy | X/Y: ±0.03 mm, Z: ±0.01 mm |
| Max Speed | X/Y: 1300 mm/s, Z: 500 mm/s |
| Max Acceleration | X/Y: 1.3 g, Z: 0.5 g |
| Track Width Adjustment | Automatic (150–500 mm) |
| Max Substrate Thickness | 0.5–10 mm |
| Conveyor Load | 5 kg |
| Power Supply | 220 VAC, 50 Hz, 3.5 kW |
Q1: How does the FS700 handle precision for automotive FPC modules like NTC or nickel sheets?
A: The FS700’s dual-valve system plus dynamic Y-axis adjustment ensures perfect alignment and consistent dispensing, even on long or flexible FPC panels.
Q2: Can it handle multiple adhesives or different processes at the same time?
A: Yes! The dual valves can run synchronously or asynchronously—ideal for Dam & Fill, underfill, and encapsulation on a single pass.
Q3: Is the FS700 easy to integrate into my existing automotive SMT line?
A: Absolutely. It comes standard with SMEMA-compatible interfaces, automatic conveyor adjustment, and MES-ready connections for traceability and full inline production.
Q4: What makes it a good fit for Southeast Asia automotive manufacturers?
A: The FS700 combines large-format flexibility, automotive-level precision, and easy operation—perfect for Tier 1 suppliers and factories in Malaysia, Vietnam, India, and other Southeast Asian markets looking to scale up smart manufacturing.
