| Brand Name: | Mingseal |
| Model Number: | FS800S12 |
| MOQ: | 1set |
| Price: | $28000-$150000 / pcs |
| Delivery Time: | 45-60days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

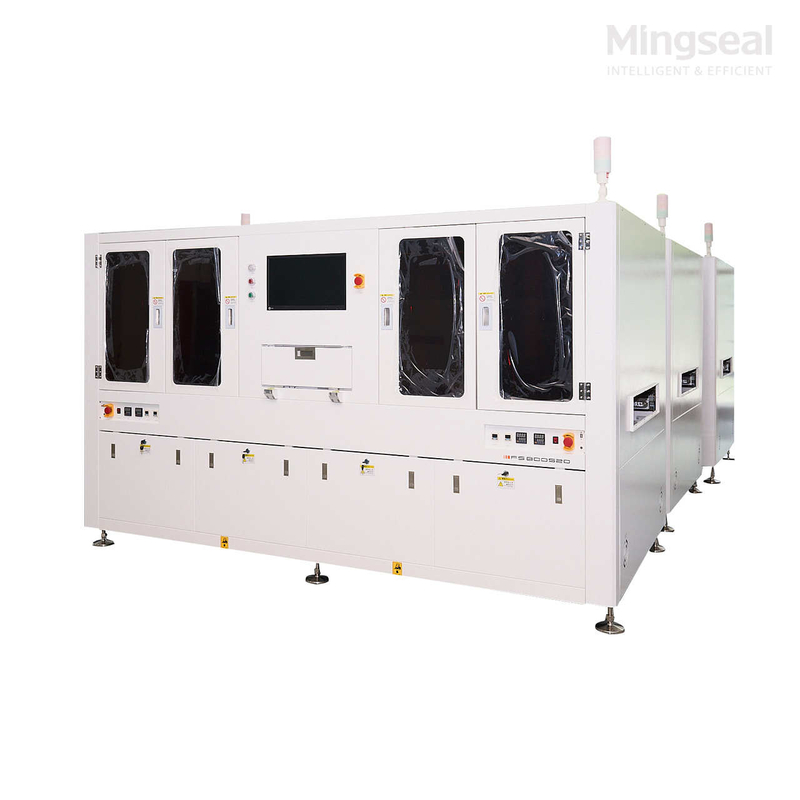

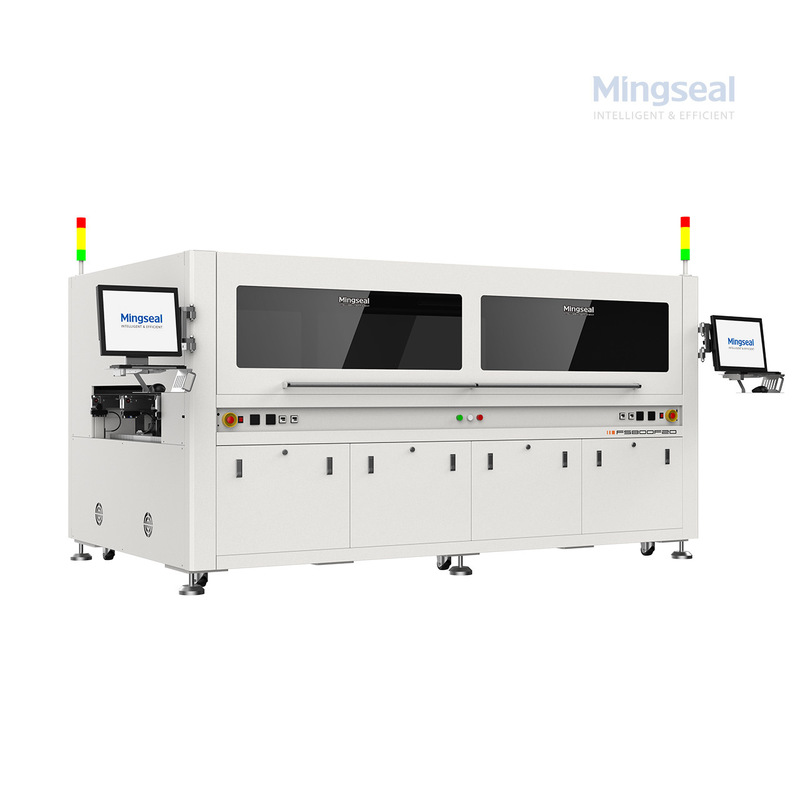

FS800S12 Cabinet type Large Stroke Dispensing Machine in New energy FPC industry
The FS800S12 is a high-speed, high-precision, and cost-effective inline dispensing system specifically developed for the new energy FPC industry. Designed in a floor-standing gull-wing layout, this large-format dispensing machine offers a generous working area of 1250×800mm, ideal for oversized or panelized FPC substrates. The track width can be automatically adjusted to accommodate different product sizes, enhancing production flexibility. Leveraging the advantages of cabinet-type long-stroke dispensing platforms, the FS800S12 supports high-volume, high-accuracy adhesive application with seamless automation. It’s well-suited for smart manufacturing environments demanding stable, scalable dispensing performance.
Core Advantages
Main appliaction
Automotive lithium battery FPC-FFC
New energy vehicles
Energy storage battery
Technical parameters
| Model | FS800S12 |
| Structure | Floor-standing gull-wing door layout |
| Left and right XYZ glue execution unit + double track | |
| Number of axes | 6axis(2sets of XYZ axis) |
| Outer dimension(W×D×H) | 2100×1600×1600mm |
| Working range(W×D) | 1200×800mm |
| Track width adjustment method | Automatic width adjustment |
| Track width adjustment range | 150~400mm(Single track) |
| Z-axis load (kg) | 5 |
| Conveyor belt load (kg) | 5 |
| Conveyor track | Optional belt, chain, double speed chain(customized) |
| Operating system | Win10 64-bit system |
| Input voltage | 220V AC 50±Hz |
FAQ
Q1: What is the maximum dispensing area supported by the large-stroke cabinet-type machine?
The equipment FS800S12 supports up to 1250×800mm dispensing areas. If the customer has larger dispensing requirement, we also have other mahine types available.
Q2. Is the system compatible with dual-component adhesives such as thermal gel or potting materials?
Yes, the system can integrate dual-component valves for dispensing thermal interface materials, potting compounds, or sealants.
Q3. How does the equipment ensure precise dispensing over such a large area?
High-precision servo-driven gantry modules, closed-loop motion control, and optional vision alignment ensure consistent dispensing accuracy across the entire work area.
About Mingseal
Founded in 2008, Changzhou Mingseal Robot Technology Co., Ltd. is a technology-driven manufacturer of high-end equipment, specializing in connection, assembly, inspection systems, and key components for advanced semiconductor packaging and precision electronics. Our solutions are widely adopted by leading customers in sectors such as semiconductor packaging, consumer electronics, and automotive electronics. With a strong presence across Asia and the Americas, we deliver reliable support and innovation globally.
Partner with Mingseal to power the future of automatic manufacturing!
