Wear Resistant Eccentric Stator Eccentric Rotor Volumetrically Accurate For Valve

Wear-resistant Volumetrically accurate Eccentric Stator and Rotor for Eccentric Auger valve

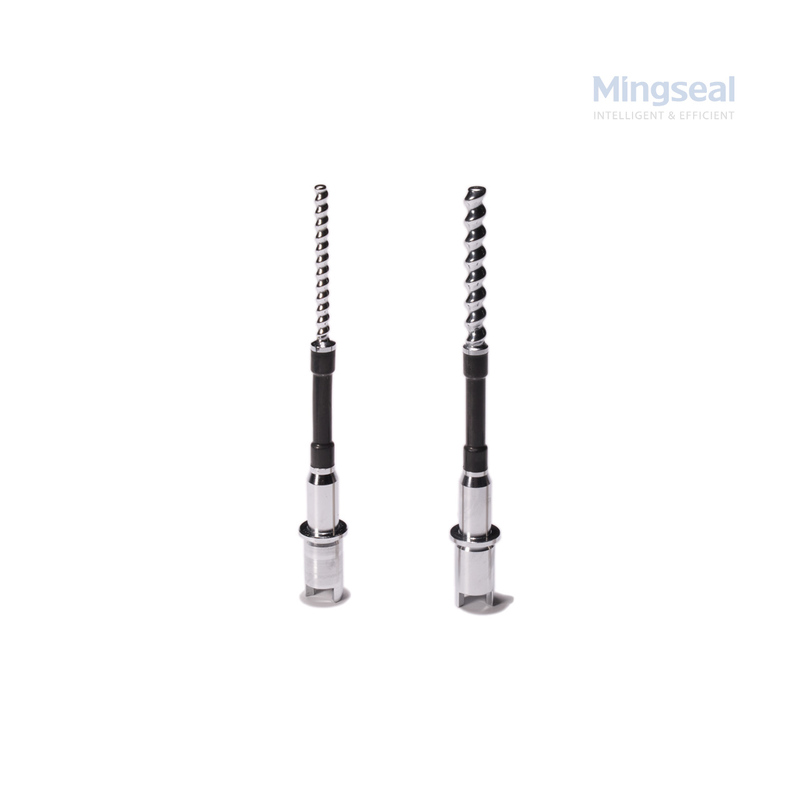

The eccentric stator and rotor set used in eccentric screw valves is the core component enabling accurate, pulse-free dispensing of high-viscosity fluids. This assembly consists of a helical metal rotor rotating inside an elastomeric stator with a double-helix inner cavity. The rotor’s eccentric motion creates continuously sealed cavities that move material smoothly and uniformly. This progressive cavity design minimizes pulsation, ensures volumetric accuracy, and delivers low-shear, stable flow—ideal for shear-sensitive adhesives, pastes, and filled materials. The eccentric rotor-stator mechanism also offers excellent wear resistance and supports reverse flow for precise anti-drip control. It is essential in applications requiring consistent and repeatable dispensing, such as automotive electronics, LED assembly, and power device potting.

Core Advantages

• Eccentric structure: The rotor and stator are not coaxial, thus forming a closed conveying chamber inside the stator to achieve push-type conveying;
• Sealed cavity transmission: With each rotation, the colloid is continuously pushed out with the same volume to ensure stable and pulsation-free glue output;
• Strong self-sealing ability: Suitable for medium and high viscosity glues, such as silicone, epoxy resin, PU glue, etc.;
• Low shear: Especially friendly to thixotropic and shear-sensitive glues;
• Suction back ability: The suction back structure can be configured to effectively prevent dripping;
• High quantitative accuracy: The dispensing volume can be accurately controlled by controlling the rotation speed and angle.
