| Brand Name: | Mingseal |
| Model Number: | KDC3004 |
| MOQ: | 1set |
| Price: | $750-$10000 / pcs |
| Delivery Time: | 5-60days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
Space-saving High Efficiency 4-Channel Dispensing Controller for VCM application

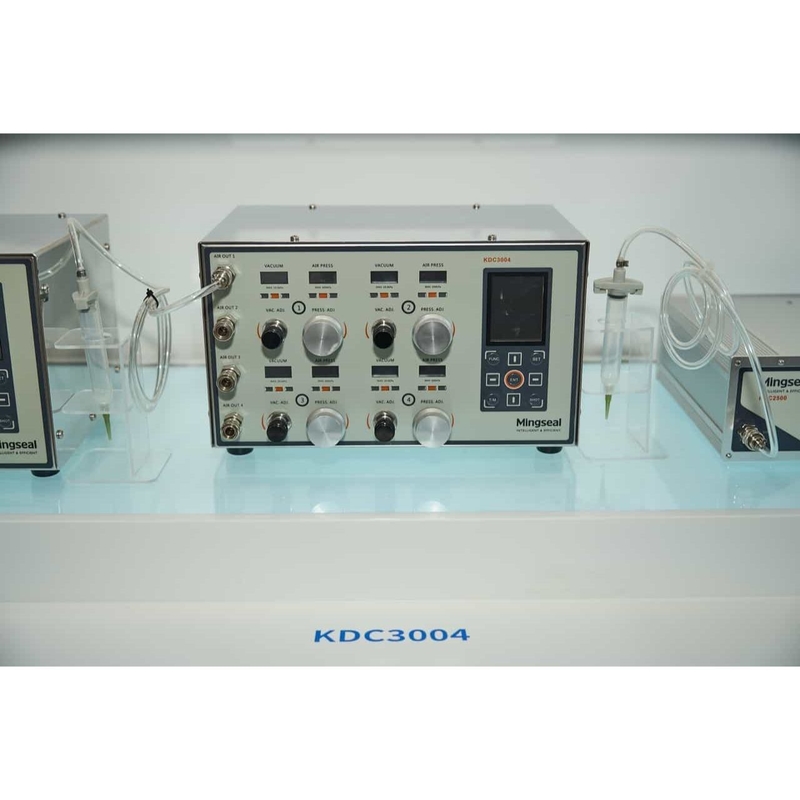

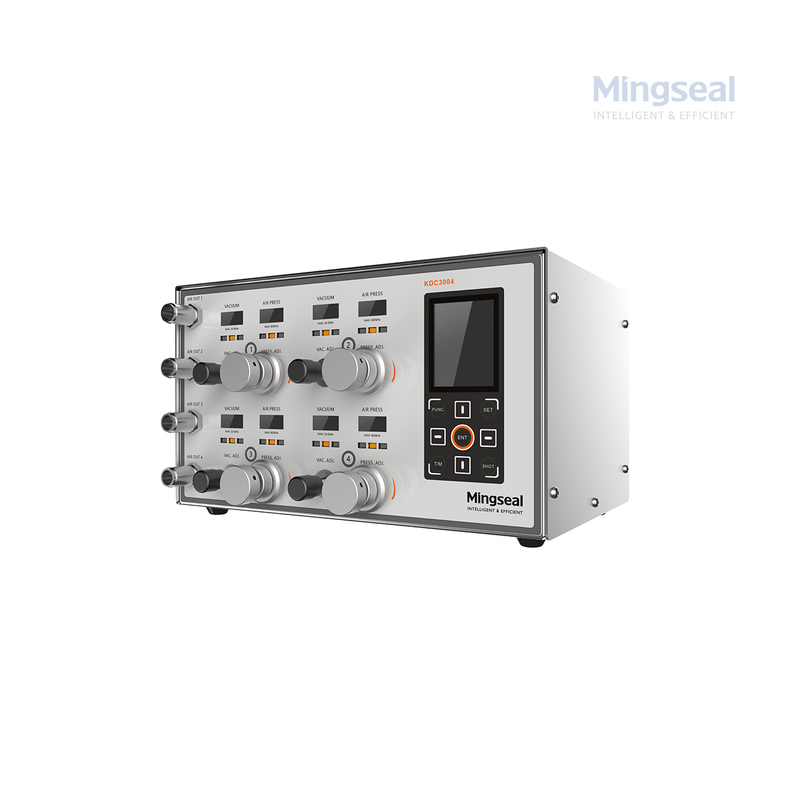

KDC3004 Automatic dispensing controller is a four-channel time pressure dispensing controller. It is designed for customers' application scenarios where multiple glue barrels are juxtaposed for collaborative dispensing. There is no need to stack multiple conventional single-channel dispensing controllers. The total space occupied by the four-channel dispensing controller is significantly reduced. It is connected to an air supply pipeline and power supply to facilitate quick pipe routing. At the same time, each channel retains completely independent parameter settings and glue dispensing and suction pressure adjustment function.
Core Advantages
1. With high consistency and high precision, the KDC3004 dispensing controller can handle the electronics, automotive industry or other demanding dispensing processes.
2. A variety of control methods can realize 4-channel dispensing control and simple control of single channel and channel combination.
3. Full digital settings and display make settings simpler and more accurate.
4. The anti-drip function can effectively prevent liquid dripping and ensure the consistency of glue volume or glue line.
5. Excellent compatibility, it can be easily used with other companies' equipment. It has simple input and output functions, and can be connected with other companies' equipment without adding any components.
Main appliaction
Application scenarios such as electronics and automotive industries where multiple glue cartridges are placed side by side for collaborative dispensing, and where certain space requirements are required.
Applicable fluids
Including oil, grease, silicone, solder paste, epoxy resin, UV glue, sealant, ink, sealant, etc., as well as fluids for dispensing assembly using syringes.
Technical parameters
Dispensing air pressure output | 0.05~0.6MPa |
Suction pressure output | -20~0kPa |
Disensing mode | STEADY(Linkage)/TIME(Timing) |
Dispensing time set | 10ms~99.99 s |
Main function | Air pressure and parameters of four channels are adjusted independently Real-time display of dispensing air pressure Real-time display of suction air pressure Color LCD display + membrane switch interaction |
Input signal | Dispensing trigger input (one controls four, four channels synchronized) Four independent dispensing trigger inputs |
Output signal | No/low air pressure alarm during dispensing operation |
Working air pressure input | Higher than dispensing air pressure output 100kPa or more |
Working power input | AC220V/50Hz,50W |
Size(W*H*D) | 335mm*200mm*280mm |
Weight | 5Kg |
Working noise | Lower than 90dB |
FAQ
Q1: Can each channel be controlled independently?
A1: Yes. Each of the four channels can be configured independently for dispensing time, pressure, and trigger signal. This allows for flexible operation in multi-zone or multi-valve applications.
Q2: Does it support synchronous and asynchronous dispensing?
A2: Yes. You can configure all channels to dispense simultaneously or set different timings for each, depending on your process needs.
Q3: What are the advantages of using a 4-channel controller instead of multiple single-channel units?
A3: A 4-channel controller reduces equipment footprint, simplifies wiring, lowers total cost, and enables centralized control for better synchronization and easier maintenance.
