| Brand Name: | Mingseal |
| Model Number: | KPS6000-U |
| MOQ: | 1set |
| Price: | $4500-$10000 / pcs |
| Delivery Time: | 7-60days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

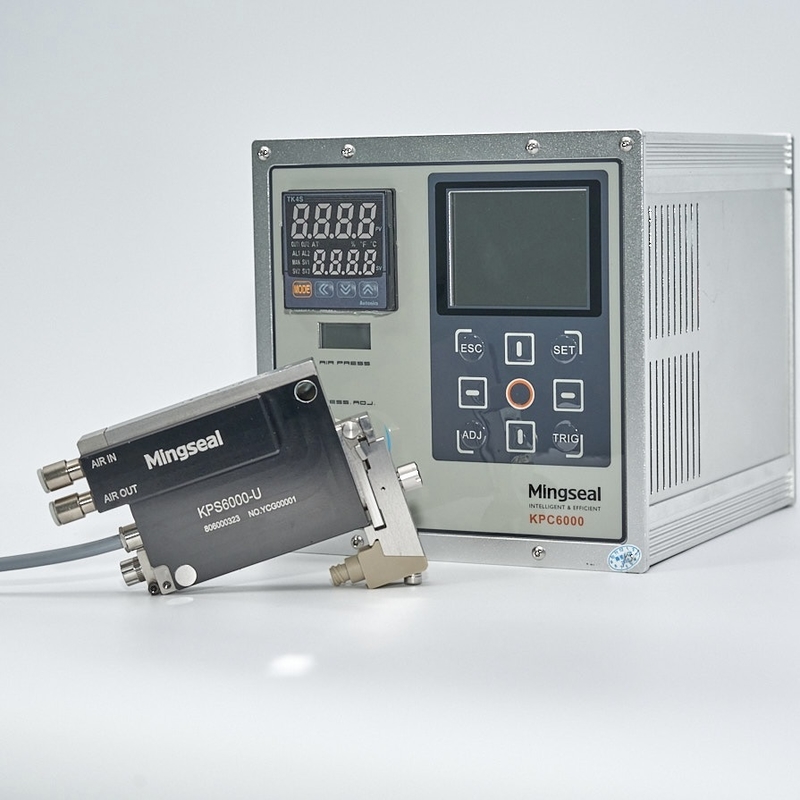

High jetting force Dual dispensing Piezo Jetting valve for precision electronics application
Dual-piezo jet valves are highly effective for dispensing hot melt adhesives(HMA) in advanced manufacturing applications. With two piezoelectric actuators working in tandem, they deliver greater jetting force and faster response time, enabling precise, consistent dispensing of medium to high-viscosity hot melt materials. This makes them ideal for non-contact micro-dispensing in mobile phone mid-frames, mini tablet enclosures, and smart device assembly. The enhanced power of dual-piezo technology allows accurate dot and line dispensing at high speed, even under challenging temperature and viscosity conditions. Their modular, heat-stable design ensures long-term reliability and minimal maintenance, supporting automated, high-throughput production lines.
Core Advantages
Main appliaction
Hot melt adhesive dispensing for smartphone middle frame: bonding and sealing between middle frame and back cover, battery cover, and display
Structural adhesive dispensing for Mini Pad/tablet middle frame: the junction between middle frame and screen assembly or internal frame
Technical parameters
| Model | KPS6000-U |
| Input air pressure | 0.1-8bar |
| Viscosity | 1-500000mPas |
| Minimum glue spraying amount | 0.5nl |
| Maximum jetting frequency | 1200Hz |
| Size(W*D*H) | 123*121*28.7mm(including heating module) |
| Weight | 602g(with flow channel) |
| Working temperature | 10-50℃ |
| Main function | Nozzle calibration-free and top calibration functions Quick release of the striker and flow channel components Valve body temperature detection and alarm Controller high temperature monitoring |
FAQ
Q1: Can the valve integrate with automated production lines and vision systems?
Absolutely. The valve supports high-speed signal response and can be seamlessly integrated with vision-guided dispensing platforms, robotic arms, and high-speed SMT lines, enabling precise, repeatable, and fully automated operation.
Q2: How does the valve ensure consistent dispensing quality for high-mix production?
A2: Its dual-actuation design minimizes performance variation due to adhesive viscosity changes or ambient temperature fluctuations, maintaining stable jetting quality across different product types and production conditions.
About Mingseal
Founded in 2008, Changzhou Mingseal Robot Technology Co., Ltd. is a technology-driven manufacturer of high-end equipment, specializing in connection, assembly, inspection systems, and key components for advanced semiconductor packaging and precision electronics. Our solutions are widely adopted by leading customers in sectors such as semiconductor packaging, consumer electronics, and automotive electronics. With a strong presence across Asia and the Americas, we deliver reliable support and innovation globally.
Partner with Mingseal to power the future of automatic manufacturing!
Video
