1μm Grating Resolution Automatic Mounting Machine with Class 10 Cleanliness Level and 1410*1450*2200mm Footprint

Brand Name: Mingseal
Model Number: AC100
MOQ: 1
Price: $28000-$150000 / pcs
Delivery Time: 5-60 Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO
Document:
AC100 Fully Automatic Mount...al.pdf
Cleanliness Level:
Class 10
Grating Resolution:
1μm
Footprint:
1410*1450*2200mm
Weight:
1600KG
Packaging Details:
Wooden Case
Highlight:

1um auto glue dispenser

,

auto glue dispenser 2200mm

,

Electronics Assembly automatic mounting press machine

Product Description
1μm Auto Glue Dispenser Advanced Electronics Assembly Automatic Mounting Press Machine
Advanced Electronics Assembly Fully-Automatic Mounting Machine

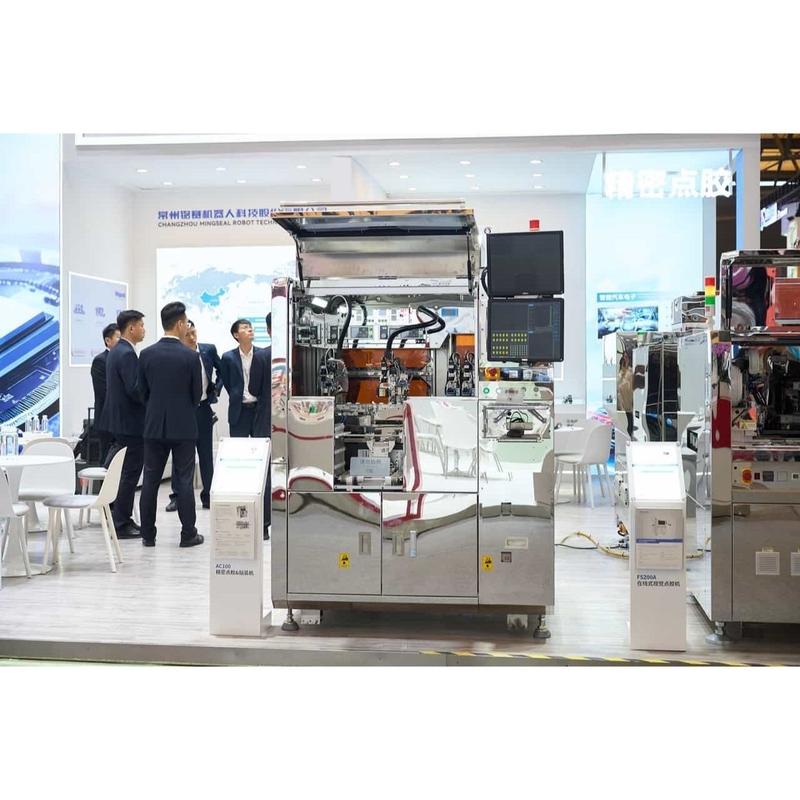

The AC100 Fully-Automatic Mounting & Precision Dispensing Machine is a next-generation inline solution designed for high-precision component mounting and dispensing tasks across module and shell assembly in the advanced electronics industry. With a focus on MEMS, optical devices, holders, reinforcement plates, and prism mounting, the AC100 combines high repeatability with flexibility and full process traceability.
This modular system is engineered for precision and stability. It integrates automatic substrate loading/unloading, precision adhesive dispensing, in-line glue shape inspection, component pick & place, placement quality detection, and optional pre-curing. By supporting international semiconductor communication protocols and smart factory MES systems, the AC100 aligns with the latest trends in digitalized and unmanned manufacturing.
Key Advantages
  • Versatile Dispensing Capabilities
    Compatible with piezoelectric, screw, extrusion, or pneumatic valves, the AC100 easily adapts to diverse adhesive and coating applications.
  • Flexible Mounting Head with Precision Control
    Features placement head with adjustable pressure calibration and leveling, ensuring consistent mounting force (100-2000g) and high alignment accuracy.
  • Dual Direction Workflow
    Supports flexible process flow -- dispensing before or after mounting -- and allows left-to-right or right-to-left production, maximizing floor layout efficiency.
  • Advanced Visual Inspection & Position Correction
    High-resolution vision modules enable accurate position matching and inspection, maintaining placement precision up to ±3μm repeatability for the mounting head and ±10μm for dispensing.
Main Applications
Holder Mounting
Reinforcement Plate Mounting
Sensor Housing Mounting
VCM Mounting
Main Camera and Auxiliary Camera Mounting
Prism Mounting
Core Modules
1μm Grating Resolution Automatic Mounting Machine with Class 10 Cleanliness Level and 1410*1450*2200mm Footprint 0
Dispensing Module
The linear motor is adopted to achieve high-speed and high-precision dispensing
1μm Grating Resolution Automatic Mounting Machine with Class 10 Cleanliness Level and 1410*1450*2200mm Footprint 1
Dispensing Conveyor Module
Track lifting & conveying is adopted to improve the stability of conveying
1μm Grating Resolution Automatic Mounting Machine with Class 10 Cleanliness Level and 1410*1450*2200mm Footprint 2
Mounting Head
The linear motor + DD motor are adopted to achieve high-precision position compensation and mounting
Tilting Module enabling ±30° dispensing angles
Tilting Module
Dispensing with ±30° tilting can be achieved
1μm Grating Resolution Automatic Mounting Machine with Class 10 Cleanliness Level and 1410*1450*2200mm Footprint 4
Mounting Module
The linear motor is adopted to achieve high-speed and high-precision mounting
1μm Grating Resolution Automatic Mounting Machine with Class 10 Cleanliness Level and 1410*1450*2200mm Footprint 5
Vision Module
Products within different height ranges can be recognized through automatic focusing
Frequently Asked Questions
Q1: What industries benefit most from the AC100?
A: The AC100 is ideal for high-precision shell, holder, prism, and module assembly in optical, MEMS, semiconductor, and advanced electronics production.
Q2: Can it adapt to different adhesive processes?
A: Yes -- the system supports multiple valve types (piezoelectric, screw, pneumatic) and optional tilt rotation to handle side dispensing and complex angles.
Q3: How does the AC100 improve process reliability?
A: It integrates inline inspection, precision visual alignment, real-time glue path detection, and optional pre-curing, ensuring every placement and dispense is accurate.
Q4: What are the layout options?
A: It supports flexible left-to-right or right-to-left flow and can be configured with automatic tray and substrate handling for full automation.
About Mingseal
Mingseal is a leading technology-driven manufacturer specializing in precision dispensing, mounting, and automation solutions for high-end electronics, optics, and semiconductor applications. Since its founding, Mingseal has earned global trust for delivering cutting-edge equipment that empowers clean, efficient, and intelligent production lines for industry leaders worldwide.
