| Brand Name: | Mingseal |
| Model Number: | KPS3000-Y |
| MOQ: | 1 |
| Price: | $4500-$10000 / pcs |
| Delivery Time: | 7-60days |
| Payment Terms: | L/C,D/P,T/T,Western Union,D/A |

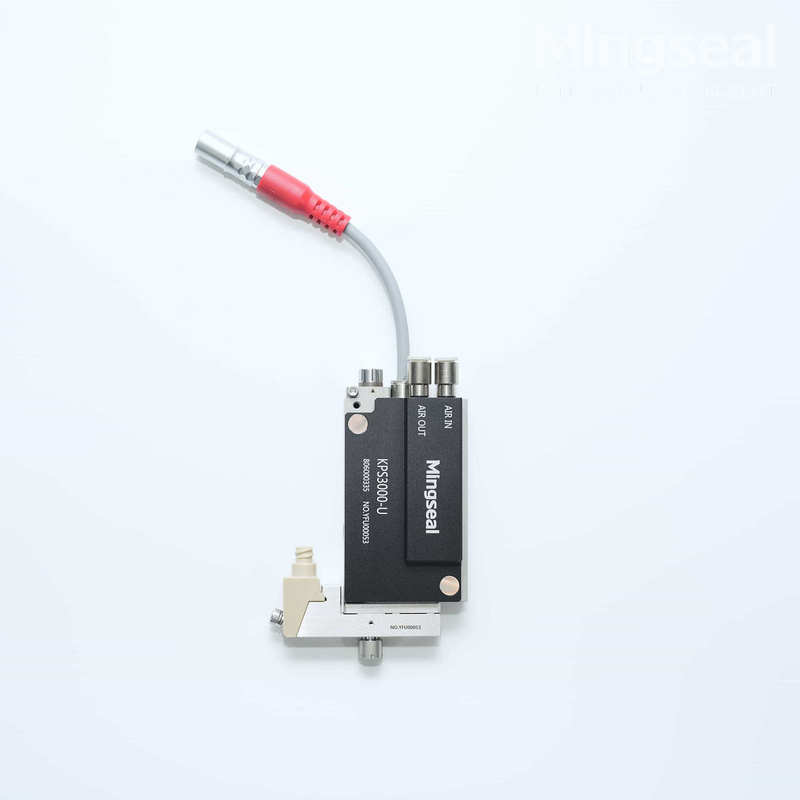

This narrow-body piezoelectric jet valve is built for precise dispensing of anaerobic adhesives and other fluids in tight spaces. It offers consistent dot and line placement while fitting into compact assembly tools. Use this valve when you need accurate dosing in narrow gaps, small housings, or close-packed components.
Many production stations that work with anaerobic adhesives cannot apply small, repeatable doses in confined spaces without touching nearby parts or leaving excess material.
Standard valves are often too large for narrow fixtures or they create droplets that are too large for fine features. Combined with limited nozzle access, this leads to smeared adhesive, trapped air, or uneven cure and rework.
This narrow design piezo valve provides a small footprint and controlled micro-droplet formation to place adhesive exactly where needed. It minimizes overspray and keeps surrounding areas clean, reducing rework and improving first-pass yield.
| KPS3000-Y dispensing valve | |
| Minimum glue spraying amount | 0.5nl (depends on glue) |
| Glue viscosity | 1-300,000mPas |
| Jetting frequency | 500 Hz (Max. 1200Hz) |
| Valve size |
115×79×21mm(Includes runner assembly) |
| Valve weight | 400g (with fluid box, no cables) |
| KPC3000 controller | |
| AC power input | AC 220V±20% |
| Jet frequency | 1~1200 Hz |
| Settings display | TFT color screen, 10sets of data |
| Controller weight | 3.55kg |
| Controller size | 232×170×165mm |
| Power | 275W |
Q1: Can piezoelectric valves effectively prevent anaerobic adhesives from curing in valves? How to solve it?
A1: Curing risk: Anaerobic adhesives contact metal (such as valve cores) and may cure slowly in an oxygen-deficient environment.
Material selection: Valve body/valve core/accessories use anaerobic adhesive inert materials (such as ceramic or special coated stainless steel).
Structural design: Select a flow channel without dead ends.
Shutdown maintenance: Immediately flush with a cleaning agent when shutting down
Q2: How do piezoelectric valves deal with the low viscosity (easy to sag) characteristics of anaerobic adhesives?
A2: High-frequency switching (microsecond response): Quickly cut off the glue line to avoid tailing.
Precision air pressure control: Stable glue supply.
Dispensing parameter optimization: Control the single dispensing amount by adjusting the pulse width.
Founded in 2008, Changzhou Mingseal Robot Technology Co., Ltd. is a technology-driven manufacturer of high-end equipment, specializing in connection, assembly, inspection systems, and key components for advanced semiconductor packaging and precision electronics. Our solutions are widely adopted by leading customers in sectors such as semiconductor packaging, consumer electronics, and automotive electronics. With a strong presence across Asia and the Americas, we deliver reliable support and innovation globally.
Partner with Mingseal to power the future of automatic manufacturing!
