| Brand Name: | Mingseal |
| Model Number: | KPS2000-U |
| MOQ: | 1 |
| Price: | $4500-$10000 / pcs |
| Delivery Time: | 7-60days |
| Payment Terms: | L/C,D/P,T/T,Western Union,D/A |

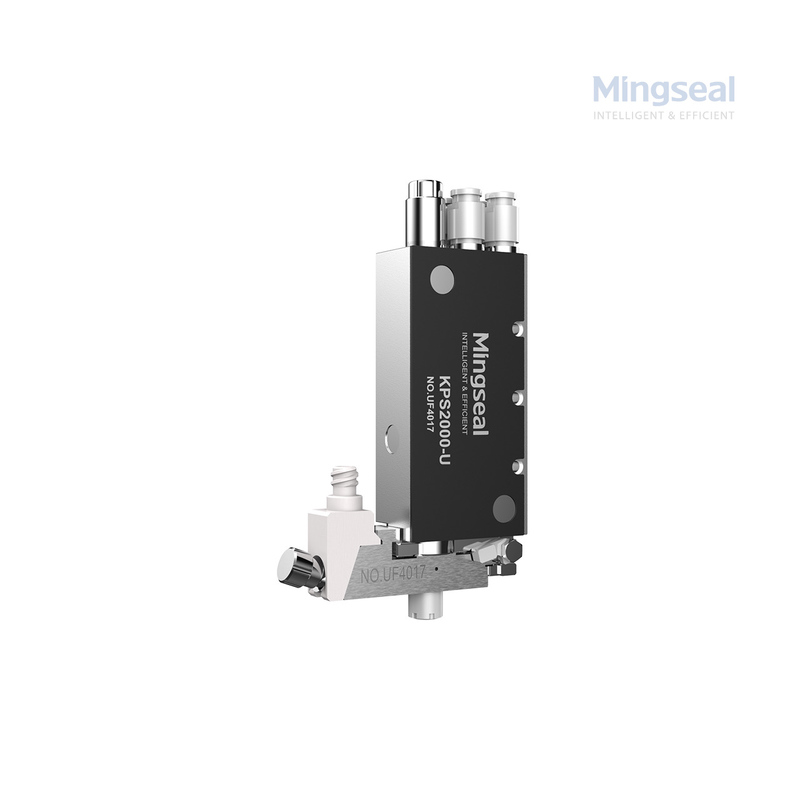

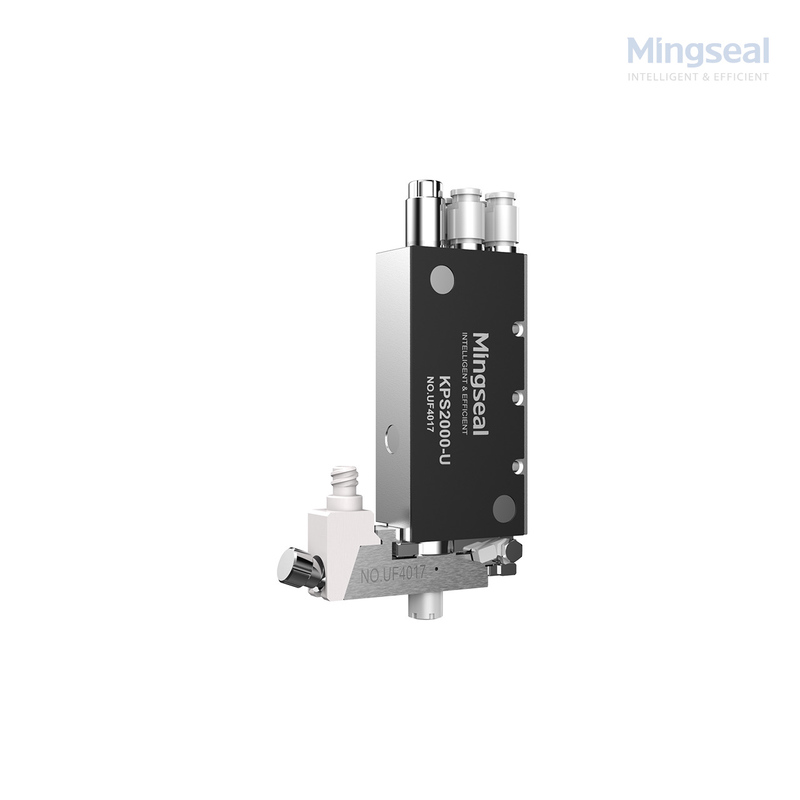

Easy maintenance Piezo Jet valve in FATP / Final Assembly, Test and Pack
Piezo jet valves play a crucial role in modern smartphone and PCB assembly, especially during the FATP (Final Assembly, Test and Pack) stage. Their non-contact, high-speed, and ultra-precise dispensing capabilities make them ideal for bonding and sealing delicate components such as camera modules, fingerprint sensors, flexible PCBs, and EMI shields. They are also widely used in applying underfill, thermal interface materials, UV adhesives, and conformal coatings on densely populated mainboards.
These valves excel in dispensing micro-dots of high-viscosity fluids (up to tens of thousands of mPa·s), supporting fast cycle times with jetting frequencies over 300Hz. Their contactless operation avoids damage to sensitive components, and their ability to maintain consistent dot size improves product quality and reduces rework.
With rising demand for miniaturization, automation, and production consistency, piezo jet valves are becoming essential in next-generation electronics manufacturing lines.
Core Advantages
Main appliaction
Technical parameters
| KPS2000 jetting valves | |
| pressure supply range | 0.1～8 Bar |
| Viscosity range | Medium or high viscosity up to 500000mpas |
| Max jetting frequency | 1200Hz |
| Work temperature range | 10～50°C |
| Corrosion resistance | All aqueous media, organic solvents, weak acids and weak bases |
| Size of valve body | 125.5×40×20mm(No runner assembly included) |
| Weight of valve with flow channel | 430g |
| KPC2000 controller | |
| AC power input | AC 220V±20% |
| Frequency of jetting valve | 1~1200HZ |
| Settings display | TFT color screen, 10sets of dispensing parameters can be set |
| Reserved interface | Supports RS232/RS485 |
| Weight of valve controller | 3.55KG |
| Size | 232×170×165 mm |
| Power | 275W |
FAQ
Q1. What factors should I consider when selecting a piezo jet valve for my application?
A1: Key factors include the viscosity of your adhesive, required dispensing volume, dot size tolerance, jetting speed, compatibility with your automation system, and maintenance requirements.
Q2. Can the piezo jet valve handle high-viscosity materials like thermal paste or epoxy?
A2: Yes. Piezo jet valves are designed to handle a wide range of viscosities, including high-viscosity materials such as thermal interface compounds, UV adhesives, and epoxies, while maintaining consistent dispensing performance.
Q3. What maintenance is required for long-term valve performance?
A3: Routine cleaning of the nozzle, proper adhesive filtration, and regular system calibration are essential. Some models offer self-cleaning features or clog detection to reduce downtime.
About Mingseal
Founded in 2008, Changzhou Mingseal Robot Technology Co., Ltd. is a technology-driven manufacturer of high-end equipment, specializing in connection, assembly, inspection systems, and key components for advanced semiconductor packaging and precision electronics. Our solutions are widely adopted by leading customers in sectors such as semiconductor packaging, consumer electronics, and automotive electronics. With a strong presence across Asia and the Americas, we deliver reliable support and innovation globally.
Partner with Mingseal to power the future of automatic manufacturing!
