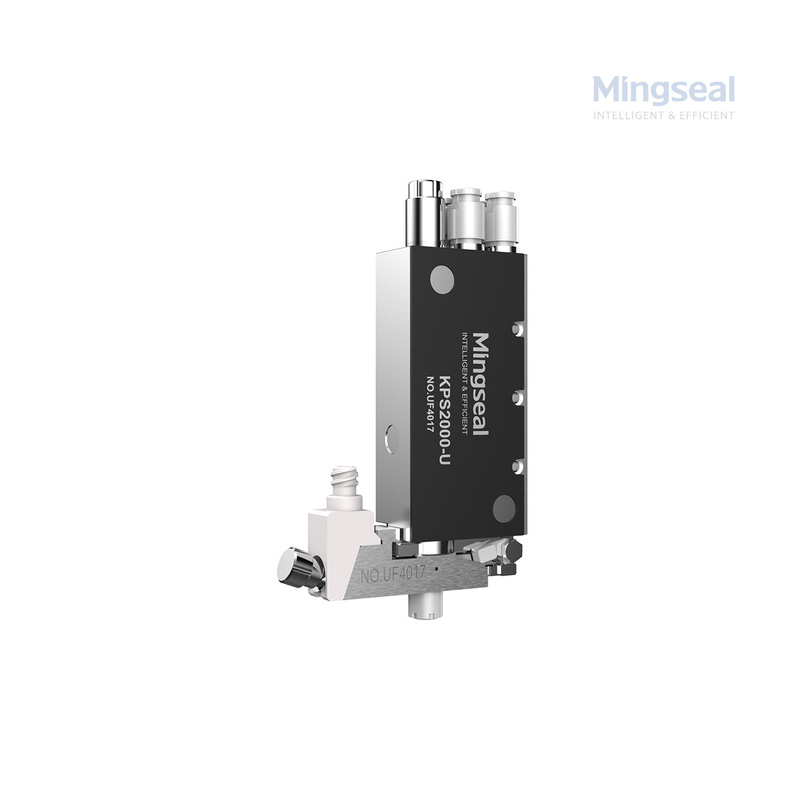

High Consistency Dispense Valve for Continuous Monitoring Modules Piezoelectric Jet Valve

Product Overview

This high consistency piezoelectric dispense valve delivers stable micro-drops and continuous bead control for small module assembly such as sensor modules and compact electronics. Designed for reliable repeatable dosing, the valve supports low to high viscosity fluids and is available in material options for UV, corrosion-resistant, and PUR applications. Use this valve when you need dependable placement, low variation, and simple tuning before full line rollout.

Problem

Small module production often fails because dispensers do not keep shot size or bead shape steady across a shift. Variability causes assembly rejects, extra cleaning, and longer setup time when moving from trial to production.

Cause

Inconsistent output usually comes from mismatched nozzle size, unstable inlet pressure, or driver timing that is not optimized for the fluid. Materials that change viscosity with temperature or that contain fillers increase the chance of stringing and clogging if the valve and settings are not matched.

Solution

This dispense valve combines a stable fluid path, matched piezo actuation and simple nozzle options so you can produce consistent drops and continuous beads with minimal tuning. The valve is available in wetted material choices to handle UV adhesives, mildly corrosive fluids, or PUR-type materials. Short bench tuning with the included settings window identifies the correct pulse and pressure range for steady results, reducing line surprises.

Technical parameters

Application

• Small sensor modules: precise adhesive dots and short beads for component hold.
• Compact electronics: targeted sealing and bonding without touching nearby parts.
• Optical sub-assemblies: repeatable small-volume placement for adhesives and gels.
• Pilot and R&D lines: quick tuning and trial runs before committing to production valves.

How It Works

Conclusion: consistent output is achieved by matching pulse energy, nozzle flow and steady pressure. A short piezo pulse produces a pressure wave in the valve chamber that ejects a micro-drop through the nozzle. Adjusting pulse width and amplitude changes volume while steady inlet pressure maintains the meniscus for repeatable shots. For continuous beads, controlled pulse patterns create overlapping drops to form smooth lines.

How To Choose

Conclusion: choose the valve configuration based on your fluid type, desired drop size, and mounting limits.

Steps:

1. Provide fluid viscosity at working temperature and any filler content for initial advice.
2. Start tests with the medium nozzle to find a stable pulse and pressure window.
3. If using UV or corrosive fluids, select the matching wetted material option.
4. Confirm required cycle rate and ensure the valve’s pulse rate matches throughput needs.
5. Plan a short bench trial to set pulse width, amplitude and pressure before full installation.
6. Keep spare nozzles and a simple cleaning plan to reduce downtime.

Company Support and Trust

Mingseal Technology supplies dispensing valves, test packs and application support. We offer bench testing, process tuning, dimension drawings and material certificates on request. Our team can run trials with customer fluids and return a report with recommended settings for production use.

FAQ

Q1: Is this valve suitable for UV adhesives?
A1: Yes. Select the UV-compatible wetted material option and run a bench test to confirm settings.

Q2: What is the smallest reliable drop I can expect?
A2: Typical minimum drops are around 1 nL under tuned conditions; production stability depends on nozzle choice and pressure control.

Q3: Can this valve produce continuous beads as well as drops?
A3: Yes. Controlled pulse patterns form overlapping drops to create smooth short beads when tuned correctly.

Q4: How often should nozzles be cleaned or replaced?
A4: Frequency depends on fluid solids and runtime. Routine inspection and spare nozzles are recommended; filled fluids require more frequent attention.

Q5: Do you provide sample testing?
A5: Yes. Send your fluid spec and process temperature; we can run a bench trial and return test logs and settings.

About Mingseal

Founded in 2008, Changzhou Mingseal Robot Technology Co., Ltd. is a technology-driven manufacturer of high-end equipment, specializing in connection, assembly, inspection systems, and key components for advanced semiconductor packaging and precision electronics. Our solutions are widely adopted by leading customers in sectors such as semiconductor packaging, consumer electronics, and automotive electronics. With a strong presence across Asia and the Americas, we deliver reliable support and innovation globally.

Partner with Mingseal to power the future of automatic manufacturing!
