Created with Pixso. High-precision 0.15mm Dot Size Jetting Valve with 500,000cps Viscosity and 3.55 KG Controller for Miniature Speaker Assembly
High-precision 0.15mm Dot Size Jetting Valve with 500,000cps Viscosity and 3.55 KG Controller for Miniature Speaker Assembly
  • name
  • name
  • name

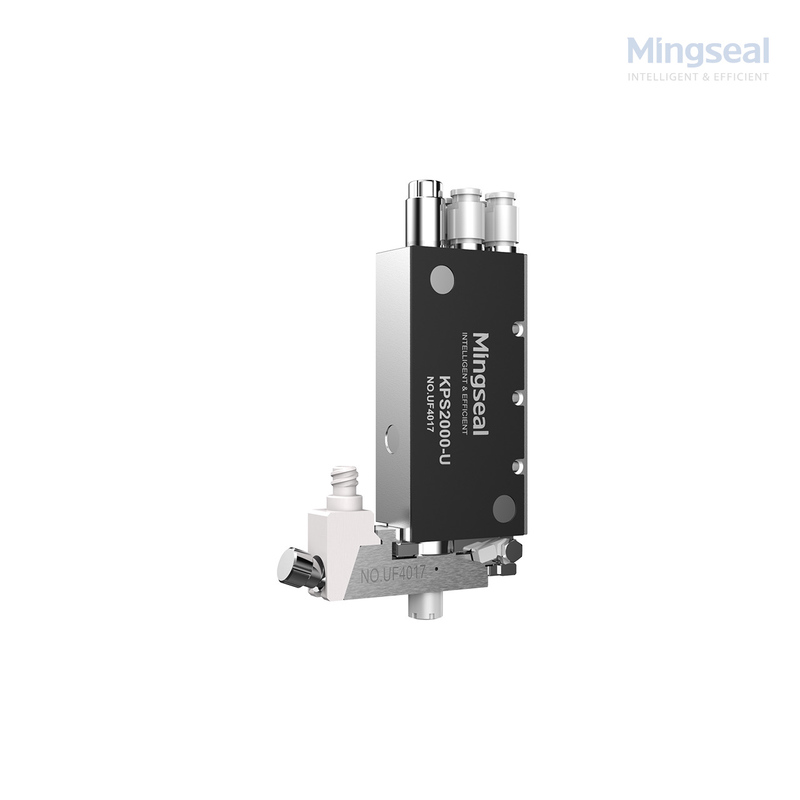

High-precision 0.15mm Dot Size Jetting Valve with 500,000cps Viscosity and 3.55 KG Controller for Miniature Speaker Assembly

Brand Name: Mingseal
Model Number: KPS2000-U
MOQ: 1
Price: $4500-$10000 / pcs
Delivery Time: 7-60days
Payment Terms: L/C,D/P,T/T,Western Union,D/A
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO, ROHS
Document:
PJS100A PJS100H KPS2000 Pie...n .pdf
Product:
KPS2000-U Dispensing Jetting Valve​
Minium Dot Size:
0.15mm(Depending On Glue)
Applicable Viscosity:
1~500,000cps
Jet Frequency:
1~1200HZ
Valve Body Size:
125.5*75*20mm(with Flow Channel)
Valve Body Weight:
440g (flow Channel Included In)
Controller Size:
232×170×165 Mm
Weight Of Controller:
3.55 KG
AC Power Input:
AC 220V±20%
Packaging Details:
Carton/Wooden box
Supply Ability:
200sets per month
Highlight:

Phones Assembly Jetting Valve​

,

Speaker Assembly etting Valve​

,

piezoelectric valve 1.2KHz

Product Description
TWS Phones Speaker Assembly Jetting Valve Piezoelectric Valve 1.2KHz
Low maintenance cost Jetting valves in Miniature Speaker Assembly of TWS/Phones
The KPS2000 piezo jet valve delivers high-precision, non-contact adhesive dispensing for micro speaker assembly in smartphones, TWS earbuds, and wearables. It ensures excellent dot consistency with no satellite droplets, supporting clean and accurate bonding of membranes, coils, and housings. Widely used in China, Korea, and Vietnam, it's ideal for high-speed automated lines.
Core Advantages
  • Non-contact high-frequency dispensing: Suitable for small structural components, avoiding contact that may cause deviation or damage to the membrane and coil
  • Precise control of micro-glue volume: Nanoliter dispensing capability to ensure dispensing consistency and batch yield
  • Quick response, precise positioning
  • Quick-detachable flow channel + ADJ top calibration function: Simplify disassembly and cleaning steps
Main Application
  • TWS earphone speaker module bonding (housing + FPC + membrane)
  • Smart watch sound cavity dispensing packaging
  • Mobile phone earpiece speaker module voice coil support bonding
Technical Parameters
KPS2000 piezoelectric valve
Pressure supply range 0.1～8 Bar
Viscosity range Medium or high viscosity up to 500000mpas
Max jetting frequency 1200Hz
Work temperature range 10～50°C
Corrosion resistance All aqueous media, organic solvents, weak acids and weak bases
Size 125.5×40×20mm (No runner assembly included)
125.5×75×20mm (Includes runner assembly)
Weight 430g (With fluid box, no cables)
KPC2000 controller
AC power input AC 220V±20%
Jetting frequency 1~1200HZ
Settings display TFT color screen
Reserved interface Supports RS232/RS485
Weight 3.55KG
Size 232×170×165 mm
Power 275W
FAQ
Q1: How does the KPS2000 piezo jet valve ensure high dispensing consistency in micro speaker applications?
A1: The KPS2000 features a coaxial needle guidance structure and micron-level adjustment mechanism, ensuring stable, repeatable adhesive dots with no satellite droplets. This is especially important for diaphragm and voice coil bonding, where precision directly affects acoustic performance.
Q2: Can the KPS2000 adapt to different adhesive types used in speaker production?
A2: Yes, the KPS2000 supports a wide range of adhesives including epoxy, UV-curable, silicone, and thermal cure adhesives. Its adjustable jetting parameters allow quick adaptation to different viscosities and curing requirements commonly used in speaker assembly.
Q3: What is the typical maintenance or cleaning process for the KPS2000 in mass production?
A3: Thanks to its quick-release flow path module, the KPS2000 can be disassembled, cleaned, and reassembled in under 2 minutes, without the need for recalibration. This minimizes downtime and keeps production efficiency high.
Q4: How does the supplier support process validation and integration for new speaker projects?
A4: We provide full application support, including sample testing, parameter optimization, and onsite/remote commissioning. Our engineers work closely with customers to ensure smooth line integration and stable dispensing results from NPI to mass production.
Q5: What markets are currently using the KPS2000 for micro speaker production?
A5: The KPS2000 is widely adopted by top speaker module manufacturers in China, Vietnam, and Korea, especially for TWS earbuds, smartphones, and wearables, where precision, repeatability, and production speed are critical.
About Mingseal
Founded in 2008, Changzhou Mingseal Robot Technology Co., Ltd. is a technology-driven manufacturer of high-end equipment, specializing in connection, assembly, inspection systems, and key components for advanced semiconductor packaging and precision electronics. Our solutions are widely adopted by leading customers in sectors such as semiconductor packaging, consumer electronics, and automotive electronics. With a strong presence across Asia and the Americas, we deliver reliable support and innovation globally.
Partner with Mingseal to power the future of automatic manufacturing!
