| Brand Name: | Mingseal |
| Model Number: | KPS2000-U |
| MOQ: | 1 |
| Price: | $4500-$10000 / pcs |
| Delivery Time: | 7-60days |
| Payment Terms: | L/C,D/P,T/T,Western Union,D/A |

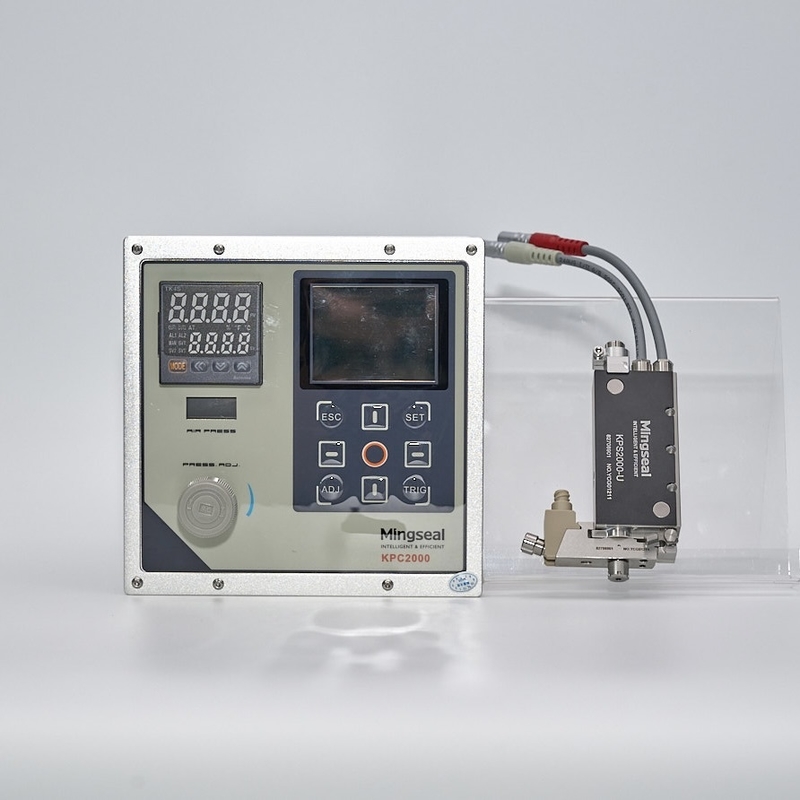

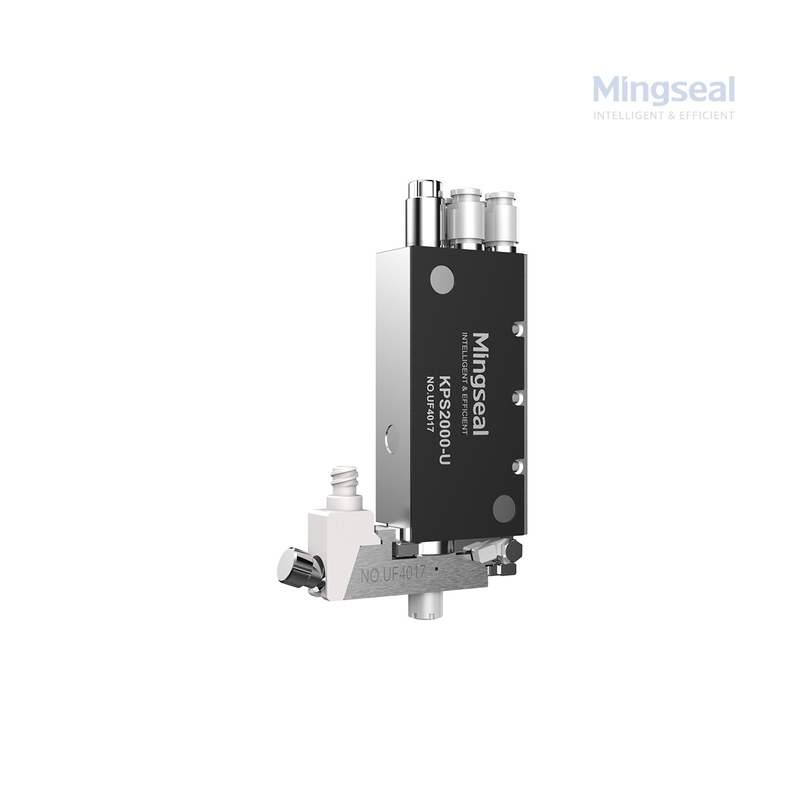

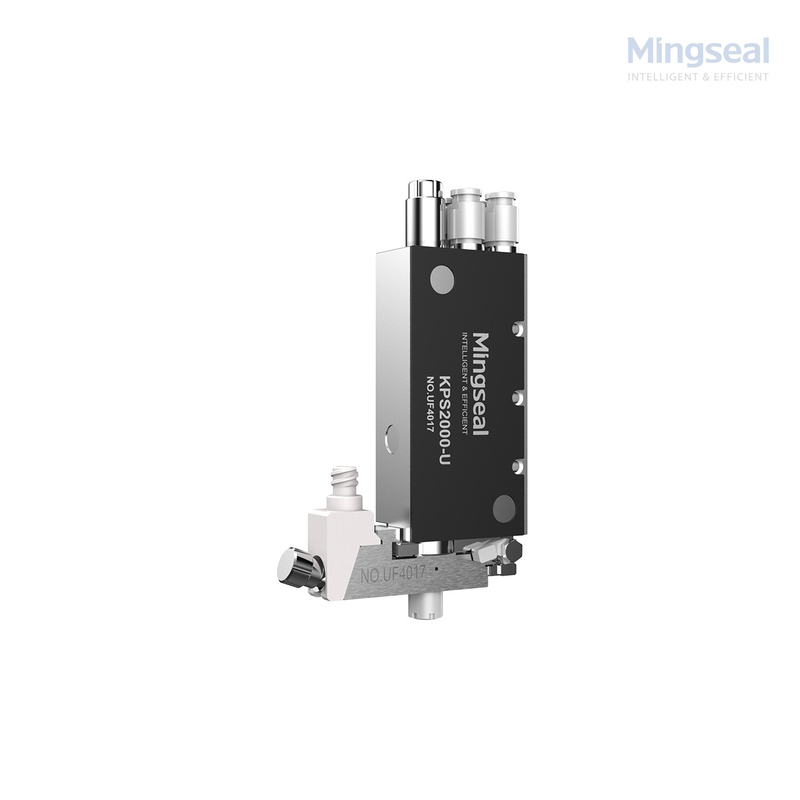

Easy Operation Adhesive Dispensing Valves for VCM/Voice Coil Motor Application
Piezo jet valves are high-precision adhesive dispensing valves widely used in the CCM industry for VCM component assembly. Utilizing a piezo actuator, these jetting valves enable non-contact, high speed micro-dispensing of UV, epoxy, or silicone adhesives with exceptional accuracy and repeatability. Popular in key markets like China, Korea, Vietnam and India, piezo jet valves ensure consistent jetting performance for compact camera module manufacturing.
Core Advantages
Main appliaction
Technical parameters
| Product model no. | KPS2000-U |
| Input air pressure | 0.1-8Bar |
| Material viscosity | Suitable for middle and high viscosity. Max.500000mPas |
| Min.glue dot diameter | 0.15mm(Depending on glue) |
| Min.glue width | 0.17mm(Depending on glue) |
| Min.dispensing amount | 0.5nl(CPK>1.33) |
| Continuous jetting frequency | 1200HZ |
| Dimensions(W*D*H) | 125.5*40*20mm(without fluid-box) |
| 125.5*75*20mm(with fluid-box) | |
| Weight | 440g(with fluid-box) |
FAQ
Q1: Why are piezo jet valves preferred for dispensing in VCM assembly?
A1: Piezo jet valves offer high-speed, non-contact micro-dispensing with excellent repeatability. This is ideal for VCM components, which are small, fragile, and require precise adhesive placement without damaging sensitive parts like coils or magnets.
Q2: What types of adhesives are typically used for VCM applications?
A2: Common adhesives include UV-curable adhesives for fast processing, epoxy for strong bonding, and silicone for vibration damping. The piezo jet valve is compatible with all of these due to its precise and consistent jetting capabilities.
Q3: How does the piezo jet valve improve VCM production efficiency?
A3: With jetting frequencies up to hundreds of Hz, piezo valves significantly increase throughput. They allow for automated, high-speed, repeatable dispensing without contact, reducing cycle time and minimizing rework rates.
Q4: Can piezo jet valves handle different VCM adhesive viscosities?
A4: Yes, piezo jet valves can handle a wide range of viscosities (typically 0–500000 cps) by adjusting valve parameters like jetting frequency, stroke, and nozzle diameter.
Q5: Do you have any MOQ for Piezo electric jetting valve?
A5: Low MOQ, 1PC for sample checking is available
About Mingseal
Founded in 2008, Changzhou Mingseal Robot Technology Co., Ltd. is a technology-driven manufacturer of high-end equipment, specializing in connection, assembly, inspection systems, and key components for advanced semiconductor packaging and precision electronics. Our solutions are widely adopted by leading customers in sectors such as semiconductor packaging, consumer electronics, and automotive electronics. With a strong presence across Asia and the Americas, we deliver reliable support and innovation globally.
Partner with Mingseal to power the future of automatic manufacturing!
