Optical Modules Electronic Dispensing Machine Flexible Circuits Adhesive Dispenser System

Optical Modules & Flexible Circuits Inline Precision Dispensing Machine

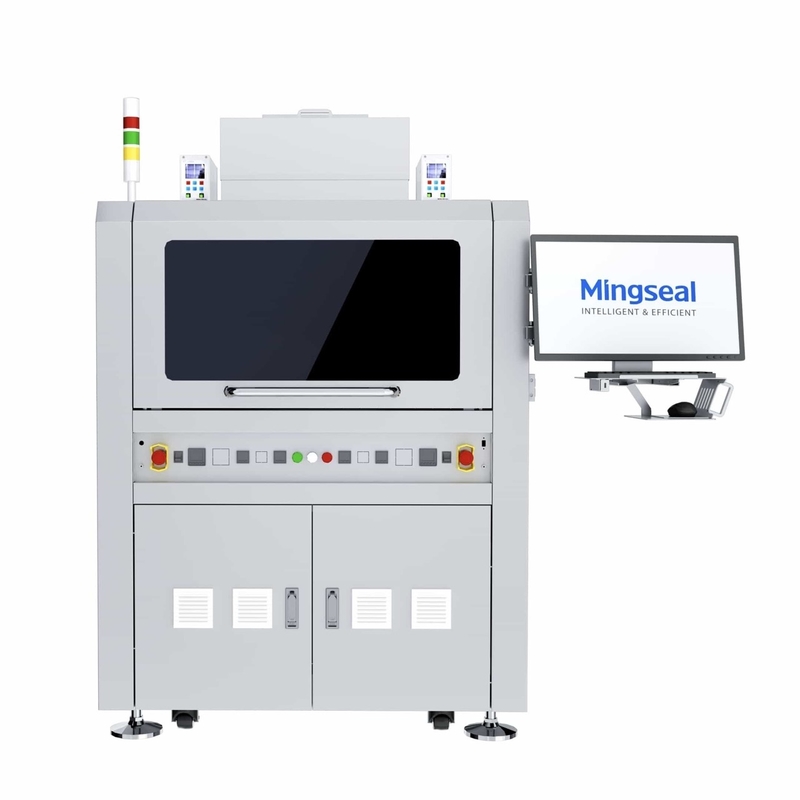

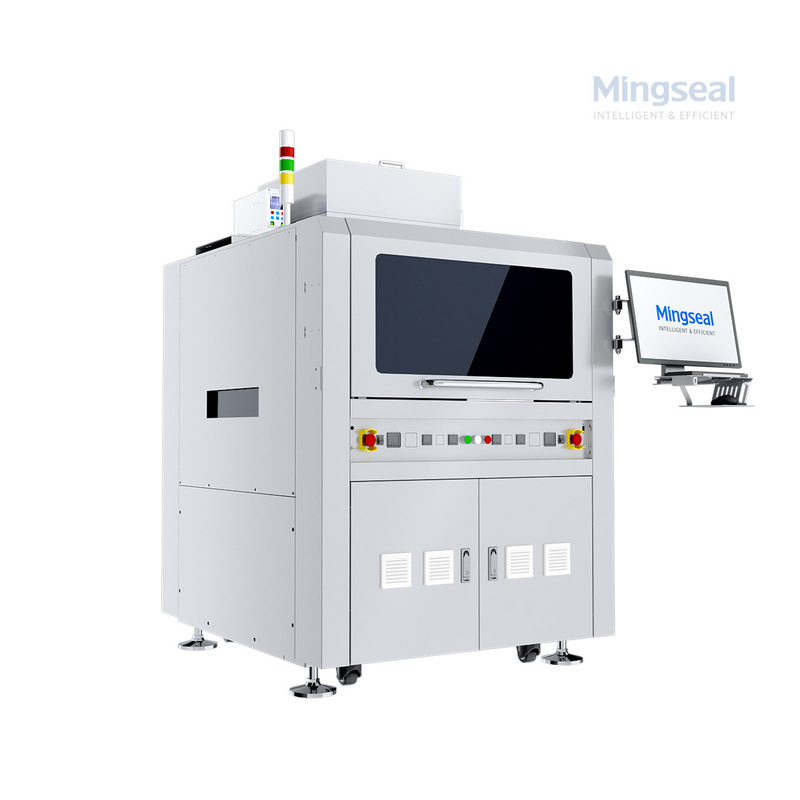

The Mingseal FS200 Series Inline Visual Dispensing Machine is specifically engineered to help manufacturers achieve superior output with lower cost and space requirements compared to traditional single-head dispensers.

The FS200 features a dual-station configuration, enabling two work areas to operate independently yet simultaneously. This unique design allows one production line to handle twice the output of a typical single-head system while saving up to 20% factory floor space. Better yet, its overall cost is 10–20% lower than investing in two separate single-head units.  For customers in Southeast Asia, Europe, and North America looking for reliable yield improvement without inflating factory budgets, the FS200 is a smart investment for next-generation electronics assembly.

Key Advantages

• Higher Productivity: Its two independent dispensing heads achieve up to 80% higher throughput on the same line.

• Lower Cost, Smaller Footprint: Save 10–20% on upfront investment and reduce space requirements by about 20%.

• 360° Rotary Module: Ensure perfect adhesive coverage even on cylindrical, curved, or multi-angled parts.

• Vision-Guided Accuracy: Provide highly consistent glue dots and lines, which directly boost product yield.

• Smart Integration Ready: Include MES connections, barcode scanning, and inline communication with upstream and downstream stations.

Typical Applications

✔ Optical module assembly (lens bonding, housing sealing)
✔ Micro motor bonding and dam & fill processes
✔ Flexible circuit reinforcement and protective coating
✔ Multi-surface adhesive application for small precision parts
✔ Advanced consumer electronics sub-assemblies


FAQ

Q1: What makes this machine more efficient than traditional dispensers?
A: It uses two independent heads that work at the same time, doubling capacity while saving floor space and cost compared to buying and running two separate units.

Q2: Can it handle complex shapes and tight areas?
A: Yes. The optional 360-degree rotary module enables precise adhesive application on curved, angled, or multi-surface components.

Q3: Is the FS200 suitable for flexible, high-mix production?
A: Absolutely. With programmable heads, quick setup, and smart barcode tracking, it’s great for small runs or large batches alike.

Q4: How does it integrate into our existing production lines?
A: It uses industry-standard SMT conveyors, SMEMA interface, and supports MES or ERP connections for seamless smart factory integration.

About Mingseal

Mingseal is a trusted manufacturer of high-precision inline and desktop dispensing equipment for the global electronics, optical, and precision assembly industries. We design flexible, modular systems that help factories in Asia, Europe, and the Americas boost productivity, yield, and cost-effectiveness. If you need a partner to upgrade your line with stable, smart dispensing, we’re ready to help.

Contact Mingseal today to learn how the FS200 can fit into your next-generation production line.
