| Brand Name: | Mingseal |
| Model Number: | FS200A |
| MOQ: | 1 |
| Price: | $28000-$150000 / pcs |
| Delivery Time: | 5-60 Days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
Lid Attach TIM & AD Adhesive Application Inline Visual Dispensing Machine

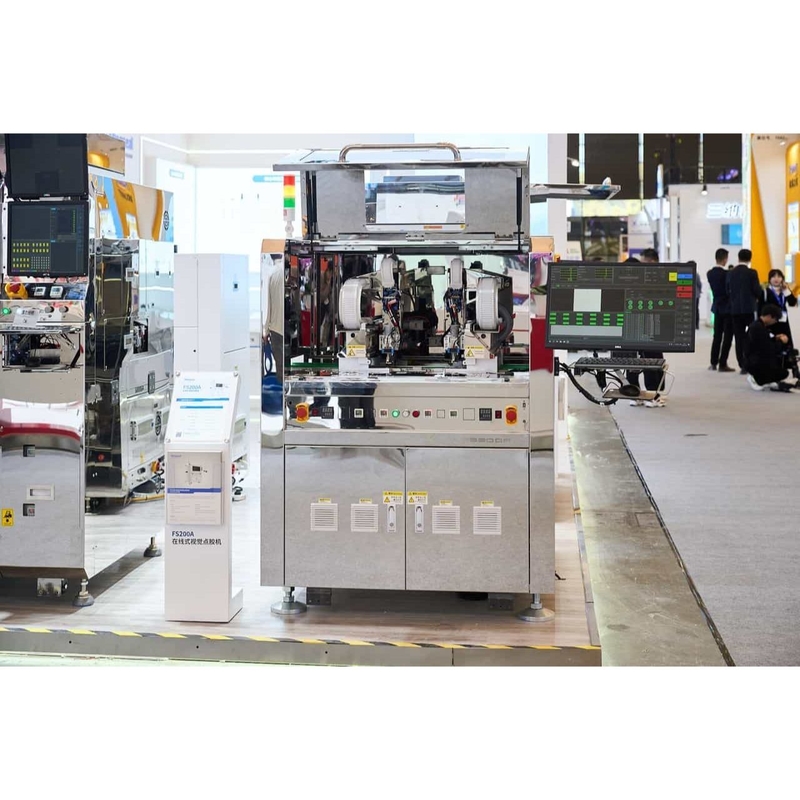

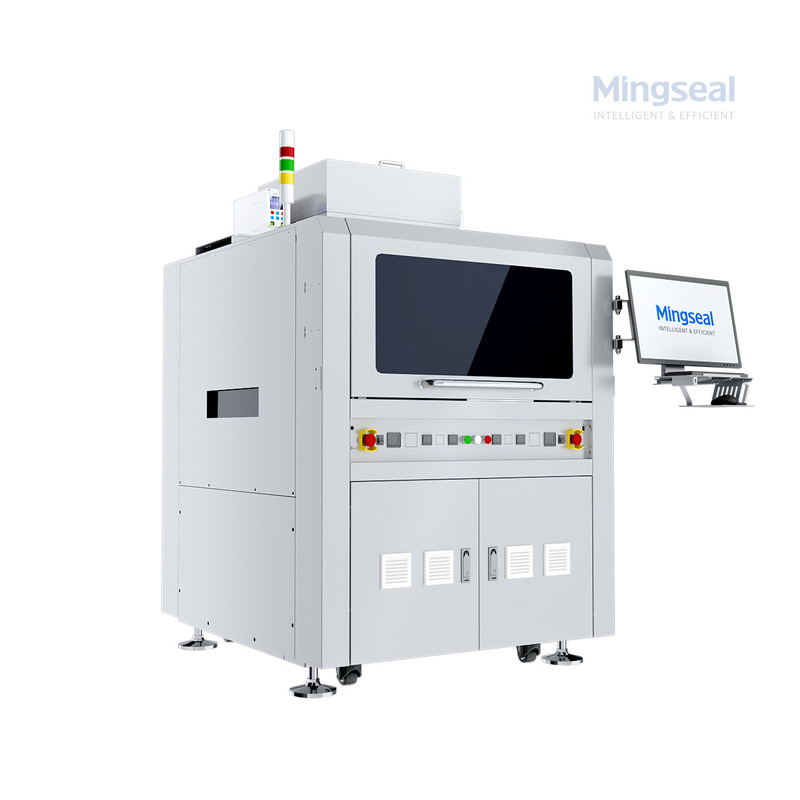

The Mingseal FS200 Series Inline Visual Dispensing Machine is an advanced, cost-effective solution designed for demanding Lid Attach applications in CPU, GPU, or high-power IC module assembly.
Unlike traditional single-station systems, the FS200 adopts a dual-station configuration with independent dispensing heads that work in parallel or sequentially. This boosts daily throughput significantly while ensuring each site receives consistent, accurate adhesive volume. At its core, the FS200 integrates an optional precision concentric screw valve, ensuring stable flow control for high-viscosity TIMs and precision adhesives.
Key Advantages
Typical Applications
✔ CPU / GPU Lid Attach with TIM bonding
✔ High-power IC package sealing
✔ Semiconductor underfill or adhesive dam application
✔ Adhesive application for heat sink or spreader attachment
✔ Multi-step semiconductor encapsulation
✔ Lid sealing in memory or storage module assembly
Technical Specifications
|
Motion system |
Transmission composition |
X/Y: linear motor Z: servo motor &screw module grating ruler resolution:0.5μm |
|
Maximum dispensing operation range |
X*Y: 330*205mm/330*170mm (single-track/double-track) |
|
|
Effective stroke |
X*Y: 600*700mm |
|
|
Repetitive positioning accuracy(3sigma) |
X/Y:≤±10μm; Z:≤±10μm |
|
|
Positioning accuracy |
X/Y:≤±15μm; Z:≤±15μm |
|
|
Maximum motion speed |
X/Y:1300mm/s; Z:500mm/s |
|
|
Maximum acceleration |
X/Y:1.3g; Z:0.5g |
|
|
Positioning accuracy of double-valve module |
W-axis:≤0.025mm; U-axis:≤0.025mm |
|
|
compatibility |
Dark-colored objects can be detected, but the glass surface cannot be detected. |
|
|
Vision system |
Visual positioning mode |
Mark/product appearance feature |
|
Maximum view field of camera |
25.4*25.4mm |
|
|
Fly-shooting positioning |
Max:300mm/s |
|
|
Track system |
Number of tracks |
Single-track/double-track (optional) |
|
Track parallelism |
Widest and narrowest parts:<0.1mm |
|
|
Track width adjustment range |
40-205mm |
|
|
Carrier plate working flatness |
≤0.01mm |
FAQ
Q1: What makes the FS200 suitable for Lid Attach processes?
A: The FS200 combines the concentric screw valve for precise glue flow with inline vision inspection and dual-station flexibility — ideal for thermal interface material or adhesive bonding.
Q2: How does the dual-head system improve efficiency?
A: Two stations can run simultaneously with separate process parameters. For example, one can handle TIM, the other AD, or both can process the same product for doubled UPH.
Q3: Can it connect with our MES or ERP?
A: Yes. The FS200 fully supports semiconductor factory communication protocols, making it easy to dock with MES, ERP, and other smart systems.
Q4: Is it more cost-effective than conventional Lid Attach equipment?
A: Absolutely. Many high-end Lid Attach systems offer similar specs at a higher cost. The FS200 achieves the same reliability with flexible modules and a better ROI.
About Mingseal
Mingseal is a trusted precision dispensing equipment manufacturer serving semiconductor, consumer electronics, and advanced assembly industries worldwide. We specialize in smart, modular inline solutions that maximize throughput, yield, and cost-efficiency.
Contact Mingseal today to boost your Lid Attach line performance with next-generation dual-station precision!
