Fully-Automatic Dispensing Machine for New Energy FPC Manufacturing
The FS800 series Fully-Automatic Dispensing Machine is an advanced inline dispensing solution tailored for the fast-growing new energy vehicle (NEV) battery FPC-FFC circuit and battery signal acquisition module industry. It is purpose-built to handle precise bonding and protective coating processes for flexible circuits, signal sensors, connectors, nickel strips, and NTC thermistors used in smart battery management and temperature monitoring.

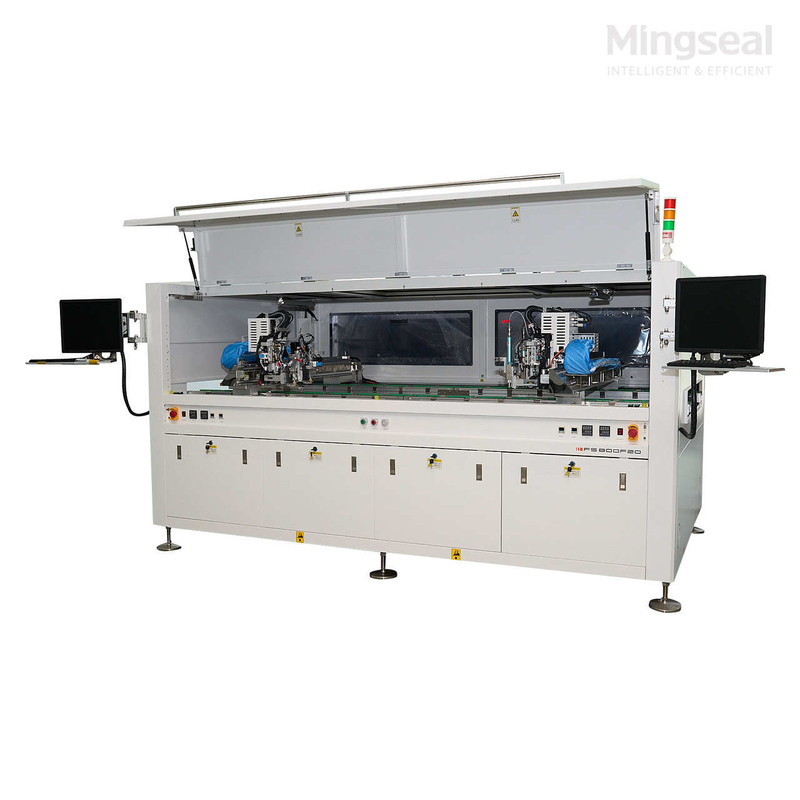

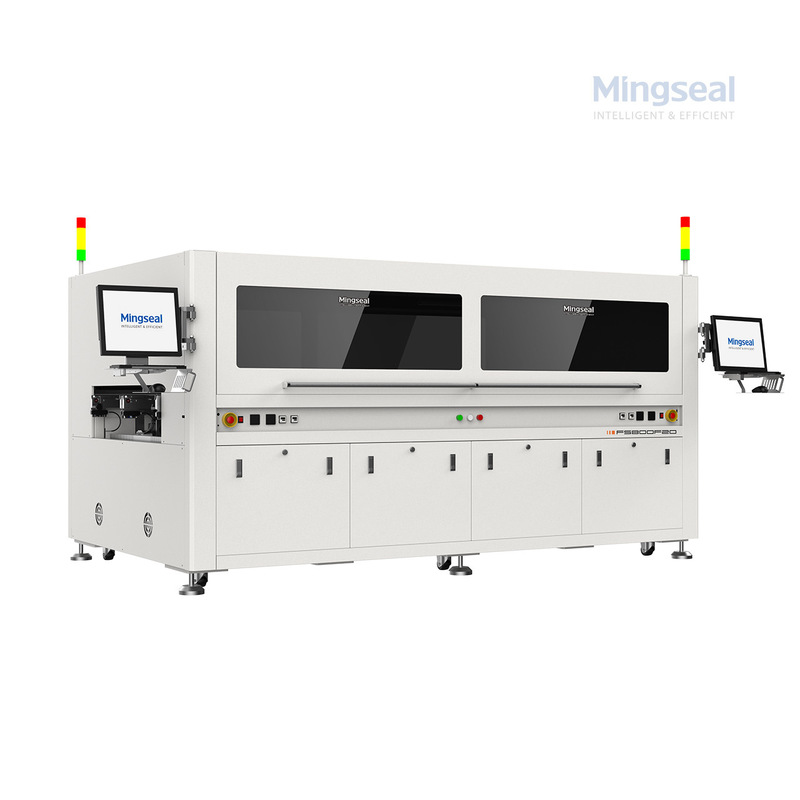

The FS800F15 is equipped with a single valve configuration offering a maximum dispensing range of 1700mm on a dual-track system, enabling efficient inline processing of large flexible boards or multiple smaller panels simultaneously. The machine is optimized for demanding applications that require high glue control accuracy — especially for NTC thermistors where adhesive quantity and flatness are critical for precise temperature reading, or FR4/Nickel Strip bonding, where uniform glue thickness, no air bubbles, and strong adhesion directly affect battery safety and signal integrity.
Key Advantages
Applications
✓ EV Battery FPC-FFC Flexible Circuit Bonding
✓ Battery Signal Collection Modules
✓ NTC Thermistor Temperature Sensing Points
✓ Nickel Strip Bonding & Insulation
✓ Connector & Terminal Potting/Sealing
✓ Solder Joint Protective Coating
Technical Specifications
| FS800 Series Fully-Automatic Dispensing Machine | |
| Structure |
Floor-mounted gull-wing door type Left- right XYZ dispensing actuation modules+Double track |
| Transmission Method X/Y axis | X/Y: Linear motor +Raster Ruler Z-axis: Servo motor+Screw module |
| Number of Axis | Total 6 axis ( Dual XYZ actuation units) |
| Dimension ( W × D × H) | 2400 × 1800 × 1600mm |
| Dispensing Range ( W × D) | 1500 × 800mm |
| Max . speed X/Y/ Z axis | XY: 1000mm/s Z: 500mm/s |
| Max . Acceleration | XY: 1g Z: 0.5g |
| Repeatability ( 3sigma) | XY: ±0.015mm Z: ±0.005mm |
| Positioning Accuracy (3sigma) | XY: ±0.03mm Z: ±0.01mm |
| Track Width Adjustment Method | Automatic width adjustment ( 1 fixed , 3 movable) |
FAQ
Q1: Can the FS800 series ensure glue consistency for sensitive NTC thermistors?
A: Yes. The piezoelectronic jetting valve provides ultra-precise non-contact dispensing, ensuring accurate glue volumes and flatness for temperature detection reliability.
Q2: How does it handle nickel sheet bonding for battery modules?
A: The FS800 series achieves stable glue thickness with bubble-free bonding, ensuring safe and durable nickel sheet connections under high current.
Q3: Can it protect connectors and solder joints from oxidation?
A: Absolutely. The system provides uniform insulation coating, safeguarding solder points and terminals from moisture or short-circuits.
Q4: Is the machine suitable for high-volume inline production?
A: Yes. The large 1700mm range, dual track, and optional multi-panel support help automotive battery makers maximize throughput while maintaining process stability.
