Drone Camera Modules Adhesive Dispensing Machine — UV Curing Inline Automatic Glue Dispenser

Product overview

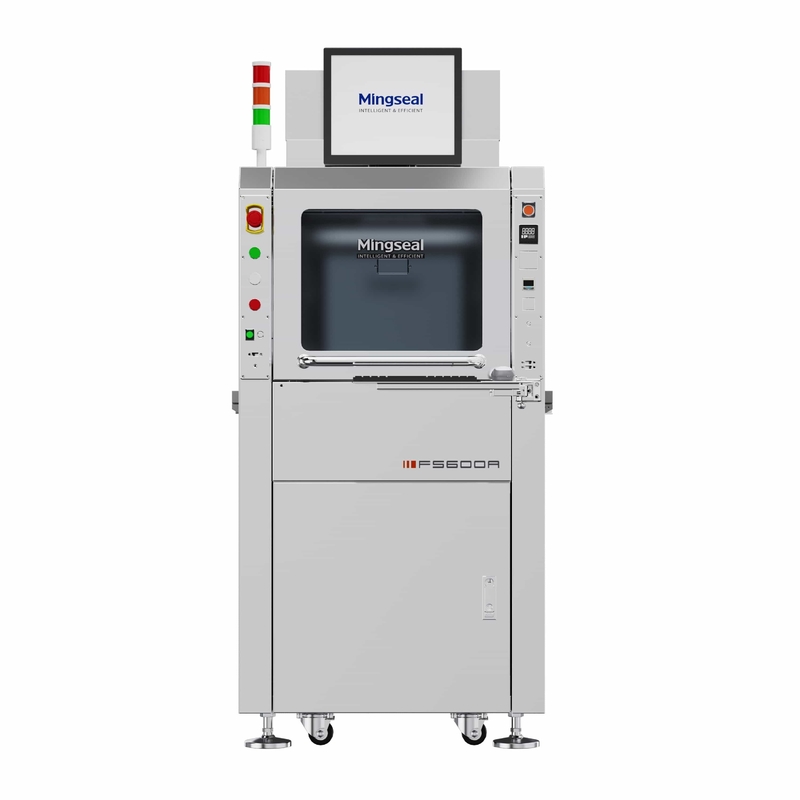

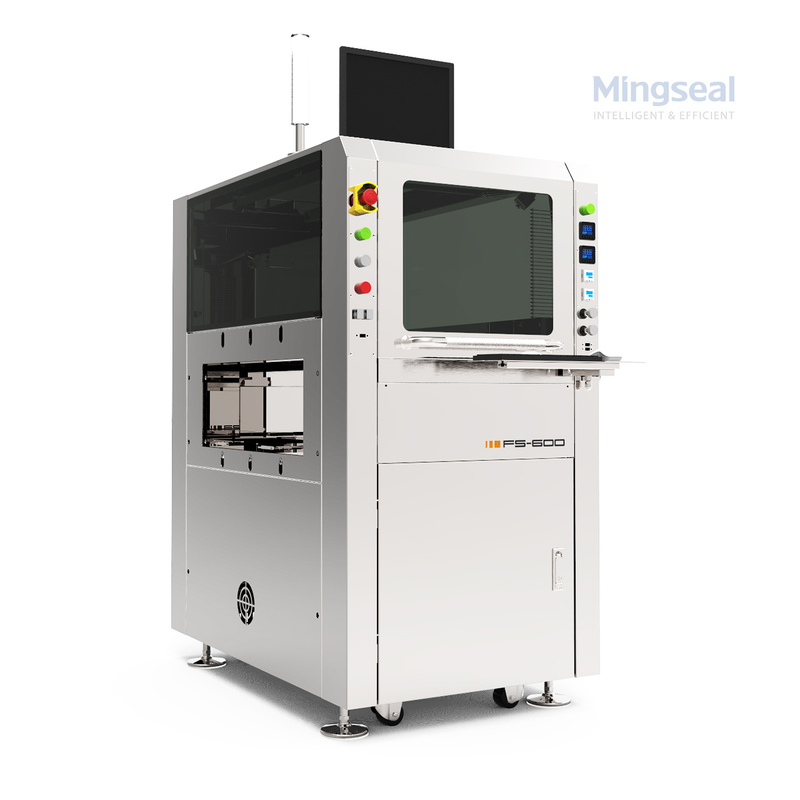

This inline adhesive dispensing machine is built for drone camera module bonding and related optics assembly. Key features include precision metering (syringe cartridge or heated feed line), integrated 2D/3D vision alignment, onboard UV cure station for rapid curing, recipe storage and MES/PLC interfaces for traceability. Suitable for inline conveyor or indexed cell integration, it minimizes stringing and secures optical alignment with repeatable dispense quality.

Problem → Cause → Solution

Problem: Drone camera modules require exact adhesive volume, placement and rapid cure to maintain optical alignment and reliability.
Cause: Manual dispensing, variable adhesive viscosity and slow curing cause misplacement, voids and long cycle times.
Solution: Combine precise metering, heated feed or syringe control, vision alignment and inline UV curing to stabilize volume, ensure accurate placement, and cure instantly to support high throughput. Validate recipes in pilot runs and lock them into MES.

Applications

• Adhesive dotting and bead sealing for drone camera lenses, lens stacks and module housings.
• UV curable adhesive dispensing and immediate cure for optical bonding and fixation.
• Inline SMT/assembly adhesive tasks where rapid cure and positional accuracy are critical.

How it works

1. Load adhesive in syringe cartridge or connect heated feed line; set temperature if required.
2. Load recipe and position modules on conveyor; vision aligns fiducials.
3. Metered dispense: valve/pump deposits dots/beads per path; dual‑head or multi‑nozzle options apply parallel deposits.
4. Inline UV cure: LED UV module cures adhesive in milliseconds to seconds; AOI inspects deposit and cured result; process logs stored to MES.

How to choose

• Adhesive type: choose UV‑curable adhesive for instant cure; for filled or thixotropic adhesives use heated feed + piston/peristaltic pump.
• Placement tolerance: choose vision alignment when placement tolerance ≤ ±0.02 mm.
• Throughput: match cure time and conveyor indexing; consider multi‑UV stations for high UPH.
• Nozzle & pattern: select nozzle geometry to meet bead profile and use pilot runs to confirm cure behavior and optical performance.
• Integration: confirm MES/PLC protocols, conveyor I/O mapping and sample indexing before deployment.

Installation & maintenance

Installation: inline conveyor or indexed cell mount; connect power, compressed air (if pneumatic), UV safety interlocks and network I/O. Ensure PPE and shielding for UV.
Commissioning: run adhesive × nozzle × cure × speed matrix to create validated recipes and AOI acceptance criteria.
Maintenance: daily nozzle cleaning in high‑use lines; replace UV LED module per lifetime rating; flush heated feed lines during material changes.

FAQ

Q: What adhesives are supported for optical bonding?
A: Supports UV‑curable adhesives for instant cure and many solvent/epoxy adhesives when using heated feed and appropriate cure method. Validate adhesive choice with pilot tests.
Q: How fast is the UV cure?
A: Cure time depends on adhesive and irradiance; typical LED UV cure ranges from hundreds of milliseconds to a few seconds. Validate with manufacturer cure chart.
Q: Can the system integrate with my production line and MES?
A: Yes — supports Digital I/O, RS‑485/Modbus and optional Ethernet/MES recipe push/pull; confirm protocol and I/O mapping at order.
