250L/Min Flexible Circuit Board Reinforcement Solution Consumer Electronics Hot Glue Dispenser

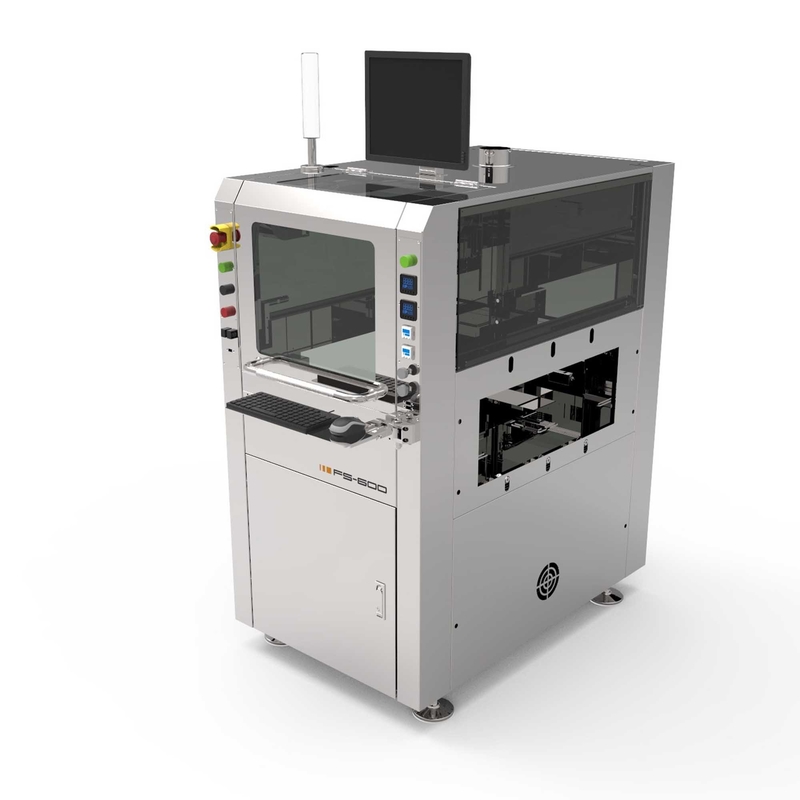

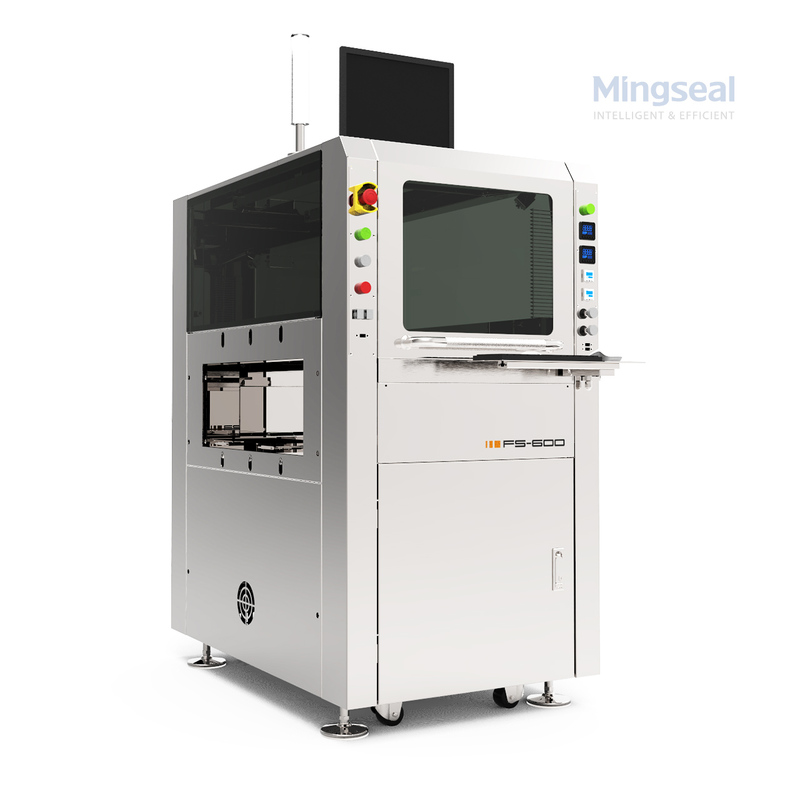

The Mingseal FS600 Series Inline Visual Dispensing Machine is specially designed to tackle the unique challenges of reinforcing flexible circuits in high-volume production environments. Unlike generic dispensers, this system is equipped with advanced tilted dispensing capability, allowing glue to reach under connectors or along edges where flat application isn’t enough.

Combined with real-time liquid level alarms, smart barcode machine recognition, and automatic visual alignment, the FS600 delivers consistent glue application and traceability for factories in Southeast Asia, India, and other global electronics manufacturing regions.

Problem

Flexible circuit board reinforcement in consumer electronics fails when adhesive cannot reach under connectors or along side-walls, causing weak bonds, intermittent connections, and field reliability returns that increase warranty costs.

Cause

Flat-dispensing machines cannot angle the nozzle to reach tight spaces under connectors or along side walls. Undetected empty material reservoirs, manual barcode mix-ups, and a lack of visual alignment allow inconsistent placement and adhesive gaps to pass through until electrical testing.

Solution

The FS600A series tackles FPC reinforcement with advanced tilted dispensing that applies adhesive at precise angles to reach corners, side walls, and under-connector spaces. Real-time liquid level alarms prevent dry runs, smart barcode recognition prevents material and recipe mix-ups, and high-resolution visual alignment guides each glue point for repeatable accuracy.

Implementation steps: 1) Set tilt angle per connector geometry and side-wall clearance 2) Configure barcode recognition and recipe-to-board mapping 3) Calibrate liquid level alarm thresholds 4) Validate adhesive coverage with visual alignment and AOI 5) Save validated recipe with full traceability.

Core Advantages

• Tilting Glue Application: Apply adhesive at precise angles — crucial for reaching corners, side walls, or tight spaces on flexible boards.
• Liquid Level Alarm System: Automatic sensors constantly monitor material levels in the tank and nozzles.
• Stable Visual Positioning: High-resolution cameras guide the nozzle path for each glue point.
• Compact Footprint for High-Density Lines: Save floor space while handling high-speed throughput.

Typical Applications

✔ Precision glue dispensing for VCM spring plate bonding
✔ Reinforcement and sealing for micro metal parts
✔ Adhesive application for mini coil assemblies
✔ Encapsulation and UV-curable adhesive processes in compact motor modules
✔ Slanted surface dispensing for fine optical and mechanical interfaces

Technical Specifications

FAQ

Q1: What glue types does the FS600A support?
A: The FS600 series is compatible with various fluids, such as epoxy, UV glue, PUR, solder paste, and dustproof sealants.

Q2: How does the FS600A ensure ultra-thin glue layers?
A: Its high-precision pad printing head guarantees even glue distribution below 30µm. Real-time AOI checks glue thickness after printing to maintain stable quality.

Q3: Can it connect with existing production lines?
A: Yes. The FS600A fully supports inline conveyor systems, real-time MES docking, and can easily integrate with SMT and CCM module lines.
