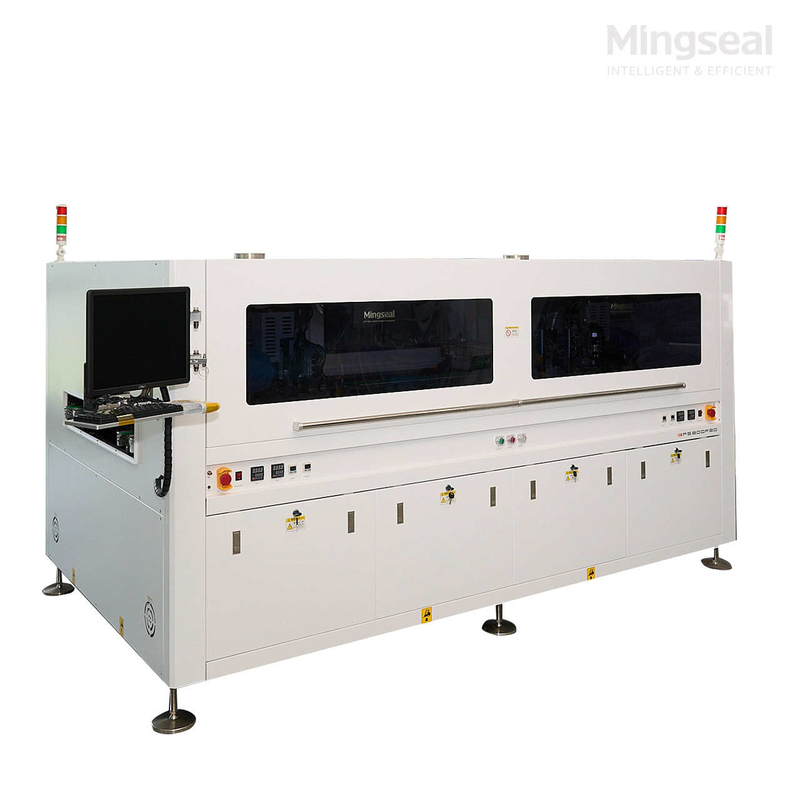

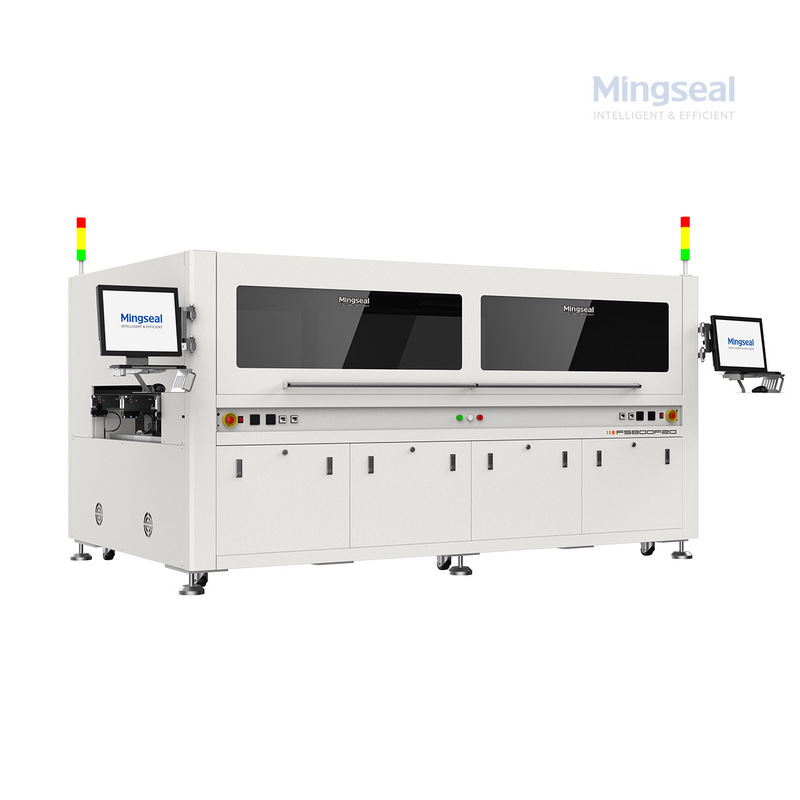

Fully-Automatic Dispensing Machine for EV Battery FPC Production
The FS800 Series Fully-Automatic Dispensing Machine is an advanced, high-speed inline dispensing solution engineered for the new energy vehicle (NEV) battery FPC (Flexible Printed Circuit) and FFC (Flexible Flat Cable) production industry. Designed with the flexibility to handle both customized FPC modules and general-purpose FFC combinations, the FS800 meets demanding process needs for sealing, bonding, and encapsulation with superior speed, precision, and cost efficiency.
The FS800 offers a max. dispensing range of 1200mm, and supports double tracks with dual-head and dual-valve (or four-valve) configurations. This enables synchronous or asynchronous dispensing, increasing UPH while ensuring process stability across varying panel sizes.
Key Advantages
Applications
✓ Automotive EV Battery Flexible Circuit Assembly
✓ Custom FPC Bonding & Sealing
✓ General FFC Module Dispensing
✓ BMS (Battery Management System) FPC Encapsulation
✓ Multi-Size Panel Inline Production
✓ Complex Interconnect Module Glue Sealing
Technical Specifications
| FS800 Series Fully-Automatic Dispensing Machine | |
| Structure |
Floor-mounted gull-wing door type Left- right XYZ dispensing actuation modules+Double track |
| Transmission Method X/Y axis | X/Y: Linear motor +Raster Ruler Z-axis: Servo motor+Screw module |
| Number of Axis | Total 6 axis ( 2 sets X/Y/Z axis ) |
| Dimension ( W × D × H) | 2100 × 1800 × 1600mm |
| Dispensing Range ( W × D) | 1200 × 800mm |
| Max . speed X/Y/ Z axis | XY: 1000mm/s Z: 500mm/s |
| Max . Acceleration | XY: 1g Z: 0.5g |
| Repeatability ( 3sigma) | XY: ±0.015mm Z: ±0.005mm |
| Positioning Accuracy (3sigma) | XY: ±0.03mm Z: ±0.01mm |
| Track Width Adjustment Method | Automatic width adjustment |
FAQ
Q1: Is the FS800 suitable for different FPC/FFC sizes?
A: Yes. The adjustable track width and modular design allow quick adaptation for small to large panels, single valve operating range up to 1400mm long.
Q2: Can I run multiple products simultaneously?
A: Absolutely. The double-track and double-execution modules enable parallel operation of multiple small products to maximize line productivity.
Q3: Does the system handle complex connector or edge sealing?
A: Yes. The tilting and 360° rotation modules ensure perfect side or multi-angle dispensing for complex interconnects.
Q4: Is large-volume glue feeding supported?
A: Yes. Bulk glue tanks reduce refill downtime, ideal for high-volume EV battery FPC/FFC production.
