Camera Module & Underfill Inline Visual Glue Dispensing Machine

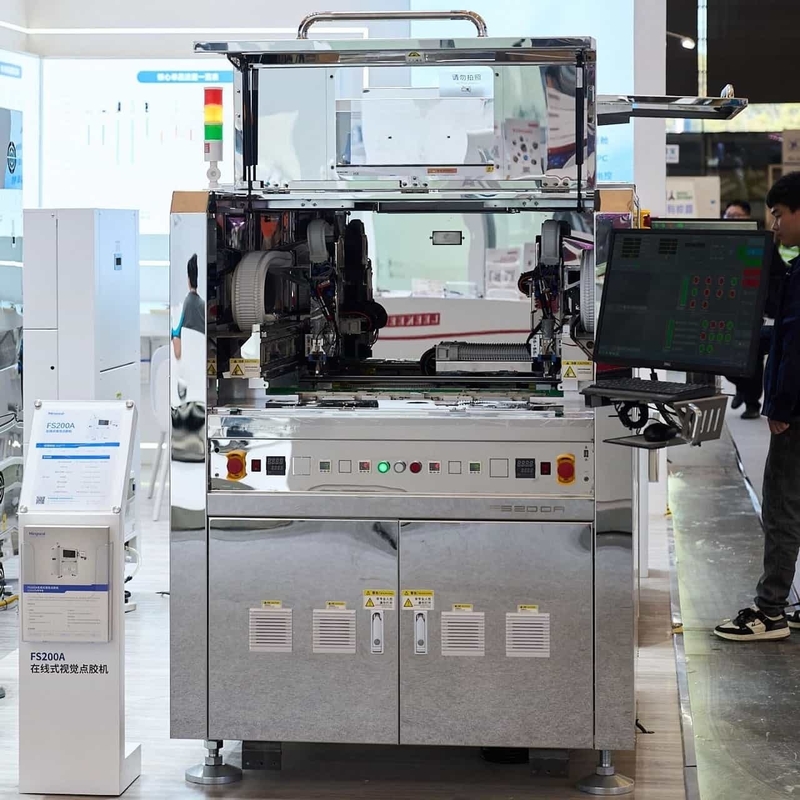

The Mingseal FS200 Series Inline Visual Dispensing Machine is an advanced dual-head, high-precision inline dispenser designed specifically for demanding manufacturers in camera modules, auto-focus motors, flexible circuits, MiniLED packaging, and general SMT assembly.
The FS200 Series integrates dual independent valves that can work simultaneously or asynchronously, enabling highly flexible glue or solder paste dispensing for multiple processes in one pass. Its modular build supports 3D AOI and contour inspection (optional), delivering precise glue shape monitoring and reliable process control.
Key Advantages
Typical Applications
✔ Camera module glue sealing and solder paste application
✔ Auto-focus motor assembly with precise epoxy and underfill
✔ Flexible circuit bonding, coating, or reinforcement
✔ MiniLED and advanced LED encapsulation lines
✔ Lid attach, dam & fill, vent gluing, metal dome glue spots
✔ PCB solder paste coating and chip underfill
✔ Complex multi-step bonding or protective gluing
Technical Specifications
|
Application Fields |
CCM, VCM, FPC, MiniLED, and SMT |
|
|
Applicable processes |
Underfill, SMD encapsulation, PUR glue dispensing for middle bezel, Dam & Fill, FPC component reinforcement, lens gluing, vent gluing, dust-catching gluing, metal dome gluing, solder paste dispensing, and chip coating |
|
|
Motion system |
Transmission composition |
X/Y: linear motor Z: servo motor &screw module grating ruler resolution:0.5μm |
|
Maximum dispensing operation range |
X*Y: 330*205mm/330*170mm (single-track/double-track) |
|
|
Effective stroke |
X*Y: 600*700mm |
|
|
Repetitive positioning accuracy(3sigma) |
X/Y:≤±10μm; Z:≤±10μm |
|
|
Positioning accuracy |
X/Y:≤±15μm; Z:≤±15μm |
|
|
Maximum motion speed |
X/Y:1300mm/s; Z:500mm/s |
|
|
Maximum acceleration |
X/Y:1.3g; Z:0.5g |
|
|
Positioning accuracy of double-valve module |
W-axis:≤0.025mm; U-axis:≤0.025mm |
|
|
compatibility |
Dark-colored objects can be detected, but the glass surface cannot be detected. |
|
|
Vision system |
Visual positioning mode |
Mark/product appearance feature |
|
Maximum view field of camera |
25.4*25.4mm |
|
|
Fly-shooting positioning |
Max:300mm/s |
|
|
Track system |
Number of tracks |
Single-track/double-track (optional) |
|
Track parallelism |
Widest and narrowest parts:<0.1mm |
|
|
Track width adjustment range |
40-205mm |
|
|
Carrier plate working flatness |
≤0.01mm |
|
FAQ
Q1: What makes the FS200 Series different from basic dispensers?
A: Its dual-head setup, integrated inspection, and robust mineral base ensure higher yield, stable high-speed operation, and full inline automation — ideal for high-value, high-volume electronics.
Q2: Can it handle solder paste dispensing?
A: Yes! The dual valves support precise solder paste coating alongside standard epoxy or UV glue, expanding your process capability in one machine.
Q3: How does it prevent whole line downtime?
A: The separated track design means you can service or switch out one section while the rest of the line stays running.
Q4: Is 3D AOI required?
A: Not required, but strongly recommended for complex profiles. It helps verify glue or solder paste contours to catch shape or volume errors in real time.
Q5: Where is Mingseal’s FS200 used today?
A: Many top-tier factories in Southeast Asia, Vietnam, and Japan rely on FS200 machines for high-speed, high-precision bonding in camera modules, auto-focus motors, and next-gen LED lines.
About Mingseal
Mingseal is an industry leader in inline visual dispensing, trusted by global electronics brands for smart dispensing, real-time inspection, and automated process control. We help factories build reliable, high-yield assembly lines with flexible modular solutions and rapid local support.
Contact Mingseal now to see how the FS200 Series can boost your production quality and keep your lines moving!
