MiniLED/LED Display Glue Dispenser — ±0.03 mm Placement Accuracy

Product Overview

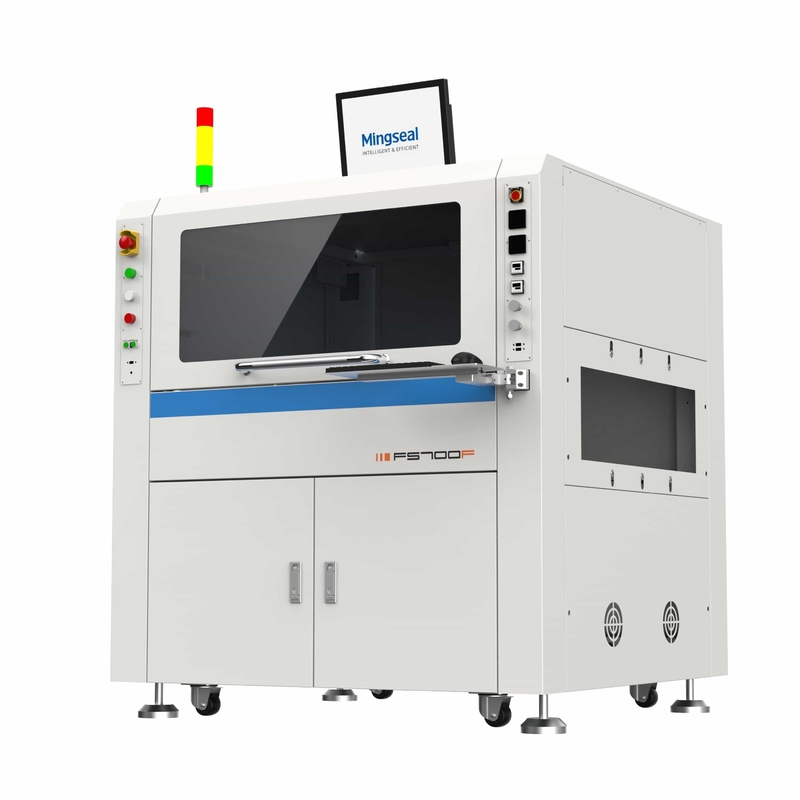

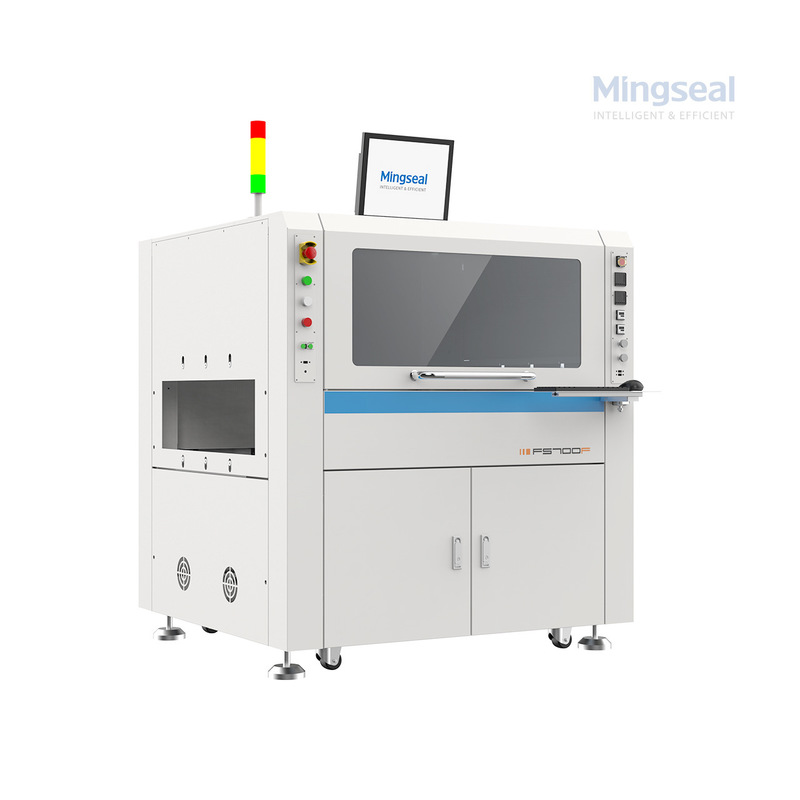

This automatic glue dispensing machine is built for MiniLED and LED display manufacturing where tiny, repeatable glue dots and short beads are required across dense arrays. The system combines precise motion, configurable dispense heads, and recipe control to place adhesive accurately on small pads. It mounts easily on a production line or robotic workcell and supports quick nozzle changes and inline verification options.

Problem

MiniLED and fine‑pitch LED lines fail when glue dots vary in size or position, causing poor soldering, optical defects, or short circuits that increase rework.

Cause High density arrays magnify small placement and volume errors. Standard dispensers or manual application cannot keep dot position and volume consistent across thousands of LEDs, and lack of inline checks lets defects pass to later stages.

Solution

This dispenser uses a high-precision motion stage and tuned dispense control to place consistent micro-dots and short beads across large panels. The system supports syringe, valve or jet heads to match fluid viscosity, stores job recipes for repeatability, and can link to vision inspection to verify placement on the fly. Quick access for cleaning and modular nozzle options reduce downtime.

Key Specifications

Application

• MiniLED array glue dots for display modules and backlight units.
• LED placement tack glue for COB and SMD LED lines.
• Small optics and sensor module glue dosing where tight pitch and accuracy are required.
• High‑volume panel runs and pilot R&D where quick recipe recall saves setup time.

How It Works

The controller moves the selected dispense head to programmed coordinates using the motion stage. For each location the head issues a timed pulse or jet to deposit the set volume. Vision alignment (if fitted) finds fiducials and adjusts coordinates for shift and rotation. Short pulses or high‑frequency jets create micro‑drops while syringe or auger heads handle larger dots or beads. The recipe records pulse, pressure and motion settings for repeatable runs.

How To Choose

1. Confirm target dot volume and pitch; provide a sample panel drawing.
2. Provide adhesive viscosity and cure method so we can recommend the head type (jet for nL drops, syringe/auger for µL dots).
3. State required throughput (parts/hour) and array density to size motion and head frequency.
4. Decide if inline vision inspection is needed for in‑process verification.
5. Confirm mounting and integration details (conveyor/robot flange and PLC signals).
6. Request a bench test with your panel and adhesive for final tuning.

FAQ

Q1: Can this dispenser place dots on 0.5mm pitch MiniLED arrays?
A1: Yes. With micro‑jet head and vision alignment, accurate dot placement at 0.5mm pitch is achievable; send panel drawings for verification.

Q2: Which head is best for very small dots?
A2: The micro‑jet head is best for nL‑scale drops. For µL deposits choose syringe or auger heads. We recommend a sample test to confirm.

Q3: How do you ensure consistency across large panels?
A3: Use vision fiducial alignment, stored recipes, stable feed and calibrated heads. Regular purge and nozzle checks keep volume stable.

Q4: Do you support inline inspection?
A4: Yes. We can add a camera for alignment and deposit inspection to flag out‑of‑tolerance spots in real time.

Q5: Can you run tests with our adhesive and panel?
A5: Yes. Send samples and part drawings; we will run a bench test and return a report with recommended settings.
