| Brand Name: | Mingseal |
| Model Number: | Selection based on actual usage scenarios |
| MOQ: | 1pc |
| Price: | $170-$400 / pc |
| Delivery Time: | 5-60 Days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
Quick Detail:
Description:

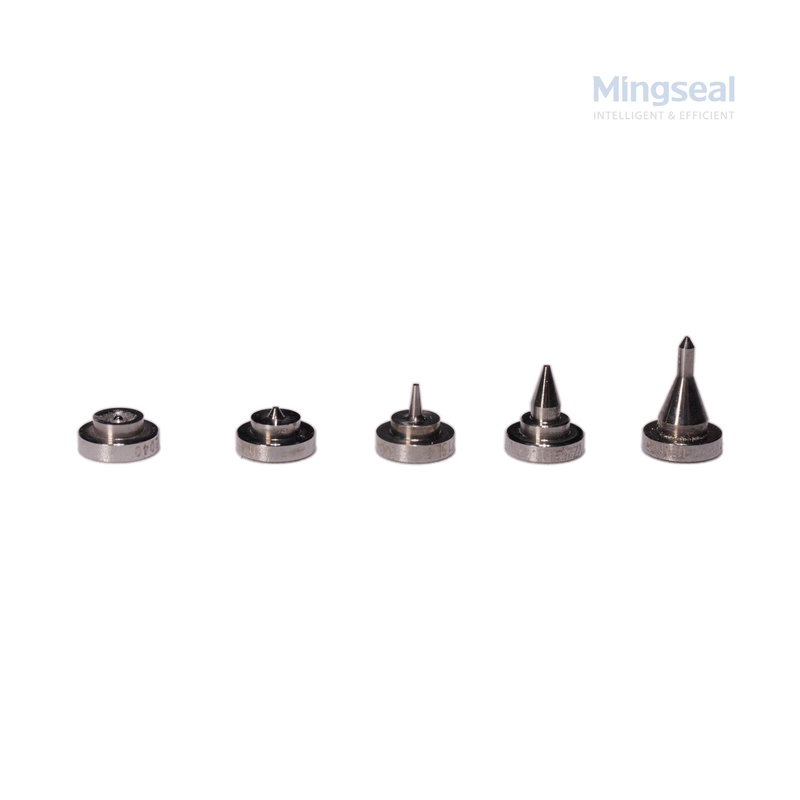

Piezoelectric jetting valve dispensing nozzle is a critical component in dispensing systems that utilize a piezoelectric actuator to precisely eject fluids without contact. This technology allows for high-speed, accurate dispensing of various materials, making it suitable for a wide range of applications, including electronics assembly, micro-dispensing, and more.
The nozzle inner diameter determines the size of the dispensed dots or lines. Mingseal’s common nozzle sizes range from 30µm to 400µm. Dispensing tips and nozzles can be made from different materials like tungsten steel, ceramic, PEEK, etc.
And glue dispenser nozzle shapes can be designed for different dispensing patterns and applications.
Applications:
üInk-jet printing
üPrecision coating
üMicro flow control
üEpoxy, UV, silicone, PUR, thermal setting glue, red glue, solder paste
üSemiconductor advanced packaging
üPiezo-jetting process
Dispensing Nozzles Selection List
| Type | Length / mm |
Material | ID / mm | Model | Picture |
| VZ type | 1.75mm | tungsten steel | 0.03mm | VZ03 | |
| 1.75mm | tungsten steel | 0.04mm | VZ04 | ||
| 1.75mm | tungsten steel | 0.05mm | VZ05 | ||
| 1.75mm | tungsten steel | 0.06mm | VZ06 | ||
| 1.75mm | tungsten steel | 0.07mm | VZ07 | ||
| 1.75mm | tungsten steel | 0.10mm | VZ10 | ||
| 1.75mm | tungsten steel | 0.15mm | VZ15 | ||
| 1.75mm | tungsten steel | 0.20mm | VZ20 | ||
| 1.75mm | tungsten steel | 0.25mm | VZ25 | ||
| 1.75mm | tungsten steel | 0.30mm | VZ30 | ||
| 1.75mm | tungsten steel | 0.40mm | VZ40 | ||
| VZ-T2 type | 2.25mm | tungsten steel | 0.05mm | VZ05-T2 | |
| 2.25mm | tungsten steel | 0.06mm | VZ06-T2 | ||
| 2.25mm | tungsten steel | 0.07mm | VZ07-T2 | ||
| 2.25mm | tungsten steel | 0.10mm |
