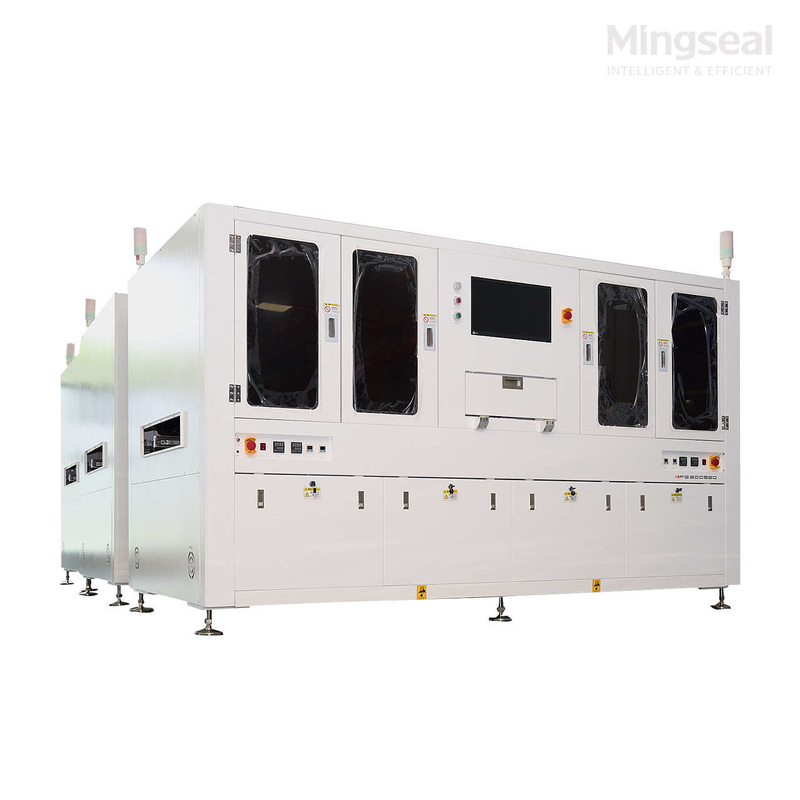

FS800S25 High-precision Large Format Dispenser 2650*800mm Cabinet Dispensing Machine
The large-stroke cabinet-type dispensing system FS800S25 with a working area of 2650×800mm is designed for high-volume, precision adhesive applications in industries such as new energy vehicles, battery packs, and large-format FPC/FFC assemblies. Featuring a robust floor-standing structure, auto-adjustable conveyor rails, and full-stroke motion control, the system enables accurate dispensing across oversized panels or multi-product fixtures. It supports integration with single or dual-valve configurations—such as piezo jet and screw valves—ensuring flexible process adaptation. Ideal for demanding processes like thermal material application, insulation coating, and structural bonding, this platform meets the requirements of large-area, high-throughput smart manufacturing.
Core Advantages
Technical parameters
| Model | FS800S25 |
| Structure | Floor-standing gull-wing door layout |
| Dual XYZ motion module + dual tracks | |
| Transmission mode X axis / Y axis | X/Y Linear motor + grating ruler |
| Z Servo motor + lead screw module | |
| Number of axes | 6axis(Dual XYZ Execution Unit) |
| Outer dimension(W×D×H) | 3500×1600×1600mm |
| Working range(W×D) | 2650×800mm |
| Track width adjustment method | Automatic width adjustment |
| Track width adjustment range | 150~400mm(Single track) |
| Z-axis load (kg) | 5 |
| Conveyor belt load (kg) | 10 |
| Maximum substrate thickness( mm) | 0.5~10mm |
| Maximum height allowed above the board | 25mm |
| Maximum height allowed under the board | 25mm |
| Conveyor track | Optional belt, chain, double speed chain(customized) |
| Camera pixels (optional) | 130W black and white (optional) |
| Light source | RGB color light source (optional) |
| Operating system | Win10 64-bit system |
| Input voltage | 220V AC 50±Hz |
FAQ
Q1: What product sizes can the large-stroke dispenser accommodate?
The system supports full-stroke dispensing over areas up to 2650×800mm, making it ideal for large battery modules, PACK structures, and oversized FPC panels.
Q2: Can the machine automatically adjust to different panel or module widths?
Yes, it features an auto-adjustable track system that adapts to varying product widths without manual realignment, improving changeover efficiency.
Q3: What types of valves can be integrated with this machine?
The equipment is compatible with both single and dual dispensing valves, including piezo jet valves and precision screw valves, allowing flexibility for different adhesive types and processes.
Q4: How is precise dispensing ensured over such a large area?
A high-precision motion platform, combined with closed-loop control and optional vision alignment, guarantees consistent dispensing accuracy across the entire working range.
