Flexible Circuit Assembly Automatic Epoxy Dispenser 6 Axis Hot Glue Inline Dispensing

Flexible Circuit Assembly Fully-Automatic Inline Dispensing System

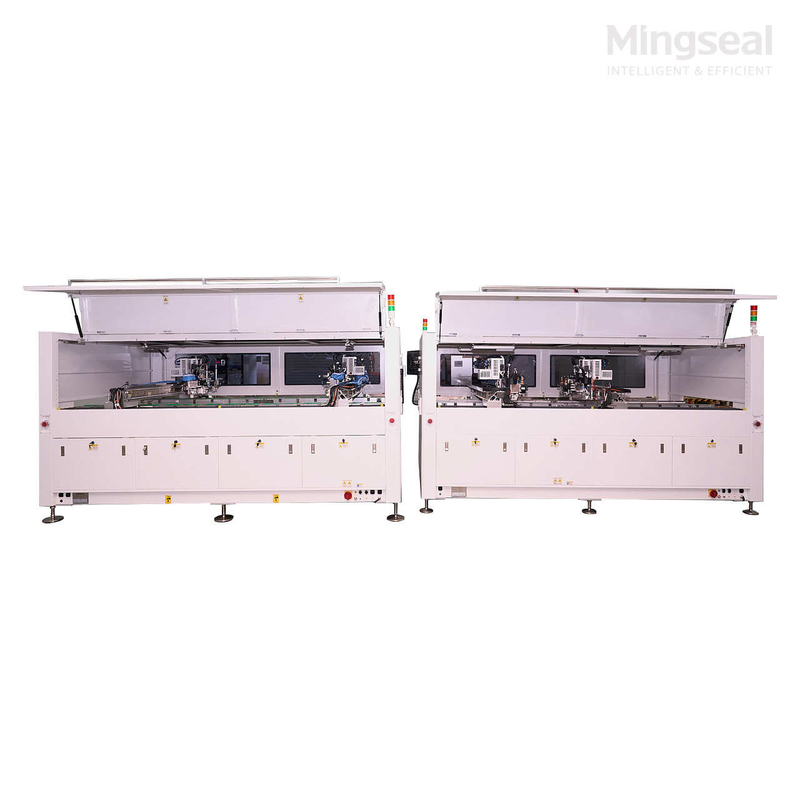

The FS800 Series Fully-Automatic Dispensing Machine is an advanced, high-speed inline solution designed for large-format flexible printed circuit (FPC) production in the new energy and electronics industries. Engineered to handle a wide range of product sizes — including extra-long panels up to 2600mm — the FS800 Series combines precise dispensing control, modular adaptability, and smart automation to meet the evolving needs of today’s flexible circuit manufacturers.

To meet high-mix, high-volume production targets, the FS800 supports dual heads, double valves, and a double-track conveyor system — allowing synchronous or asynchronous dispensing to cut cycle time significantly. For advanced process requirements, optional tilting and full 360° rotation modules enable reliable side or multi-directional connector sealing, ensuring complex boards and connectors are bonded precisely and securely.


Key Advantages

• Ultra-Long Panel Capability: Handle carrier plates up to 2600mm long, perfect for next-generation FPC/FFC or other oversized substrates.
• Dual-Track & Multi-Head System: Boost throughput by cutting down turnover time and enabling parallel operations.
• Flexible Valve Configuration: Support dual valves for different adhesive types or multi-stage processes, improving production versatility.
• Full Process Adaptability: Tilting, rotation, and multi-directional modules meet side glue lines and five-direction connector sealing needs.
• Large-Volume Glue Supply: Compatible with high-capacity glue tanks to reduce refill frequency and maintain continuous operation.

Applications

✔ Flexible Printed Circuit (FPC) & Flexible Flat Cable (FFC) Bonding
✔ New Energy Battery Module PCB Sealing
✔ Connector Multi-Directional Encapsulation
✔ Side Glue Line Dispensing
✔ Large-Panel Inline Potting Processes
✔ Complex Electronics Assembly with Dual-Glue Requirements


Core Modules

Double-Track Module
Optimization of carrier plate turnover time and improvement of UPH

Double-Valve Asynchronization Module
Achievement of double-valve synchronization/asynchronization and double-valve switching for dispensing, and auxiliary valve with compensation function

360° Rotation Module
Suitable for side dispensing process of connectors

Double-Execution Module
Four-valve synchronous dispensing can be configured and is compatible with small-size product panelization operation

FAQ

Q1: Can the FS800 handle multiple adhesive types?
A: Yes, the dual-valve asynchronous module makes it easy to dispense two different glues in sequence or parallel, saving setup time for multi-process boards.

Q2: How does the double-track design improve productivity?
A: It enables continuous loading/unloading, dramatically reducing idle time and ensuring maximum line utilization.

Q3: What special processes are supported?

A: The FS800 can integrate tilting and full 360° rotation modules for complex side dispensing and multi-angle connector potting.

Q4: How does Mingseal support global customers?
A: Mingseal provides full-cycle support — from custom R&D to local after-sales service — helping customers maintain stable yield and cost-effective mass production.

About Mingseal

Mingseal is an industry-leading manufacturer of precision dispensing equipment and automation solutions for advanced electronics, new energy, and semiconductor applications. With over a decade of R&D expertise, we help our partners worldwide achieve higher output, consistent quality, and flexible process control with reliable inline systems like the FS800 Series.
