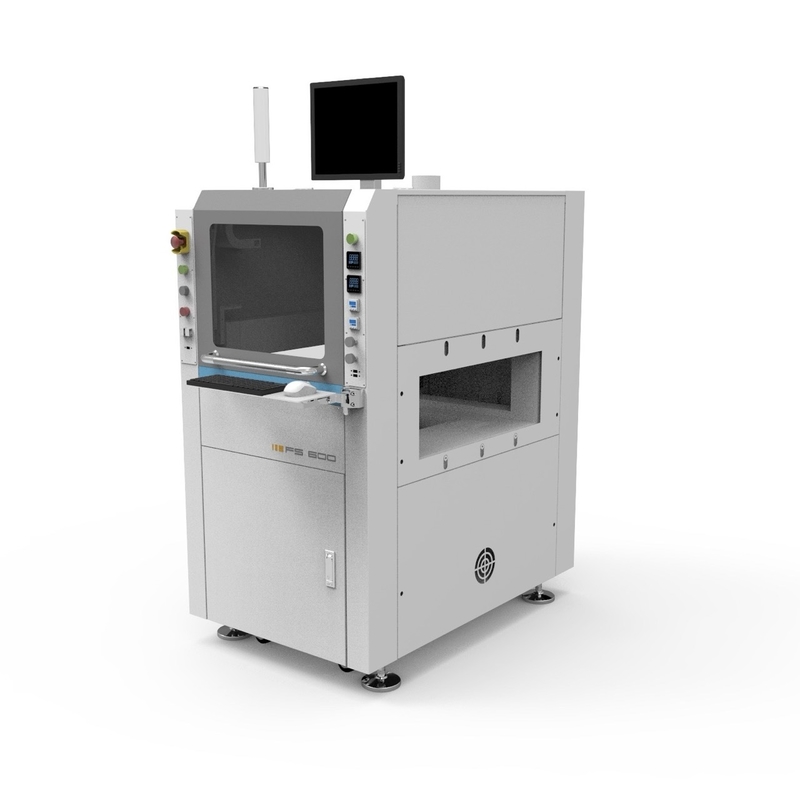

Cabinet Visual Inline Dispensing System for MEMS Chip Coating
The Mingseal Inline Dispensing Machine is purpose-built for the rigorous demands of modern MEMS manufacturing, where ultra-high precision, production stability, and mass production capacity are essential. This advanced dispensing platform is engineered with an integrated cast mineral frame that provides exceptional structural rigidity and vibration damping. This ensures minimal thermal deformation and outstanding stability even under long-term high-speed operation.
Designed to handle MEMS chip coating, solder paste painting, and other fine-pitch adhesive applications, this inline dispenser supports full-process inspection and multi-unit inline automation to seamlessly scale up production. Its dual-track configuration—with separate operation and transport rails—maximizes cycle time by allowing continuous substrate transfer while dispensing occurs in parallel.
Core Advantages
Supports multi-unit connection: Enabling multiple machines to work in sequence without interruption.
Full-Process Inline Inspection: Integrated inline AOI module for real-time glue path inspection.
Dual-Track, Continuous Operation: Allows for simultaneous loading/unloading and dispensing.
Technical Specifications
|
FS600M Online Visual Dispensing Machine |
||
|
Applicable Processes |
Coating, Solder Paste Painting, Potting, Reinforcement-gluing |
|
|
Motion System |
Transmission System |
X/Y: Linear motor Z: Servo motor&Screw module |
|
Max. Dispensing Range |
X*Y: 280*170mm (Single track) --with loaing & unloading |
|
|
X*Y: 360*520mm/ 360*215mm (Single/ Double track) -- w/o loading & unloading |
||
|
Effective travel |
X*Y: 380*610mm |
|
|
Repeatability (3 sigma) |
X/Y≤±10μm, Z≤±10μm |
|
|
Positioning Accuracy |
X/Y≤±15μm, Z≤±15μm |
|
|
Max. Speed |
X/Y: 1300mm/s, Z: 500mm/s |
|
|
Max. Acceleration |
X/Y: 1.3g, Z: 0.5g |
|
|
Correction System |
Visual Positioning Method |
Mark/ Product Appearance |
|
Fly-align Positioning |
max: 300m/s |
|
|
Laser Altimetry |
Measurement Range: ±5 mm, Repeatability Accuracy 1μm, Sampling Frequency: 2k |
|
|
Track System |
Number of Tracks |
Single track / Double tracks |
|
Track Parallelism |
Widest to Narrowest: < 0.1 mm |
|
|
Width Adjustment Range |
40-170mm |
|
|
Side Pushing Accuracy |
≤0.02mm |
|
Conclusion
If you are a MEMS sensor manufacturer or advanced packaging foundry seeking ultra-stable, high-speed inline dispensing with full-process inspection and scalable inline expansion, Mingseal’s Inline Dispensing Machine is your ideal solution.
Contact us to see how we can help you increase yield, shorten cycle time, and lower your total cost of ownership.
Q&A
Q1: How does the machine ensure long-term stable precision for MEMS applications?
A: The cast mineral composite structure significantly reduces vibrations and thermal expansion. Combined with high-precision linear motors and a closed-loop vision system, it maintains dot size consistency and glue path accuracy, which are critical for MEMS packages.
Q2: Can this system support full-process quality control?
A: Yes! The machine integrates inline AOI and optional weight monitoring. This ensures adhesive quantity, placement, and curing are all verified in real time—reducing rework and improving yields.
Q3: Is the dual-track system suitable for large-batch MEMS production?
A: Absolutely. The operation rail handles dispensing while the transport rail loads/unloads substrates simultaneously. This continuous flow greatly increases UPH and matches the high-volume output MEMS lines' demand.
