| Brand Name: | Mingseal |
| Model Number: | KPS4000 |
| MOQ: | 1 |
| Price: | $4500-$10000 / pcs |
| Delivery Time: | 5-60 Days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
Quick Detail:
● High-speed, non-contact dispensing valve for ultra-high viscosity fluids
● Supports real-time parameter switching and glue spraying pulse monitoring
● Compact wiring and modular design for easy integration and maintenance
● Ideal for precision applications using UV glue, PUR, and corrosive adhesives
● Advanced piezo jetting valve technology with closed-loop fault detection
Description:

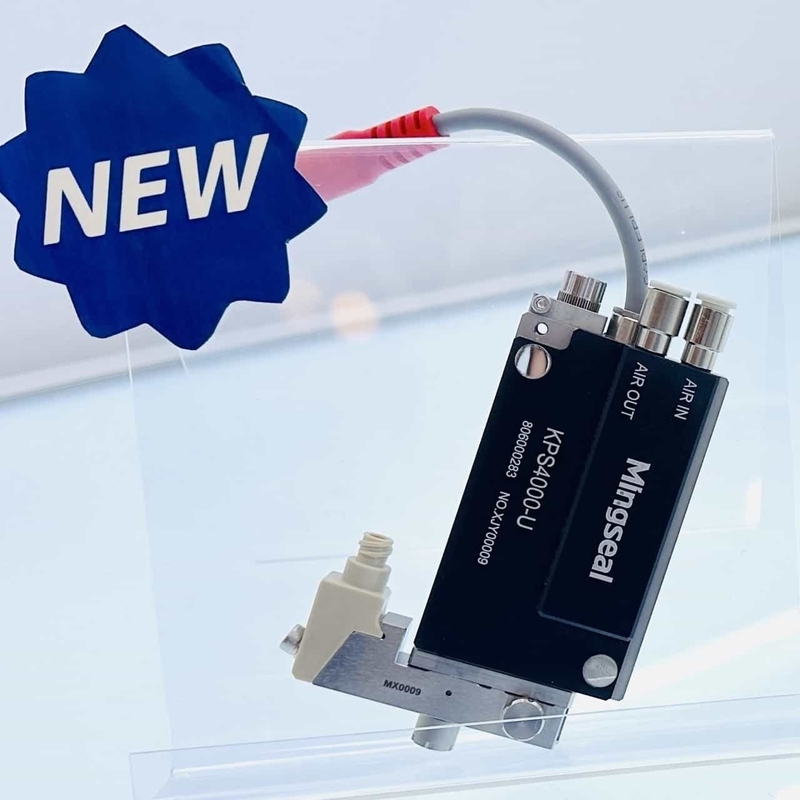

The KPS4000 Piezoelectric Jetting Valve is a next-generation non-contact dispense valve designed for high-speed, high-precision adhesive dispensing. It supports a wide range of fluid viscosities—from low to ultra-high viscosity—making it ideal for demanding applications in electronics, automotive, display, and other precision industries.
This jetting valve system features a modular structure with improved nozzle alignment and top calibration, enabling consistent spray quality and simplifying process maintenance. By eliminating traditional sealing seats and reducing consumables, KPS4000 helps lower operating costs while maintaining superior performance.
The controller offers real-time process parameter switching via IO, ultra-fast valve response times, and online glue pulse monitoring, ensuring reliable adhesive delivery without signal loss. It's closed-loop detection alerts users of cable faults or missed shots, while bilingual fault prompts enhance troubleshooting efficiency.
Applications:
✓ Precision Electronics
✓ Compact Camera Module (CCM)
✓ PCB / FPC
✓ VCM
✓ Micro vibration motor
✓ Micro speaker
✓ Medical device
Specifications:
|
KPS4000 Piezoelectric Jetting Valve |
|
|
Input air pressure |
0.1-8 bar |
|
Viscosity of media |
1-500000mPas |
|
Min. Glue dot diameter |
0.15mm (Depending on glue) |
|
Min. Glue width |
0.17mm (Depending on glue) |
|
Min. Dispensing amount |
0.5nl (CPK＞1.3) |
|
Continuous jetting frequency |
1200Hz |
|
Dimensions |
119*77*21mm (Included heating module) |
|
Weight |
405g (with fluid-box) |
